GLENSOUND GS-MPI005HD/REMD REMOTE CONTROL Desktop, for rack mount HD mobile phone

Stock code
Model number
GLENSOUND GS-MPI005HD/REMD REMOTE CONTROL Desktop, for rack mount HD mobile phone


Glensound HD Voice Broadcasters' Mobile Phones make it possible to use the 3G UMTS network as an audio link, with a bandwidth of up to 7kHz, for broadcast applications. The increased bandwidth is more suitable for live reporting applications as well as higher-quality IFB and talk back applications. Should a 3G network not be available, they will also act as a normal quad-band 2G GSM phone. They have balanced, line-level connections, with XLR connectors, for ease of interfacing to broadcast mixers, recorders, or computers. The portable version also has a dynamic microphone input. The phones connect as a voice call, so will have the same quality of service as a normal mobile phone call. The call quality will remain constant over the duration of the call regardless of the number of other mobile phones being used in the area. As a result, they are particularly suitable for reporting in highly-congested mobile phone areas such as football matches or concert venues.

The phones connect to 3G mobile phone services, as well as 2G. When connected to a 3G service offering 'HD voice', they provide a bandwidth of approximately 7kHz; a substantial increase in audio quality compared to a 2G or PSTN phone. However, in order to take advantage of the increased bandwidth, the call must be received by another 3G phone using 'HD voice'. Glensound 3G phones can be used to connect to PSTN or 2G phones, but in these cases the bandwidth increase is lost.

Glensound also offer 2G mobile phones. These connect to a mobile network and offer an audio bandwidth of approximately 3kHz. They can make a call to a another mobile phone or a PSTN phone number. With PSTN, the audio contribution can be accepted by an existing telephone hybrid, coupler or a phone-in system. Alternatively a Glensound portable or rack-mounting mobile phone can be used to receive the call, either at fixed premises, or on location, say in a outside broadcast vehicle. The 2G models are suitable for areas where 3G 'HD voice' services are simply not available, or it is not possible to have a 3G 'HD voice' phone at both ends of the connection, or simply that the enhanced audio quality is not required, perhaps for a cue feed.

In 3G UMTS mode, the standard version offers 900MHz, 1900MHz, and 2100MHz bands. An optional 3G UMTS version is available for compatibility in other parts of the world offering 850MHz, 1900MHz, and 2100MHz. In 2G GSM mode, they connect to any quad-band network at 850MHz, 900MHz, 1800MHz, and 1900MHZ for international compatibility. Audio bandwidth is 50Hz to 7kHz in 3G mode or 300Hz to 3.4kHz in 2G. Audio circuits are shielded from radio frequency interference, so the self generated RF will not interfere with the audio.

A large LED flashes and a sounder, which can be switched off, rings to indicate incoming calls; there is a variable auto answer. A nine-memory phone-book offers access to stored numbers and a redial button can be used to call the last-called number. A 6.35mm A/B gauge headphone socket is available for monitoring. The balanced, analogue, (XLR) audio inputs and outputs have separate controls for level adjustment. The aerial is connected by a standard SMA socket; different aerials may be connected. Power is supplied by 4x AA batteries in portable units, or, optionally, an external DC source. Rack mounting models mostly have an internal switch-mode supply, some are available as alternative models which accept DC power.

GS-MPI005HD - Rack mounting - Modular

This has a single GS-MPI005HD Broadcaster's Mobile Phone fitted in a 1U frame to fit a 19 inch rack. Two further GS-MPI005/EP phones may be fitted into the unused spaces covered by blank panels. The front panel of the GS-MPI005/EP has the same facilities as the GS-MPI004HD, except a jack socket is added for headphone monitoring. It has the dialling keypad with nine-number phone book and the slot for a SIM card. Two large square buttons are used to dial or hang-up a call, each with LED status indicators. Configurable auto answer may be selected. There are separate level controls for the input and output levels, +/- 10dB; a volume control sets the level for the A/B gauge 6.35mm jack socket for headphones of 200 - 2000 ohms impedance. An LED indicates that the compressor/limiter is active to aid setting the input level. A tri-colour LED indicates the signal strength. Advanced configuration allows setting of echo canceller, noise suppressor, peak compressor, and headphone audible alert.

The rear panel has an XLR connector for the balanced, analogue, audio input at a line-level of 0dBu. There is also an XLR for the analogue, balanced, output which has a maximum level of +13dBu. The aerial connector is an SMA type. There are two remote connection options: a B type USB for PC control, and a RJ45 for a CAT5 link to the GS-MPI005HD/REMD. An IEC inlet accepts power: 100V - 240V AC. RF power output: 2W. Dimensions: 482 x 44 x 258 (w x h x d) mm, 1U rack mounting. Weight: 1.74kg, as supplied, with one phone.

Included accessories: T-bar aerial, 2.5m cable.
Optional accessories: Mag-mount aerial, 3m cable. Up to two extra phones, GS-MPI005HD/EP. GS-MPI005HD/REMD desktop and GS-MPI005HD/REMS software remote control. N-Type aerial kit.

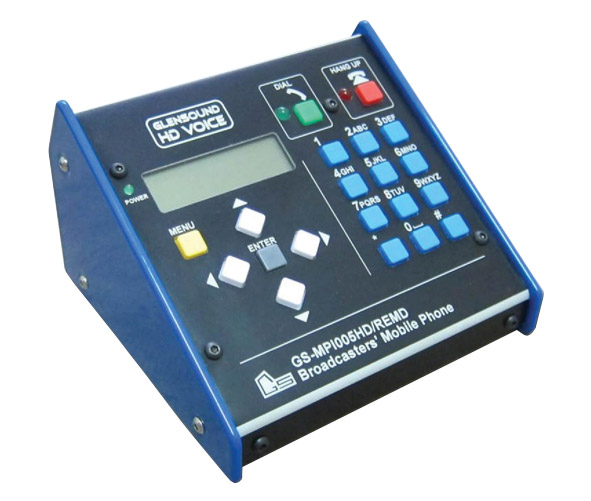

GS-MPI005HD/REMD - Desktop Remote Control - For GS-MPI005HD or GS-MPI007HD

This has a standard dialling keypad, with hang up and dial buttons and an LCD display. Information shown includes the number being dialled, caller display, call duration, signal strength, the connected network, the history of the last 8 calls and allows for storing and recalling 9 numbers, Advanced configuration allows setting of echo canceller, noise suppressor, peak compressor, configurable auto answer and headphone audible alert.

The rear panel has an RJ45 connector for connection to the GS-MPI005HD or the GS-MPI007HD, is using RS422 via a CAT5 cable. Power can be via the CAT5 connection or an external 5V DC USB supply. Dimensions: 123 x 79 x 120mm. Weight: 0.38kg.

Optional Accessories: 5V DC USB plug top power supply GS-USBPSU.

  Description Price £
ex. VAT
Add to basket
GLENSOUND GS-MPI004/PSU POWER SUPPLY For GS-MPI004 mobile phone, plug-top, UK Stock code: 28-7802
Please login for stock availability and lead times.
GLENSOUND GS-MPI005HD/REMD REMOTE CONTROL Desktop, for rack mount HD mobile phone Stock code: 28-7817
No longer manufactured. Please contact Technical Support for advice on alternatives.
GLENSOUND GS-MPIHD/ATN2 ANTENNA T-Bar, for 3G UMTS mobile phone, 2.5m cable Stock code: 28-7823
Please login for stock availability and lead times.
GLENSOUND GS-MPIHD/ATN3 ANTENNA Mag-mount, for mobile phone, 3m cable Stock code: 28-7832
Please login for stock availability and lead times.
