CANFORD KHJ CABLE 5 pair (BBC PIN10/3), Cream

Stock code
31-205
Brand
Canford
Model number
  • KHJ
Colour
  • CreamCream

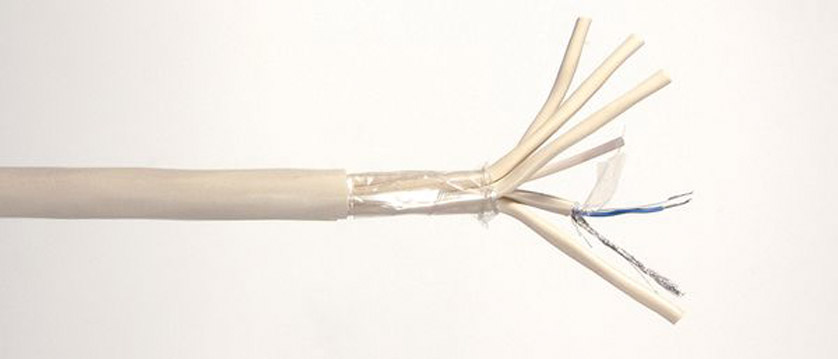

CANFORD KHJ CABLE 5 pair (BBC PIN10/3), Cream
CANFORD KHJ CABLE 5 pair (BBC PIN10/3), CreamCANFORD KHJ CABLE 5 pair (BBC PIN10/3), Cream

KHJ SERIES - HELICALLY SCREENED SOLID CONDUCTOR INDIVIDUALLY JACKETED CABLE (BBC types)

Solid conductor twisted pairs, individually screened and jacketed and covered in an overall sheath, to a BBC specification. Individual pairs are similar to KHT cables. Suitable for permanent installations where they will not be subject to regular flexing. Suitable for termination onto Krone frames, but if screens are to be terminated, they must be made off to a single wire. Available in 5 and 10 pair.

Technical Specification:
BBC specification: PIN10/3M (KHJ5), PIN20/3M (KHJ10)
Voltage rating: 1kV dc
Conductors: 1/0.5mm (0.2mm²) tinned copper wire
Current rating: 1A
Pair insulation: PVC, according to 'KHJ Cable Colour Codes'
Screen: 32/0.15mm, 95% coverage
Individual jacket: PVC
Overall jacket: PVC, cream, 9.8mm OD (KHJ5), 13.1mm (KHJ10)
Conductor resistance: 92.2 ohms/km
Weight: 11.5kg/100m (KHJ5), 20.7kg/100m (KHJ10)
Reel length: 100m, 500m
Cut lengths: Available in any multiple of 1 metre
