CANFORD RCM CABLE (BBC PSF1/6), Black

Stock code
36-290
Brand
Canford
Model number
  • RCM
GTIN
5056704721203
Colour
  • BlackBlack
CANFORD RCM CABLE (BBC PSF1/6), Black
CANFORD RCM CABLE (BBC PSF1/6), BlackCANFORD RCM CABLE (BBC PSF1/6), Black

Order

VAT / Delivery
$3.35
per metre (ex. VAT)
100+ $2.68
500+ $2.61
1,000+ $2.52
2703 in stock Need more?

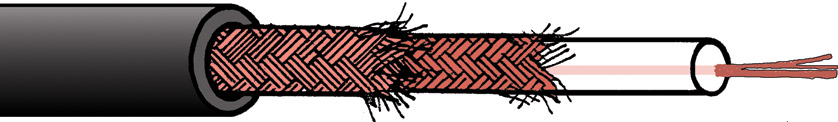

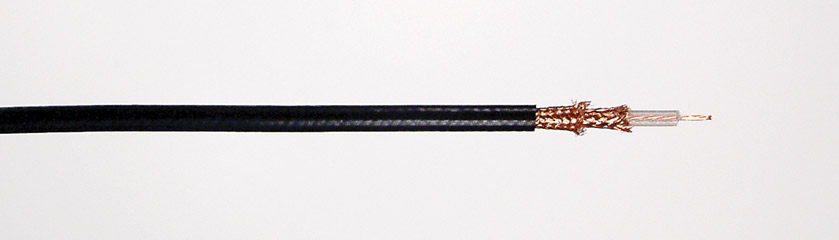

CANFORD RCM - RF/DATA CABLE 50 ohm miniature (BBC PSF1/6)

A high performance, miniature, 50 ohm double-screened coaxial cable, to a BBC specification for UHF and VHF applications.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: D
BBC specification: PSF1/6M
Centre conductor: 7/0.32mm tinned copper wire
Dielectric: Solid polyethylene, 2.95mm dia
Braid 1: 90% cover 0.1mm plain copper wire
Braid 2: 95% cover 0.1mm plain copper wire
Jacket: PVC, black, 5.0mm OD
Impedance: 50 ohms
Capacitance (nom): 100pF/m
Attenuation at 200MHz: 25dB/100m
Attenuation at 1GHz: 60dB/100m
Max. voltage (peak): 5.2kV pulse 2.6kV RF
Weight: 4.4kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable connectors outlined below.

BNC Connector 50 Ohm RF

Brand Code Description
Telegartner 48-706 TELEGARTNER BNC Male cable, crimp, 50 ohm, groups D/G/V
Coax Connectors 48-5131 COAX CONNS 10-005-A3-AH BNC Male cable, crimp, 50 ohm, groups D/G/V
Coax Connectors 48-5141 COAX CONNS 10-005-A3-AH BNC Male cable, crimp, 50 ohm, groups D/G/V (pack of 100)

BNC Female Panel 50 Ohm RF (Soldered)

Brand Code Description
Telegartner 48-743 TELEGARTNER BNC Female panel,solder, 50 ohm, insulated, all groups
