CANARE L-3D2W CABLE Grey (reel of 100m)

Stock code
36-932
Brand
Canare
Model number
  • L-3D2W
Colour
  • GreyGrey
CANARE L-3D2W CABLE Grey (reel of 100m)
CANARE L-3D2W CABLE Grey (reel of 100m)

Order

/
£296.70
per reel (ex. VAT)
5+ £284.80
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us

CANARE L-3D RF COAX CABLE

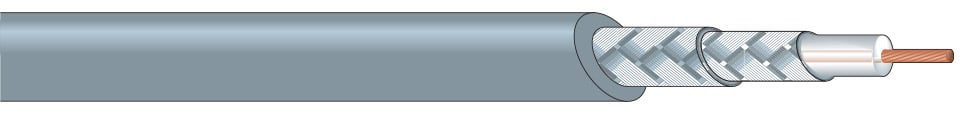

A 50 ohm flexible and lightweight rugged coaxial cable, suitable for professional radio frequency and telecommunication applications. Solid polyethylene insulation reduces signal loss and provides stability while protecting against external interference. Recommended for environments with high interference, built in shielding protects the signal from electromagnetic and radio frequency interference. A copper conductor ensures optimal signal transmission for long lasting installations. Semi-matt non reflective PVC Jacket. Equipped with a tinned copper braid shield, for structural stability. W models also have an secondary tinned copper braided shield.

Technical Specification:
L-3D2V L-3D2W
Cable Size Group Not in Canford scheme Not in Canford scheme
Centre Wire 0.96mm 0.96mm
Dielectric Solid Polyethylene, 3.0mm Solid Polyethylene, 3.0mm
Screen 1 Tinned Copper Braid Tinned Copper Braid
Screen 2 - Tinned Copper Braid
Jacket Rugged PVC, 5.3mm Rugged PVC, 6.4mm
Nominal Impedance 50ohms 50ohms
Capacitance (nom.) 100pF/m 100pF/m
Velocity Ratio (nom.) 0.66 0.66
Weight/100m 4.5kg 7.3kg
Reel Length 100m 100m
Cut Lengths Not Available Not Available

Attenuation:

(dB/100m +/- 0.1dB) 10MHz 130MHz 600MHz 800MHz 1575MHz 2.6GHz 6GHz
L-3D2V 4.5 17.3 40.7 48.2 72.5 99.3 172.9
L-3D2W 4.5 17.3 40.7 48.2 72.5 99.3 172.9
