NEUTRIK POWERCON TRUE1 AC MAINS POWER CONNECTORS - 16 Amp
The Powercon True1 is a 16 Amp mains connector, offering secure locking and robust construction, with breaking capacity (CBC). This enables it to be connected or disconnected under load.
The cable connectors have screw-terminal connections, large latch-release button and the proven Neutrik cable gland retention. They accept cables 6mm - 12mm diameter, with wire sizes 1.0 - 2.5 mm.sq.
The NAC3MPX-W power inlet has the standard Neutrik 'D' series housing dimensions; the NAC3FPX-W power outlet uses a larger housing. The inlet is supplied with 6.3mm spade terminals, the outlet is available with 6.3mm spade terminals or screw terminals.

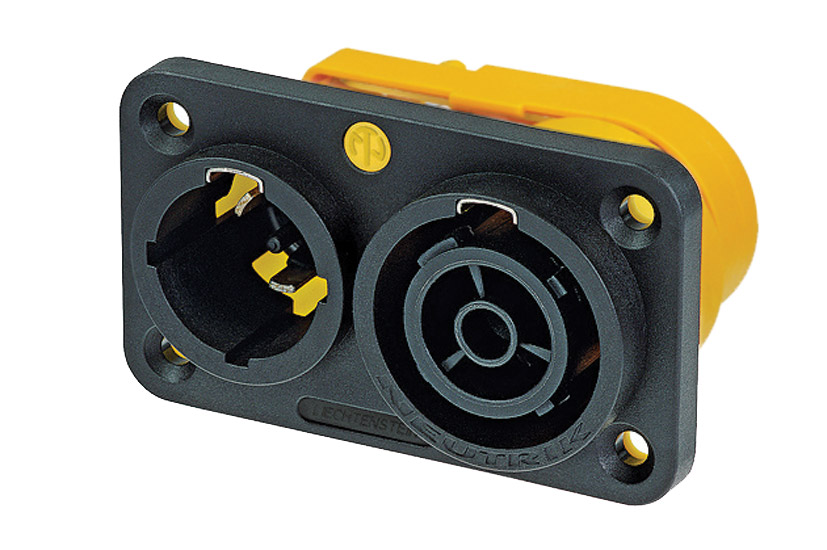

The NAC3PX-W is a dual, panel connector, with inlet and outlet in the same unit.
Moulded covers offering protection to IP65 are offered for all panel connectors, these mount under the flange and have an attached cover.
