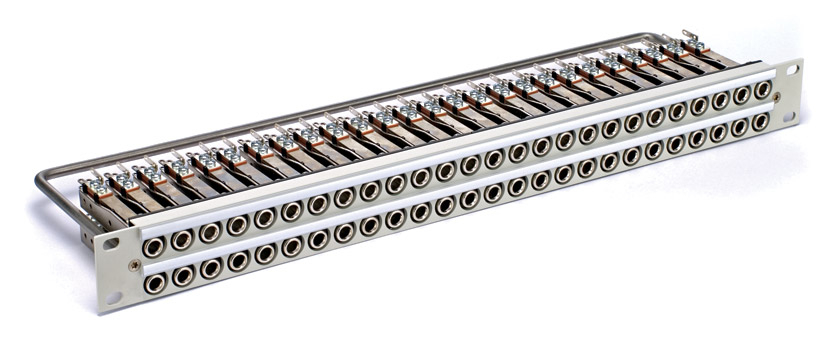

Constructed from a rigid 1U aluminium extrusion with dawn grey, dark grey or black powder coated finish, these two-row jackfields allow a consistent 'Broadcast style' finish to patching and termination panel areas within an installation.

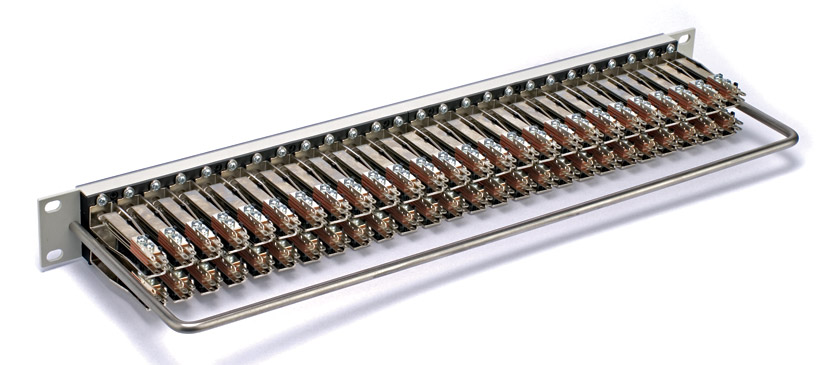

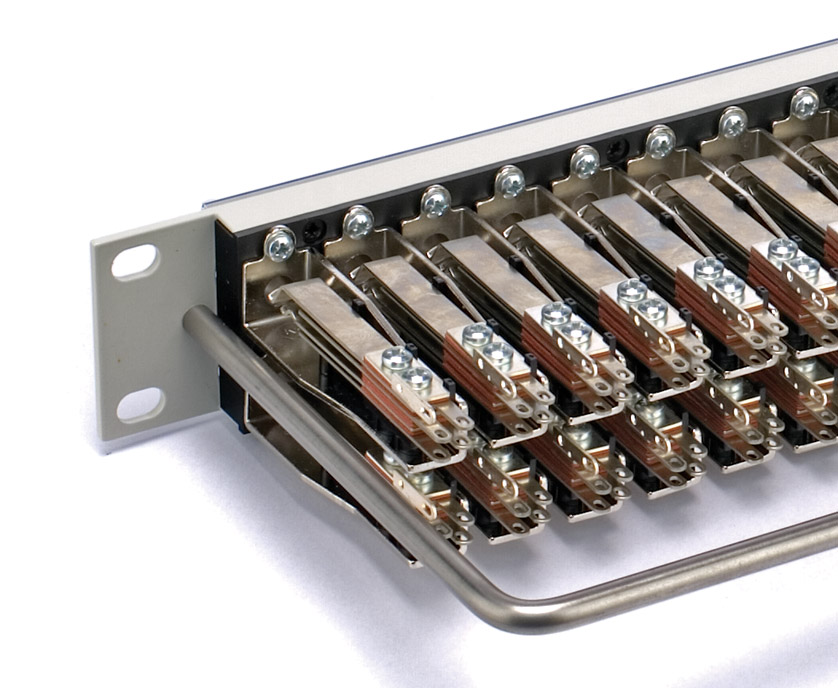

Two-row, high density jackfields are available with 20, 24 or 26, B-gauge (Neutrik) 6.35mm, long-frame jacks per row, set at 'mono-pitch' in a 1U panel. Jacks are 5-point, palladium-contact type with a heavy-duty nickel-plated frame and front ring, to ensure a long and reliable operational life. Cranked earth-tags on jacks allow bus earthing. Supplied complete with a single, central lacing-bar and a snap-on cover designation strip for each row of jacks. Overall depth 115mm.
Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. 5mm of printable height is available on each designation strip.
Other colours are available to special order, minimum order quantities may apply. Please contact Sales for details.
Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.
Manufactured by Canford.
