CANFORD BNC SD AES VERY HIGH DENSITY TERMINATION PANEL 1U 2x20 BNC 75 ohm, grey

Digital Video/Unbalanced 75 ohm AES/EBU Audio

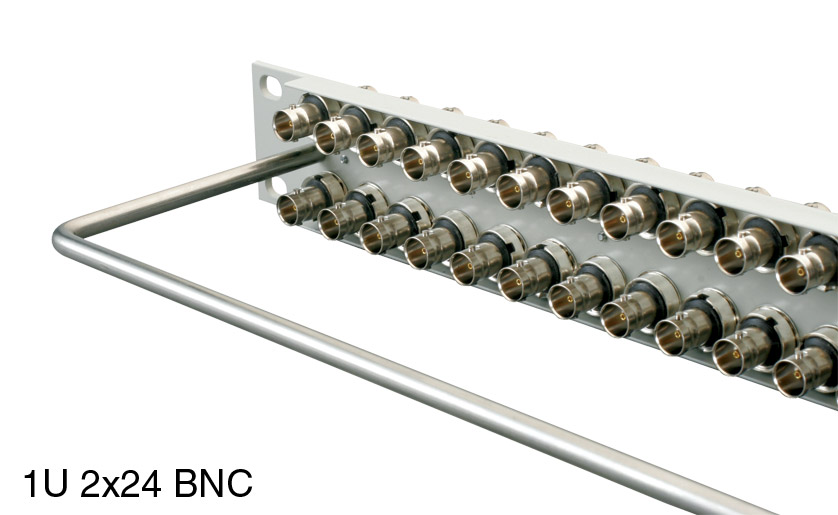

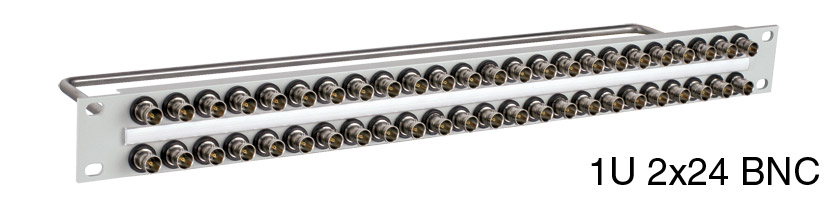

A range of 1U video termination panels supplied fully populated with up to 24 pairs of Canford insulated, double-sided, 75 ohm BNC connectors, suitable for analogue video, SDV and unbalanced AES/EBU digital audio applications. Connectors are equally spaced across the panel and achieve the highest possible packing density offering a solution where rack space is severely limited.
It is recommended that the BNC 'precision' 75 ohm type is used for HDTV applications.

Manufactured from a lightweight but extremely rigid aluminium extrusion, the connectors are equally spaced across the panel. The very high connector density of these panels means only a single centrally-mounted lacing-bar and single snap-on cover designation-strip holder (located centrally) are fitted. However, 7.5mm of printable height is available, sufficient for two rows of text. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.

Available finished in Dawn Grey (BS4800-10A03.) Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Due to the very narrow vertical and horizontal pitch, it may be necessary to use a BNC fitting tool to mate cable connectors, see BNC fitting tools.

Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.

Manufactured by Canford.
