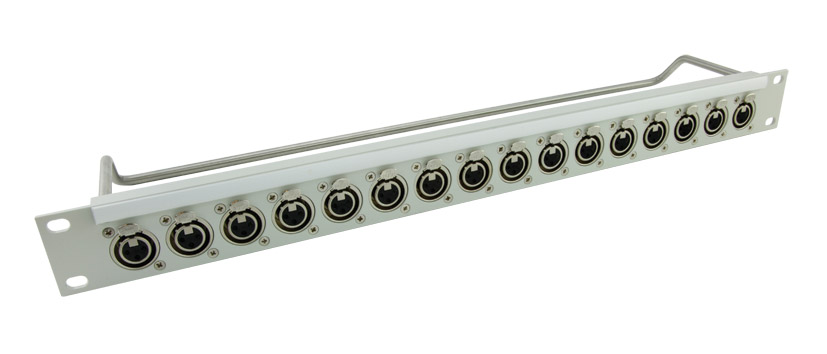

CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRF, grey

Stock code
45-3300
Brand
Canford
Colour
  • GreyGrey
CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRF, grey
CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRF, greyCANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRF, grey

CANFORD XLR TERMINATION PANELS - Flat and Angled, Canford and Neutrik XLR connectors

A range of flat and angled audio termination panels supplied fully populated with Neutrik ‘D’ series XLR connectors. Nine combinations of 3-pin XLR male and latching female connectors are available as standard. All have nickel-plated shells and silver-plated contacts and are mounted from the rear of the panel.

Flat Panels

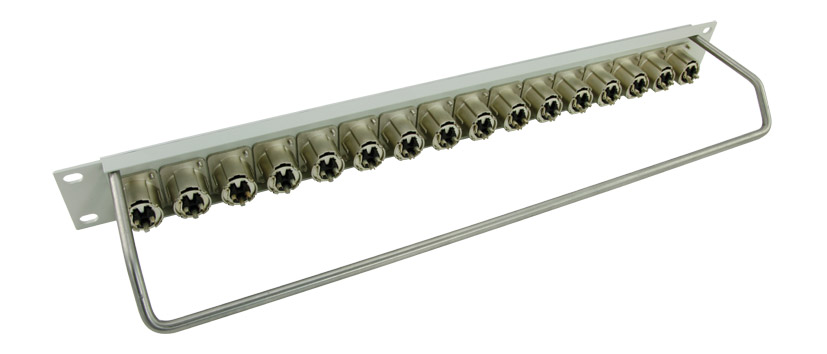

Manufactured from a rigid aluminium extrusion, available in 1U, 2U and 3U combinations, these panels are both lightweight and extremely rigid. Panels are fitted with a cranked lacing-bar for each row of connectors giving easy access to the rear of the connectors.

Angled Panels

Manufactured from a unique profile aluminium-extrusion with integral rear bracing-bar. The front face of the panel is angled down by 7.5 degrees from vertical, relieving stress on mated cables and maintaining clear access at the rear. These 2U panels offer the highest possible packing density and are both lightweight and extremely rigid. Panels are fitted with a short, cranked, lacing-bar, extending only 65mm from the rear of the panel to allow for tight cable routing.

A snap-on cover designation-strip holder is fitted above each connector row to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see Designation strips - snap on.

Available finished in Dawn Grey (BS4800-10A03) or Black.

Optional accessories: Recess rack-mounting brackets are available to recess panels within the rack, see Canford Rackbracket - Recess mounting brackets.

Custom Layouts

Custom connector populations and layouts, as well as engraving and screen printing are available to special order. For further information or a quotation please contact the custom metalwork team via email, custommetal@canford.co.uk. Alternatively contact Sales. A minimum quantity or charge may apply.

  Description Price £
ex. VAT
Add to basket
Delivery
CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRF, grey Grey Stock code: 45-3300
Please login for stock availability and lead times.
1+ £91.87
5+ £88.20
CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRM, grey Grey Stock code: 45-3302
Please login for stock availability and lead times.
1+ £86.93
5+ £83.45
CANFORD XLR TERMINATION PANEL 2U 2x16 Neutrik XLRF, grey Grey Stock code: 45-3304
Please login for stock availability and lead times.
1+ £170.00
5+ £163.20
CANFORD XLR TERMINATION PANEL 2U 2x16 Neutrik XLRM, grey Grey Stock code: 45-3306
Please login for stock availability and lead times.
1+ £160.10
5+ £153.70
CANFORD XLR TERMINATION PANEL 2U 1x16 Neutrik XLRF (top), 1x16 Neutrik XLRM (bottom), grey Grey Stock code: 45-3308
Please login for stock availability and lead times.
1+ £165.00
5+ £158.40
CANFORD XLR TERMINATION PANEL 2U 1x16 Neutrik XLRM (top), 1x16 Neutrik XLRF (bottom), grey Grey Stock code: 45-3322
Please login for stock availability and lead times.
1+ £165.00
5+ £158.40
CANFORD XLR TERMINATION PANEL 3U 3x16 Neutrik XLRF, grey Grey Stock code: 45-3310
Please login for stock availability and lead times.
1+ £249.60
5+ £239.60
CANFORD XLR TERMINATION PANEL 3U 3x16 Neutrik XLRM, grey Grey Stock code: 45-3312
Please login for stock availability and lead times.
1+ £234.70
5+ £225.30
CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRF, black Black Stock code: 45-3301
Please login for stock availability and lead times.
1+ £91.87
5+ £88.20
CANFORD XLR TERMINATION PANEL 1U 1x16 Neutrik XLRM, black Black Stock code: 45-3303
Please login for stock availability and lead times.
1+ £86.93
5+ £83.45
CANFORD XLR TERMINATION PANEL 2U 2x16 Neutrik XLRF, black Black Stock code: 45-3305
Please login for stock availability and lead times.
1+ £170.00
5+ £163.20
CANFORD XLR TERMINATION PANEL 2U 2x16 Neutrik XLRM, black Black Stock code: 45-3307
Please login for stock availability and lead times.
1+ £160.10
5+ £153.70
CANFORD XLR TERMINATION PANEL 2U 1x16 Neutrik XLRF (top), 1x16 Neutrik XLRM (bottom), black Black Stock code: 45-3309
Please login for stock availability and lead times.
1+ £165.00
5+ £158.40
CANFORD XLR TERMINATION PANEL 2U 1x16 Neutrik XLRM (top), 1x16 Neutrik XLRF (bottom), black Black Stock code: 45-3323
Please login for stock availability and lead times.
1+ £165.00
5+ £158.40
CANFORD XLR TERMINATION PANEL 3U 3x16 Neutrik XLRF, black Black Stock code: 45-3311
Please login for stock availability and lead times.
1+ £249.60
5+ £239.60
CANFORD XLR TERMINATION PANEL 3U 3x16 Neutrik XLRM, black Black Stock code: 45-3313
Please login for stock availability and lead times.
1+ £234.70
5+ £225.30
CANFORD XLR TERMINATION PANEL 1U 1x8 Neutrik XLRF (left), 1x8 Neutrik XLRM (right), grey Grey Stock code: 45-3320
Please login for stock availability and lead times.
1+ £89.40
5+ £85.82
CANFORD XLR TERMINATION PANEL 1U 1x8 Neutrik XLRF (left), 1x8 Neutrik XLRM (right), black Black Stock code: 45-3321
Please login for stock availability and lead times.
1+ £89.40
5+ £85.82
CANFORD XLR TERMINATION PANEL 1U 1x8 Neutrik XLRM (left), 1x8 Neutrik XLRF (right), grey Grey Stock code: 45-3324
Please login for stock availability and lead times.
1+ £89.40
5+ £85.82
CANFORD XLR TERMINATION PANEL 1U 1x8 Neutrik XLRM (left), 1x8 Neutrik XLRF (right), black Black Stock code: 45-3325
Please login for stock availability and lead times.
1+ £89.40
5+ £85.82
CANFORD XLR TERMINATION PANEL 2U Angled 2x16 Neutrik XLRF, grey Grey Stock code: 45-3314
Please login for stock availability and lead times.
1+ £209.10
5+ £200.80
CANFORD XLR TERMINATION PANEL 2U Angled 2x16 Neutrik XLRM, grey Grey Stock code: 45-3316
Please login for stock availability and lead times.
1+ £198.30
5+ £190.30
CANFORD XLR TERMINATION PANEL 2U Angled 1x16 Neutrik XLRF (top), 1x16 Neutrik XLRM (bottom), grey Grey Stock code: 45-3318
Please login for stock availability and lead times.
1+ £203.70
5+ £195.50
CANFORD XLR TERMINATION PANEL 2U Angled 2x16 Neutrik XLRF, black Black Stock code: 45-3315
Please login for stock availability and lead times.
1+ £209.10
5+ £200.80
CANFORD XLR TERMINATION PANEL 2U Angled 2x16 Neutrik XLRM, black Black Stock code: 45-3317
Please login for stock availability and lead times.
1+ £198.30
5+ £190.30
CANFORD XLR TERMINATION PANEL 2U Angled 1x16 Neutrik XLRF (top), 1x16 Neutrik XLRM (bottom), black Black Stock code: 45-3319
Please login for stock availability and lead times.
1+ £203.70
5+ £195.50
