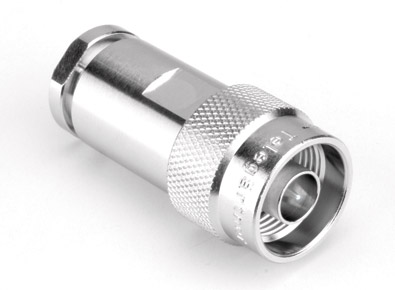

TELEGARTNER J01020I1070 N TYPE CONNECTOR Male cable, solder, group C

Stock code
48-801
Brand
Telegartner
TELEGARTNER J01020I1070 N TYPE CONNECTOR Male cable, solder, group C
TELEGARTNER J01020I1070 N TYPE CONNECTOR Male cable, solder, group C

TELEGARTNER N TYPE CONNECTORS - Male and female, cable - Solder

50 ohm connectors for RF applications, typically used for antenna feed connections. Threaded connector bodies for mating retention. Frequency range DC-11GHz. Rated 500 mating cycles. Contact resistance 1.5mΩ max., insulation resistance 5GΩ min. VSWR 1.05 nom. up to 4GHz. A cap and chain is also available to protect the thread and contacts on the female connector.

Suitable cables are RCH (BBC PSF1/4), URM67, RG213 and RG214.

Male and female cable types

Solder types, have a compression gland with a hex nut fixing.
