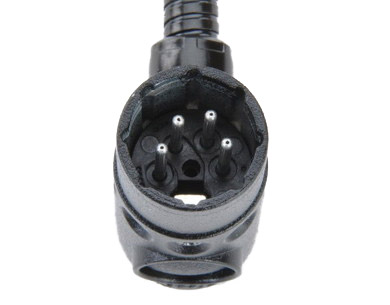

LITTLITE 12XR-4-LED GOOSENECK LAMP 12-inch, LED array, 4-pin right-angled XLR

Stock code
51-6678
Brand
Littlite
Model number
  • 12XR-4-LED
LITTLITE 12XR-4-LED GOOSENECK LAMP 12-inch, LED array, 4-pin right-angled XLR

Image may be provided for illustrative purposes only, please refer to the product description.

LITTLITE 12XR-4-LED GOOSENECK LAMP 12-inch, LED array, 4-pin right-angled XLRLITTLITE 12XR-4-LED GOOSENECK LAMP 12-inch, LED array, 4-pin right-angled XLR

LITTLITE GOOSENECK LAMPS - LED - Bare

These Littlite gooseneck light fittings offer a choice of connectors or threaded male stud, gooseneck lengths and light sources. They are primarily designed for use with mixing consoles, to provide localised illumination in theatre, TV, studio and concert environments.

Gooseneck lengths are a choice of 153, 305 and 457mm (6, 12 and 18 inches), light sources are energy-efficient LED, with certain LED models being able to switch from white to red colour output.

Individual task lights are terminated with various connections compatible with all major sound and lighting consoles fitted with a dedicated light connector.

Feature matrix:
Gooseneck connector LED colour output (3)
P series: None, 3/8 thread (1) White/red
G series: BNC White only
T series: TNC White only
X series: XLR 3-pin, male, straight(2) White only
X-4 series: XLR 4-pin, male, straight(2) White/red
XR series: XLR 3-pin, male, 90 degrees (2) White only
XR-4 series: XLR 4-pin, male, 90 degrees (2) White/red

Notes: (1) With fixing hardware for panels up to 3.2mm thickness. (2) Pin inserts of XLR connector can be rotated, adjusting position of light. (3) May be switched externally.

Lamp details:

LED array: 1.5W nominal; 150mA at 12V. Light output: 398 Lux, at 305mm. Colour temperature: 4000K. CRI (Colour rendering) 85RA.

Ordering note:

These lamp sets may, of course, be fitted by the user to equipment where no connector or power supply is available. See Littlite Gooseneck Lamps - Power supplies, adapter leads for useful items.
