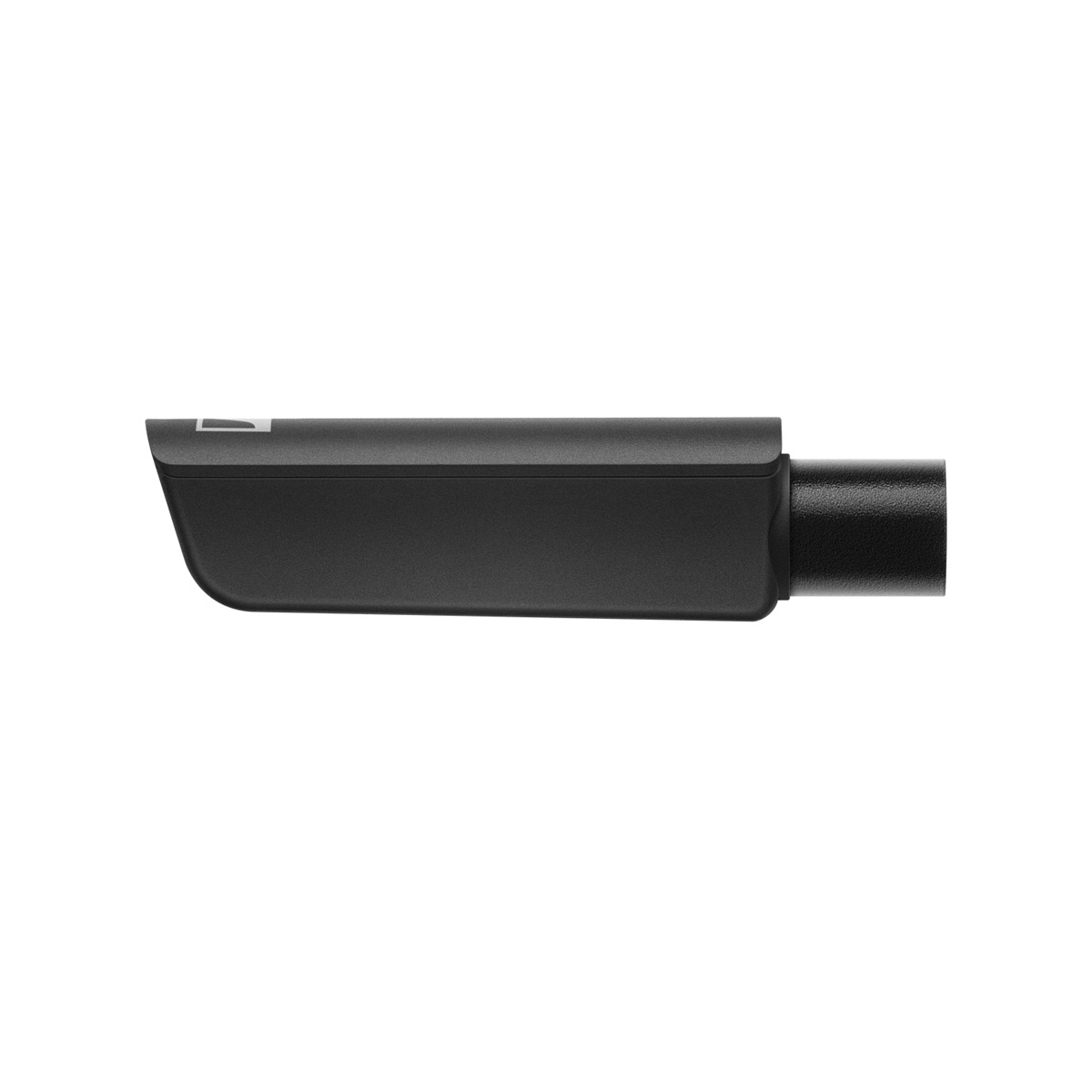

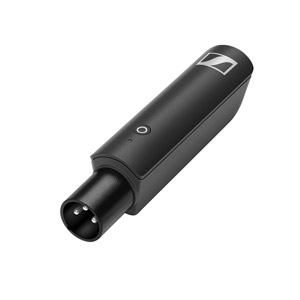

SENNHEISER XSW-D XLR MALE RX RADIOMIC RECEIVER Digital, 3-pin male XLR, 2.4GHz

Stock code
74-4584
Brand
Sennheiser
Model number
  • 508497
  • XSW-D XLR MALE RX
SENNHEISER XSW-D XLR MALE RX RADIOMIC RECEIVER Digital, 3-pin male XLR, 2.4GHz
SENNHEISER XS Wireless Digital - Range - How far will it go?SENNHEISER XSW-D XLR MALE RX RADIOMIC RECEIVER Digital, 3-pin male XLR, 2.4GHzSENNHEISER XSW-D XLR MALE RX RADIOMIC RECEIVER Digital, 3-pin male XLR, 2.4GHzSENNHEISER XSW-D XLR MALE RX RADIOMIC RECEIVER Digital, 3-pin male XLR, 2.4GHz

SENNHEISER RADIOMICS - XSW-D Wireless Digital series

The Sennheiser XS Wireless Digital series includes ‘plug and play’ wireless transmitters and receivers that operate on the 2.4GHz spectrum for licence-free use. These compact plug-on style units include connection types of 3-pin XLR, 6.3mm jack, or 3.5mm jack and have been designed for uses including vlogging, social rooms, and educational placement.

Multiple transmitters can be linked to a single receiver although only one can be used at any point in time. A mute function can be applied from either transmitting or receiving device. The 3.7V, 850mAh lithium-ion battery provides up to 5 hours of operational run time from a typical 3 hour charge, whilst up to five channels, which are automatically adjusted, can be simultaneously used. Under optimal conditions a 75m range can be achieved.


XSW-D XLR BASE SET

Includes XSW-D female XLR transmitter, XSW-D male XLR receiver, USB-A to USB-C charging cable.


XSW-D VOCAL SET

Includes XSW-D female XLR transmitter, XSW-D male XLR receiver, XS1 cardioid dynamic mic, Mic clip, USB-A to USB-C charging cable.


XSW-D PRESENTATION BASE SET

Includes XSW-D 3.5mm jack transmitter, XSW-D male XLR receiver, Belt clip, USB-A to USB-C charging cable.


XSW-D LAVALIER SET

Includes XSW-D 3.5mm jack transmitter, XSW-D male XLR receiver, ME2-II lavalier mic, Belt clip, USB-A to USB-C charging cable.


XSW-D INSTRUMENT BASE SET

Includes XSW-D 6.3mm jack transmitter, XSW-D 6.3mm jack receiver, 6.3mm jack extension cable, Belt clip, USB-A to USB-C charging cable.


XSW-D PORTABLE BASE SET

Discontinued

Includes XSW-D 3.5mm jack transmitter, XSW-D 3.5mm jack receiver, 3.5mm coiled cable, Belt clip, Cold shoe mount, USB-A to USB-C charging cable.


XSW-D PORTABLE LAVALIER SET

Discontinued

Includes XSW-D 3.5mm jack transmitter, XSW-D 3.5mm jack receiver, ME2-II lavalier mic, 3.5mm coiled cable, Belt clip, Cold shoe mount, USB-A to USB-C charging cable.


XSW-D PORTABLE INTERVIEW SET

Discontinued

Includes XSW-D female XLR transmitter, XSW-D 3.5mm jack receiver, 3.5mm coiled cable, Cold shoe mount, USB-A to USB-C charging cable.


XSW-D PORTABLE ENG SET

Discontinued

Includes XSW-D 3.5mm jack transmitter, XSW-D female XLR transmitter, XSW-D 3.5mm jack receiver, ME2-II lavalier mic, 3.5mm coiled cable, Cold shoe mount, USB-A to USB-C charging cable.


XSW-D XLR FEMALE TX, XSW-D XLR MALE RX

Frequency response: 80-18,000Hz. Dimensions: 102 x 24 x 28mm.


XSW-D MINI JACK TX, XSW-D MINI JACK RX

Frequency response: 80-18,000Hz. Dimensions: 86 x 24 x 28mm.


XSW-D INSTRUMENT TX, XSW-D INSTRUMENT RX

Frequency response: 10-18,000Hz. Dimensions: 122 x 24 x 28mm.

Common specifications

Audio output: 12dBu maximum. Signal to noise ratio: Greater or equal to 106dB. Harmonic distortion: less than 0.1%. Latency: Less than 4ms. Frequency range: 2.400-2.483.5MHz. Transmission power (EIRP): 10mW maximum. Modulation: GFSK with TDMA.
