Trantec

74-5583

TRANTEC S4.04-HD-EB GD5 RADIOMIC SYSTEM Handheld, fixed Rx, cardioid, 4ch, 863-865Mhz, Ch 70 ready

TRANTEC S4.04-HD-EB GD5 RADIOMIC SYSTEM Handheld, fixed Rx, cardioid, 4ch, 863-865Mhz, Ch 70 ready

TRANTEC RADIO MICROPHONES - 4 Channel - UHF - S4.04 Series

The S4.04 UHF range may be switched between four frequency channels, and may be used license-free in the UK on channel 70. Systems are available with belt-pack or handheld transmitters. Beltpacks can be switched for use with a microphone or musical instrument, and are available with lapel or aerobics headband microphone. Handheld transmitters have dynamic capsules.

Since only four frequencies are available for use, only four S4.04 series transmitters can be used at once (if all are programmed to the same four frequencies) so the S4.04 range is appropriate for a site with up to four systems in use at one time or for where the likelihood of other users trying to use the same frequencies is considered acceptable.

S4.04-RX-EB GD5 Receiver

Although the most inexpensive model in the Trantec range, with basic features, this is a diversity type, which compares automatically the signal between two antennae and chooses the strongest signal as the transmitter is moved about. It uses phase lock loop (PLL) quartz-controlled tuning for stability, and has both unbalanced and professional balanced audio outputs.

On the front are LEDs to show selected channel, audio peak overload, and which of the two diversity channels are currently providing the signal. Channel set, sync, and power buttons are easily accessible on the front. Two non-detachable antenna may be swivelled for optimum positioning. On the rear there is a co-axial DC power input, a balanced XLR connection and an unbalanced 6.35mm jack output.

Audio frequency response: Limited by transmitter type, see below. Sensitivity: 10uV at 45dBa S/N. Audio output: -20dBu, balanced XLR, 10dBu unbalanced 6.3mm jack. Power source: 12V, 500mA. Dimensions: 215 x 39 x 102 (w x h x d)mm. Weight: 480g.

Included accessories: Instructions, AC power adapter with UK plug (not supplied with standalone receiver - supplied with receiver in system package format only).

S4.04-HDX-EBWD5 Handheld Transmitter

Fitted with a cardioid dynamic head with basket windshield, this resin coated transmitter can be used on any of four pre-programmed frequencies. A collar rotates and a sleeve slides back to reveal a battery compartment, infrared port, channel LED display, and a switch to set frequency. On the end of the body is fixed antenna with on-off power switch.

Audio frequency response: 80Hz-15kHz. Audio input level: 140dB SPL maximum. Poer output: 10mW maximum. Operating time: 10 hours approximately using an alkaline battery. Power source: 1x AA 1.5V battery. Dimensions: 250 x 55 (length x maximum diameter over head)mm. Weight: 245g with battery.

Included accessories: Instructions.
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack.

S4.04-BTX-EBWD5 Beltpack Transmitter - Without microphone

A pocket transmitter, which may be clipped to clothing with its belt-clip, this operates on four pre-programmed frequencies. The plastic body has a sliding panel which reveals a battery compartment, controls to set frequency, gain and select either microphone or guitar input. On the top there is an on/off switch and power/battery LED. A screw-in antenna and a 3.5mm input jack with screw-locking facility are also situated on the top of the transmitter pack.

Audio frequency response: 50Hz-15kHz. Power output: 10mW maximum. Operating time: 10 hours approximately using an alkaline battery. Power source: 1x AA 1.5V battery. Dimensions: 62 x 100 x 25 (w x h x d)mm, including belt clip. Weight: 85g with battery.

Included accessories: Instructions, antenna.
Optional accessories: Microphones, see Trantec Miniature Microphones and see Trantec Headworn Microphones. SJ-JAC guitar lead with 3.5mm screw jack and 6.35mm jack for instrument, 1100mm. Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack.

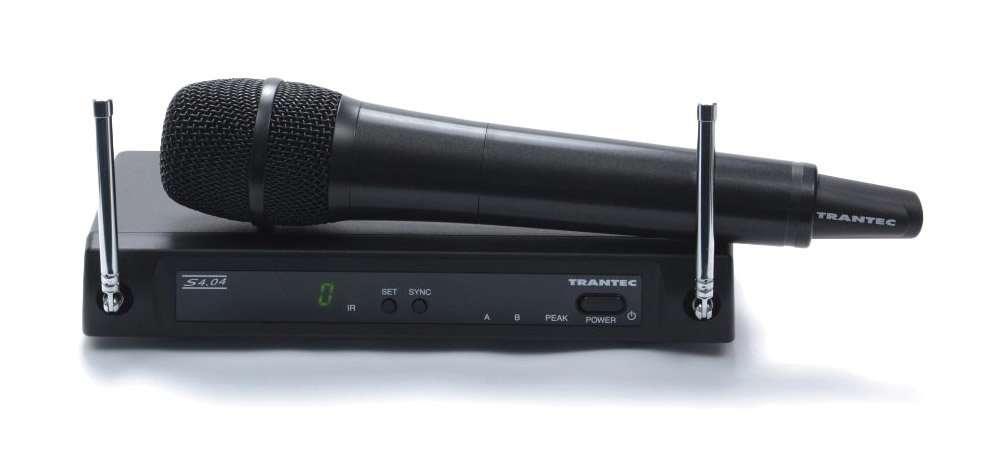

S4.04-HD-EB GD5 Handheld System - Dynamic capsule

A complete kit, ready for use, pre-programmed to use the standard UK Channel 70 frequencies (see above). It comprises one S4.04-RX-EB GD5 receiver with power adapter, one S4.04-HDX-EBWD5 handheld transmitter with antenna and stand adapter.

Included accessories: Instructions.
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack. Case A is a carrying case with precut foam, to take either a handheld or beltpack system.

S4.04-L-EB GD5 Lapel System - With LP2 miniature microphone

A comprehensive kit, ready for use, pre-programmed to use the standard UK Channel 70 frequencies (see above). It consists of one S4.04-RX-EB GD5 receiver with power adapter, one S4.04-BTX-EBWD5 belt pack transmitter with antenna, LP2 miniature microphone, tie-clip, and foam windshield.

Included accessories: Instructions
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack. Case A is a carrying case with precut foam, to take either a handheld or beltpack system.

S4.04-B-EB GD5 Beltpack System - Without microphone

A comprehensive kit, ready for use, pre-programmed to use the standard UK Channel 70 frequencies (see above). It consists of one S4.04-RX-EB GD5 receiver with power adapter, and one S4.04-BTX-EBWD5 belt pack transmitter with antenna.

Included accessories: Instructions
Optional accessories: Microphones, see Trantec Miniature Microphones and see Trantec Headworn Microphones. SJ-JAC guitar lead with 3.5mm screw jack and 6.35mm jack for instrument, 1100mm. Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack.

S4.04-W-EB GD5 Headset System - Aerobics - With SJ66 headband microphone and belt

This kit is similar to the lapel system, but substitutes a super cardioid, electret, head-worn sweat resistant microphone for the LP2 miniature type to complete a system designed for aerobic use. It includes one S4.04-RX-EB GD5 receiver with power adapter, one S4.04-BTX-EBWD5 belt pack transmitter with antenna, SJ66 microphone and foam windshield. One AB1000 neoprene belt to hold the belt-pack is also included.

Included accessories: Instructions.
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack. Case A is a carrying case with precut foam, to take either a handheld or beltpack system.

S4.04-A-EB GD5 Headset System - General purpose - With SJ33 head-worn microphone

This has an omni-directional head-worn microphone for general purpose use in applications such as sports, journalism and event organisation. It includes one S4.04-RX EB-GD5 receiver with power adapter, one S4.04-BTX-EBWD5 belt pack transmitter with antenna, SJ33 microphone and foam windshield.

Included accessories: Instructions.
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack. Case A is a carrying case with precut foam, to take either a handheld or beltpack system.

S4.04-T-EB-GD5 Headset System - Theatre - With SJ22 microphone

This has a theatre style headset, 'one of the smallest and lightest headband microphones available', worn around the head and may be hidden discreetly under the hair The system includes one S4.04-RX-EB GD5 receiver with power adapter, one S4.04-BTX-EBWD5 belt pack transmitter with antenna, and SJ22 microphone.

Included accessories: Instructions.
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack. Case A is a carrying case with precut foam, to take either a handheld or beltpack system.

S4.04-E-EB-GD5 Earworn System - With SJEM77 microphone

This has an omni-directional, back electret condenser, ear-worn microphone. Designed for theatre, conference, and educational use. It includes one S4.04-RX-EB GD5 receiver with power adapter, one S4.04-BTX-EBWD5 belt pack transmitter with antenna, SJEM77 earworn microphone and foam windshield.

Included accessories: Instructions.
Optional accessories: Batteries, see AA batteries, 4-pack and see AA batteries, 10-pack. Case A is a carrying case with precut foam, to take either a handheld or beltpack system.

  Description Price (£) Add to basket
TRANTEC S4.04-RX-EB GD5 RADIOMIC RECEIVER Fixed, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£139.00
TRANTEC S4.04-HDX-EBWD5 RADIOMIC TRANSMITTER Handheld, cardioid, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£109.00
TRANTEC S4.04-BTX-EBWD5 RADIOMIC TRANSMITTER Beltpack, no mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£85.01
TRANTEC S4.04-HD-EB GD5 RADIOMIC SYSTEM Handheld, fixed Rx, cardioid, 4ch, 863-865Mhz, Ch 70 ready   Stock code: 74-5583
Please login for stock availability and lead times.
£165.80
Offer £107.50
TRANTEC S4.04-L-EB GD5 RADIOMIC SYSTEM Beltpack, fixed Rx, LP2 mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£165.80
Offer £107.50
TRANTEC S4.04-B-EB GD5 RADIOMIC SYSTEM Beltpack, fixed Rx, no mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£159.00
TRANTEC S4.04-W-EB GD5 RADIOMIC SYSTEM Beltpack, fixed Rx, SJ66 mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£304.70
TRANTEC S4.04-A-EB GD5 RADIOMIC SYSTEM Beltpack, fixed Rx, SJ33 mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£199.00
TRANTEC S4.04-T-EB GD5 RADIOMIC SYSTEM Beltpack, fixed Rx, SJ22 mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£329.00
TRANTEC S4.04-E-EB GD5 RADIOMIC SYSTEM Beltpack, fixed Rx, SJEM77 mic, 4ch, 863-865Mhz, Ch 70 ready   Stock code:
Please login for stock availability and lead times.
£259.00
TRANTEC LD-SJ-JAC CABLE Screw jack to 6.35mm jack, radiomic guitar lead   Stock code:
Please login for stock availability and lead times.
£19.75
TRANTEC CASE A CARRYING CASE For S3000, 3500, 4000, 4.4, 4.16 series radiomic   Stock code:
Please login for stock availability and lead times.
£36.76
