TRANTEC MINIATURE MICROPHONES

13 items
TRANTEC LP2 MICROPHONE Lapel, 200Hz-16kHz, for radiomic, screw jack, black
TRANTEC LP2 MICROPHONE Lapel, 200Hz-16kHz, for radiomic, screw jack, blackTRANTEC TS55 MICROPHONE Lapel, 30Hz-16kHz, for radiomic, Lemo, blackTRANTEC TS212-B-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, Lemo, blackTRANTEC TS212-P-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, Lemo, pink

Omni-directional electret models, fitted with connectors to suit Trantec radiomic belt packs, these microphones may also be used, with appropriate adapters, in wired or wireless applications. The range extends from robust designs for everyday applications in communications, public address and music recording to high quality models aimed at professional live environments for instruments, speech and vocals.

Connectors

Trantec part numbers are usually prefixed to indicate which connector is fitted as standard. Trantec radiomic belt packs use a variety of connectors, so care should be taken to choose a microphone fitted with the connector to suit the equipment with which it is to be used.

SJ prefix Trantec screw-jack. 3.5mm 3-pole.
TS prefix Lemo, 4-pole.
X prefix Miniature 4-pole XLR style.

LP-2, X-2, TS-2

Affordable and robustly designed these have been specifically designed to suit the requirements of everyday applications and is particularly suitable for voice applications, where highly intelligible speech is required. The LP-2 is supplied fitted with a Trantec screw-jack.

Omni-directional electret condenser. Response: 200Hz -16KHz. Impedance: 3000 ohms. Supply: 2-20V, 50uA. Cable length: 1.5m.

Included accessories: LP2-TC tieclip.


SJ-55, TS-55, X-55

These types have a flat, extended frequency response ‘suitable for reproduction of voice or musical instruments’. for applications including communications, public address and music recording. The cable is attached with a composite steel retainer and moulded elastic strain relief. Noise transmission from handling and clothing movement is very low. Internal RFI suppression is included.

Omni-directional electret condenser. Response: 30Hz -16kHz +/-3dB. Impedance: 4700ohms. Supply: 2-10 V, 50uA. Cable length: 1.5m.

Included accessories: 5200-CLIP tieclip, 5200WS foam windshield.
Optional accessories: 55WS foam windshield for TS55 only.


SJ-212, TS-212, X-212

Aimed at professional live environments the 212 types can be used for instrument pick-up or and speech or vocals. With an ‘exceptionally low physical profile, it can withstand the penetration of moisture and make-up’, both desirable when used in the hair, on the face, or as a body worn lavalier.
The -R (=red dot) suffix indicates that the microphone incorporates a -12dB pad (or attenuator) to avoid preamplifier overload when used with very high sound levels.

Omni-directional electret condenser. Impedance: 4400 ohms. Supply: 2-10V, 12-25mA. Response: 40Hz -18kHz +/-3dB. Cable length: 1.2m.

Included accessories: ACC/TC tie clip, ACC/WS foam windshield.

Technical note:

Electret and condenser microphones used with radiomic transmitter body-packs usually require a low voltage supply that is normally provided by the pack. When used with other equipment adapters are required which take the place of the pack, plugging directly into a standard XLR-3 microphone connection. These derive a power supply for the microphone from a mixer or standard phantom power supply, and provides a balanced output.

Description Price $
ex. VAT
Add to basket
Delivery
TRANTEC LP2 MICROPHONE Lapel, 200Hz-16kHz, for radiomic, screw jack, black Black Stock code: 91-6321
2 in stock Need more?
$40.20
TRANTEC SJ55 MICROPHONE Lapel, 30Hz-16kHz, for radiomic, screw jack, black Black Stock code: 91-6323
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$132.67
TRANTEC SJ212-B-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, screw jack, black Black Stock code: 91-6326
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$213.06
TRANTEC SJ212-P-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, screw jack, pink Pink Stock code: 91-6327
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$213.06
TRANTEC TS2 MICROPHONE Lapel, 50Hz-16kHz, for radiomic, Lemo, black Black Stock code: 91-891
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$100.51

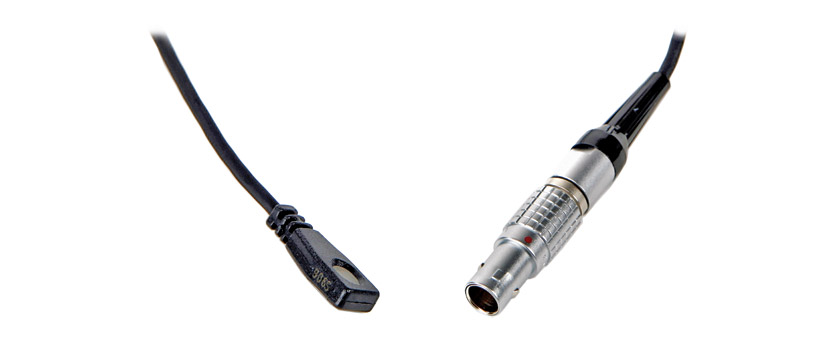

TRANTEC TS55 MICROPHONE Lapel, 30Hz-16kHz, for radiomic, Lemo, black Black Stock code: 91-634
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$174.20
TRANTEC 55WS FOAM WINDSHIELD for TS55 Stock code: 91-635
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$6.71

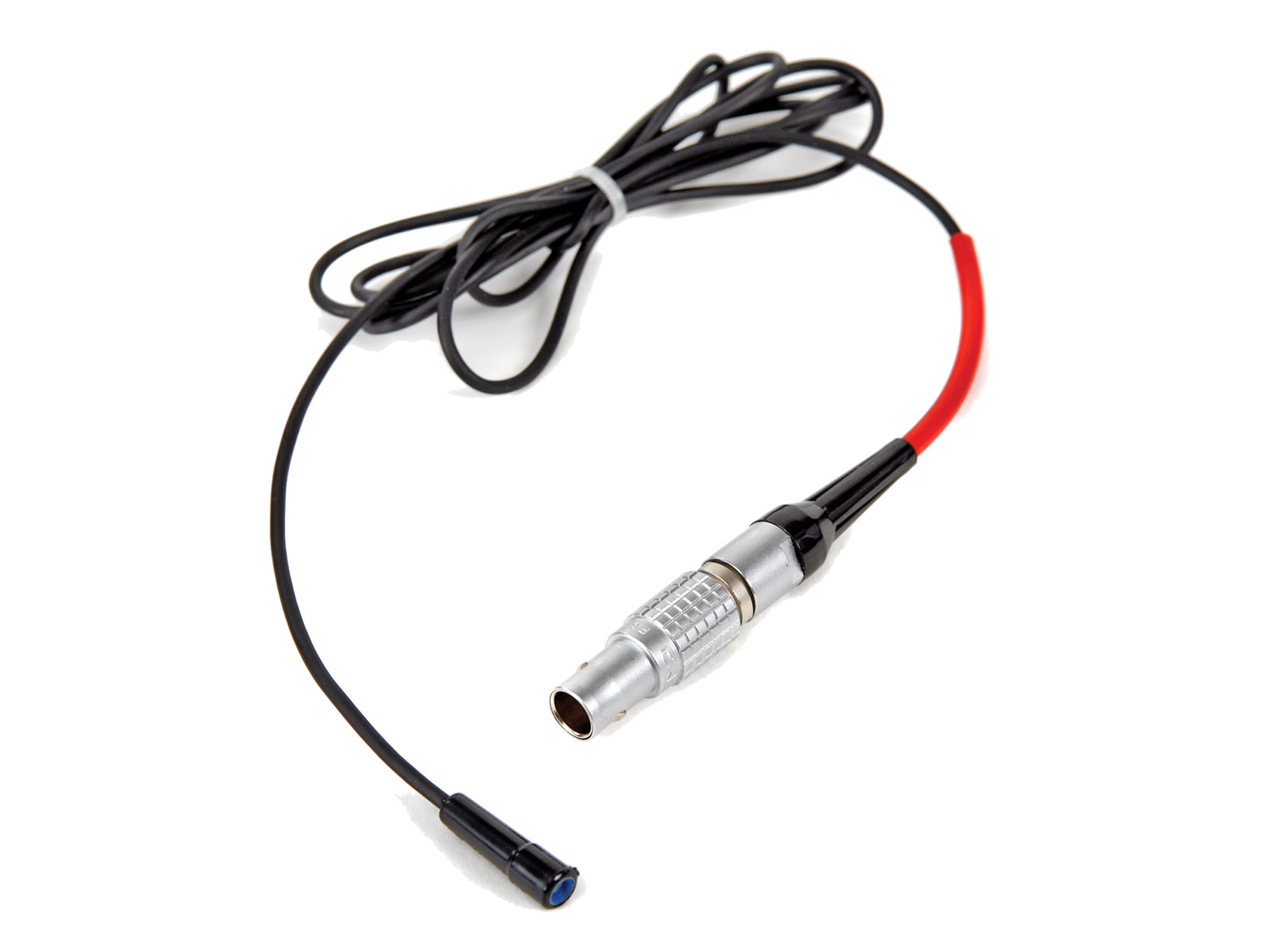

TRANTEC TS212-B-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, Lemo, black Black Stock code: 91-6336
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$241.20

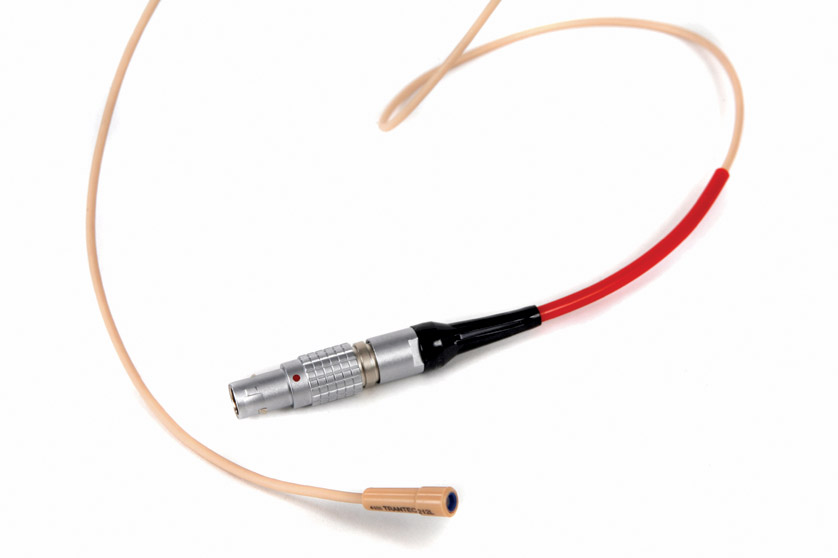

TRANTEC TS212-P-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, Lemo, pink Pink Stock code: 91-6337
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$241.20
TRANTEC X2 MICROPHONE Lapel, 200Hz-16kHz, for radiomic, mini XLR4, black Black Stock code: 91-6361
Ordered on demand, available in 4‑6 weeks. Need it sooner? Call us
$60.31
TRANTEC X55 MICROPHONE Lapel, 30Hz-16kHz, for radiomic, mini XLR4, black Black Stock code: 91-6363
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$132.67
TRANTEC X212-B-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, mini XLR4, black Black Stock code: 91-6366
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$213.06
TRANTEC X212-P-R MICROPHONE Lapel, 40Hz-18kHz, for radiomic, 12dB pad, mini XLR4, pink Pink Stock code: 91-6367
Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
$213.06
