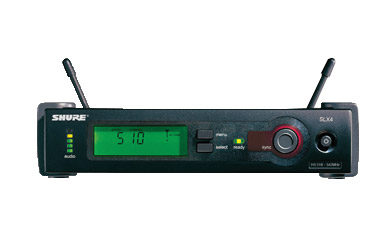

SHURE SLX4UK RADIOMIC RECEIVER Diversity. including rack hardware, 606-630MHz

Stock code
74-5735
Brand
Shure
Model number
  • SLX4UK
SHURE SLX4UK RADIOMIC RECEIVER Diversity. including rack hardware, 606-630MHz

SLX4 Wireless Receiver

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.  Model SLX4L available with logic output for use with software echo cancellation and remote battery life monitoring.  Logic-enabled transmitters include MX690 and MX890.

SLX4:    Wireless Receiver

SLX4L:  Wireless Receiver with Logic Output

Features

SLX Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

  • Automatic Frequency Selection
  • Automatic Transmitter Setup
  • 960 Selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs
  • Optional logic functionality for software echo cancellation and remote battery life monitoring (SLX4L only)

Specifications

Dimensions

42 mm H x 197 mm W x 134 mm D (1.65 x 7.76 x 5.28 in.)

Weight

816 g (1 lb. 13 oz.)

Housing

Galvanized steel

Audio Output Level (ref. +/– 38 kHz deviation with 1 kHz tone)

XLR connector (into 600 Ω load): –13 dBV

1/4 inch connector (into 3000 Ω load): –2 dBV

Output Impedance

XLR connector: 200 Ω

1/4 inch connector: 1kΩ

XLR output

Impedance balanced

Pin 1: Ground

Pin 2: (+)

Pin 3: (-)

Sensitivity

–105 dBm for 12 dB SINAD, typical

Image Rejection

>70 dB, typical

Power Requirements

12–18 Vdc at 150 mA, supplied by external power supply

Operating Range Under Typical Conditions

100m (300 ft.)

Note: Actual range depends on RF signal absorption, reflection, and

interference

Audio Frequency Response (+/– 2 dB)

Minimum: 45 Hz

Maximum: 15 kHz

Note: Overall system frequency depends on microphone element.

Total Harmonic Distortion (ref. +/– 38 kHz deviation, 1 kHz tone)

0.5%, typical

Dynamic Range

>100 dB A-weighted

Operating Temperature Range

–18°C (0°F) to +50°C (+122°F)

Note: battery characteristics may limit this range

Transmitter Audio Polarity

Positive pressure on microphone diaphragm (or positive voltage applied

to tip of WA302 phone plug) produces positive voltage on pin 2 (with

respect to pin 3 of low impedance output) and the tip of the high

impedance 1/4-inch output.

Logic Connections (SLX4L only)

Pin 1: Logic output, Transmitter Mute Status. Mute=low (0 V). Sinks up to100 mA.

Absolute maximum -0.7 to 5.5V DC
Pin 2: Logic ground
Pin 3: Logic output, Battery Status. Good=low (0 V). Sinks up to 100 mA.

Absolute maximum -0.7 to 5.5V DC

User Guides

SHURE WIRELESS SYSTEMS - SLX Series

Rugged SLX wireless systems bring 'unparalleled ease of set-up and exceptional audio quality' into reach. With included accessories and optional logic functionality, 'SLX is also installation-ready, out-of-the-box'. And with a wide selection of microphones to choose from, SLX offers a 'tailored solution for virtually any application'.

Shure microphone clamps are supplied as standard with a 5/8″ thread. 5/8″ to 3/8″ adapters are available separately (stock code 53-217).

Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.
