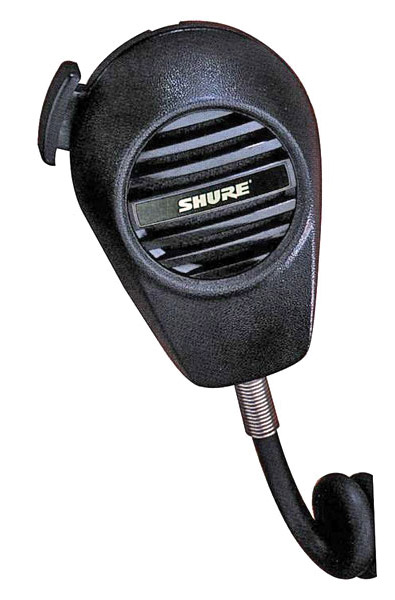

SHURE 527C MICROPHONE Handheld, omnidirectional, 200Hz-5kHz with transistor amplifier

Stock code
74-6214
Brand
Shure
Model number
  • 527C
SHURE 527C MICROPHONE Handheld, omnidirectional, 200Hz-5kHz with transistor amplifier

Image may be provided for illustrative purposes only, please refer to the product description.

SHURE 527C MICROPHONE Handheld, omnidirectional, 200Hz-5kHz with transistor amplifier

Order

VAT / Delivery
No longer manufactured. Unfortunately we are not currently able to offer an alternative.
RoHS Compliant

527C Handheld Microphone

The Shure Model 527C is a dynamic handheld communications microphone designed for use in a variety of mobile and fixed station applications, including police, transportation, amateur radio and similar applications. The 527C offers extremely low sensitivity to hum pickup and low susceptibility to radio-frequency interference. A built-in solid state amplifier permits the use of up to 30 m (100 ft) of unshielded cable.

527C with Built-in Transistor Amplifier (300 Hz to 5 kHz)

Features

  • Built-in amplifier
  • Frequency response from 300 to 5,000 Hz, tailored for voice communications
  • Low sensitivity to hum
  • Low susceptibility to radio-frequency interference
  • “Million-Cycle” leaf-type switch stands up under severe operating conditions and constant use
  • High-impact ARMO-DUR case — lighter and stronger than die-cast metal, comfortable to the touch in hot or cold weather
  • Rugged and dependable under all operating conditions
  • Long-life neoprene-jacketed coil cord

Specifications

Type
Dynamic (with transistor preamplifier)
Frequency Response
300 to 5,000 Hz
  view larger
Sensitivity (at 1,000 Hz)
Open Circuit Voltage -31dBV/Pascal (28 mV)
1 Pascal = 94 dB SPL
Load lmpedance Range
220 to 2,200 ohms
Maximum Signal (with 10 Vdc, 470 ohm load
135 dB SPL at 1,000 Hz produces +10 dBV (3.2V) at 10% THD
DC Supply Voltage and Current
4 to 35 Vdc
Switch
Double-pole, single-throw, leaf-type
Cable
Non-detachable, 1.8 m (6 ft), 4-conductor, neoprene-jacketed coil cord
Case
Black high-impact ARMO-DUR®
Dimensions
See User Guide
Net Weight
342 grams (12 oz)
Packaged Weight
483 grams (17 oz)

SHURE MICROPHONES - Fist microphones

Handheld microphones with press-to-talk switches, for use with paging, public address and communications systems.

596LB

A low impedance, omnidirectional, dynamic, microphone, this is 'designed especially for voice communications use'. It is an 'economical unit for applications in budget-restricted paging and other installations'. Vinyl coated coiled cable, no connector. Supplied mounting bracket fits hang-up button on back of microphone.

514B

The Shure 514B is a low impedance, omnidirectional, dynamic, handheld microphone designed for paging and public address systems. It provides 'clear, natural voice response and high intelligibility'. Neoprene-jacketed, coiled cable, no connector. Supplied mounting bracket fits hang-up button on back of microphone.

527B

An 'extremely reliable', low impedance, omnidirectional, dynamic microphone with an extended low- and high-frequency response, 'particularly suited to ham radio use, mobile FM transmission, and top-quality paging systems'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.

527C

This is similar to the 527B, an 'extremely reliable', low impedance, omnidirectional, dynamic microphone with an extended low- and high-frequency response, fitted with an internal pre-amplifier to reduce sensitivity to hum and RF interference. It is 'designed for use in a variety of mobile and fixed station applications, including police, transportation, amateur radio and similar applications'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.

577B

This is a low impedance, cardioid, dynamic, microphone using the pressure gradient between two entry points to provide noise cancelling. Designed for 'communications and paging applications that require highly intelligible, low noise output', it can be used in 'all types of mobile communications, from amateur radio to helicopter news and traffic reports'. It is also 'suitable for public address and paging systems in noisy areas such as factories, airport terminals, and restaurants'. Neoprene-jacketed coiled cable, no connector, hang-up button and mounting bracket.
