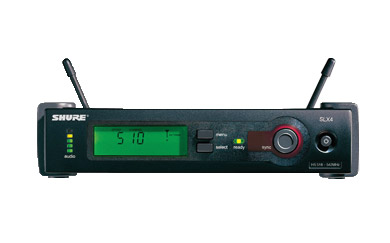

Specifications
Dimensions
42 mm H x 197 mm W x 134 mm D (1.65 x 7.76 x 5.28 in.)
Weight
816 g (1 lb. 13 oz.)
Housing
Galvanized steel
Audio Output Level (ref. +/– 38 kHz deviation with 1 kHz tone)
XLR connector (into 600 Ω load): –13 dBV
1/4 inch connector (into 3000 Ω load): –2 dBV
Output Impedance
XLR connector: 200 Ω
1/4 inch connector: 1kΩ
XLR output
Impedance balanced
Pin 1: Ground
Pin 2: (+)
Pin 3: (-)
Sensitivity
–105 dBm for 12 dB SINAD, typical
Image Rejection
>70 dB, typical
Power Requirements
12–18 Vdc at 150 mA, supplied by external power supply
Operating Range Under Typical Conditions
100m (300 ft.)
Note: Actual range depends on RF signal absorption, reflection, and
interference
Audio Frequency Response (+/– 2 dB)
Minimum: 45 Hz
Maximum: 15 kHz
Note: Overall system frequency depends on microphone element.
Total Harmonic Distortion (ref. +/– 38 kHz deviation, 1 kHz tone)
0.5%, typical
Dynamic Range
>100 dB A-weighted
Operating Temperature Range
–18°C (0°F) to +50°C (+122°F)
Note: battery characteristics may limit this range
Transmitter Audio Polarity
Positive pressure on microphone diaphragm (or positive voltage applied
to tip of WA302 phone plug) produces positive voltage on pin 2 (with
respect to pin 3 of low impedance output) and the tip of the high
impedance 1/4-inch output.
Logic Connections (SLX4L only)
Pin 1: Logic output, Transmitter Mute Status. Mute=low (0 V). Sinks up to100 mA.
Absolute maximum -0.7 to 5.5V DC
Pin 2: Logic ground
Pin 3: Logic output, Battery Status. Good=low (0 V). Sinks up to 100 mA.
Absolute maximum -0.7 to 5.5V DC
