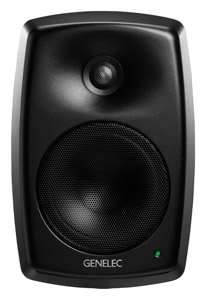

GENELEC 4430A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, black

Stock code
76-1211
Brand
Genelec
Model number
  • 4430A
  • 4430AMM
Colour
  • BlackBlack

Order

VAT / Delivery
£955.00
each (ex. VAT)
Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us

GENELEC ACTIVE LOUDSPEAKERS - Installation

Genelec's 4000 and 4400 Smart IP series of installation loudspeakers bare resemblance to the ever popular 8000 series studio monitor range in both aesthetics and sound design. Designed specifically for indoor commercial and professional installations, 4000 series speakers are available in either white or black finishes, with some 4400 Smart IP series monitors also available in RAW aluminium or specified RAL finish. All models feature matched electronic-crossovers and individual amplifiers for each driver. All are compatible with a range of mounting hardware, see GENELEC LOUDSPEAKERS - Mounting Accessories

4000 Series


4010A

An unobtrusive two-way loudspeaker with bi-amplification that has been designed for fixed installations in high-street retail, schools, and corporate meeting rooms where the temperature is between 15 and 35 degrees Celsius. The 76mm low frequency driver, and 19mm high frequency driver have their own dedicated 25watt amplifiers that product a long term RMS audio output of over 91dB SPL, and a maximum output of over 105dB SPL. The free-field frequency response is 74Hz to 18kHz, with horizontal dispersion of 130 degrees and vertical dispersion of 110 degrees. Tone controls on the rear panel give the user control over 'Treble Tilt', attenuating any frequencies above 5kHz by 2dB; and 'Bass Tilt' levels to attenuate frequencies below 2kHz, compensating for near-wall positioning and/or room brightness. Active crossovers ensure the internal amplifiers are processing the most suited frequencies for optimum performance. The front panel has an AC mains power indicator; figure-8 power inlet and power switch are on the rear. 'Intelligent Signal Sensing' senses when the loudspeaker is consuming less than 0.5watts for a period of around one hour and puts the loudspeaker into sleep mode, turning back on when an input signal is detected.

Included accessories: AC power cable, 3-pin 'Phoenix' connector for audio input signal, 1x keyhole type wall mount, manual.


4020C

Genelec 4020C active loudspeaker has much of the functionality of the 4010A, however it houses a magnetically shielded, 105mm, low-frequency driver with matched 50 watt amplifier and a magnetically sealed, 19mm, high frequency driver that is powered by a second internal 50 watt amplifier. The horizontal dispersion is 120 degrees and the vertical dispersion is 100 degrees, with a frequency response of 56Hz to 25kHz. 'Intelligent Signal Sensing' senses when the loudspeaker is consuming less than 0.5watts for a period of around one hour and puts the loudspeaker into sleep mode, turning back on when an input signal is detected. Linking a 12V trigger voltage to two of the pins on the Phoenix connector gives the user the ability to remotely power the unit on/off. The speaker will also sense when prolonged power consumption is less than 0.5 watts and switch into sleep mode, turning back on as soon as an audio signal is detected. 'Treble Tilt' controls allow the attenuation of frequencies above 5kHz by 2dB; and 'Bass Tilt' controls attenuate frequencies below 2kHz at -2dB, -4dB, or -6dB to compensate for room boundaries. A power indicator on the front shows the status of the AC mains power input via the IEC inlet and power switch on the rear.

Included accessories: AC power cable, 5-pin 'Phoenix' connector for audio input signal and remote on/off, 1x keyhole type wall mount, manual.


4030C

The bi-amplified 4030B has been designed for indoor installations in corporate, retail, education, and restaurants where the ambient temperature is between 15 and 35 degrees Celsius. The 130mm low frequency driver and 19mm high frequency driver have their own dedicated 50 watt amplifiers. Both drivers are magnetically-sealed and between them produce a free-field frequency response of 54Hz to 20kHz with a horizontal dispersion of 120 degrees and a vertical dispersion of 100 degrees. 'Treble Tilt' controls allow the attenuation of frequencies above 5kHz by 2dB and 'Bass Tilt' controls attenuate frequencies below 2kHz at -2dB, -4dB, or -6dB to obtain the best performance for the venue. A bass roll-off switch activates high-pass filtering at 85Hz. A power indicator on the front shows the status of the AC mains power input via the IEC inlet and power switch on the rear. Like the 4020C, the 4030C offers both 'Intelligent Signal Sensing' for auto-sleep mode, and remote on/off control via 12V trigger.

Included accessories: AC power cable, 5-pin 'Phoenix' connector for audio input signal and remote on/off, 1x keyhole type wall mount, manual.


4040A

Genelec 4040A two-way loudspeaker is bi-amplified to give a maximum output of 240 watts and a long term, RMS, audi output of over 101dB SPL. The 165mm low frequency driver and 19mm high frequency driver produce a combined frequency response of 55Hz to 20kHz. The cabinet design provides a horizontal dispersion of 110 degrees and a vertical dispersion of 100 degrees and is compatible with a range of wall/ceiling mount fixings. Switches on the rear give the user control over 'Treble Tilt', attenuating any frequencies above 5kHz in stages of -2dB or -4dB, while a +2dB setting provides increased treble output designed to accommodate heavily-dampened rooms. 'Bass Tilt' levels attenuate frequencies below 800Hz in stages of -2dB, -4dB, or -6dB, whilst a bass roll-off control attenuates the output level by -2dB, -4dB, or -6dB at 55Hz. A single, front-mounted LED shows red to indicate signal overload, and green to signify power. A switch on the rear allows the user to turn off the green power LED. AC mains power input is via the IEC inlet and power switch on the rear. An auto-start function can automatically switch the power mode to standby if there has been no audio input for approximately three hours, when set to 'OFF', or fifteen minutes when the switch is selected to 'ON'. Power on/off can be remotely controlled by 12V trigger voltage.

Included accessories: AC power cable, 5-pin 'Phoenix' connector for audio input signal and remote on/off, 1x keyhole type wall mount, manual.

4000 Series Specifications
4010A 4020C 4030C 4040A
LF driver 76mm 105mm 130mm 165mm
HF driver 19mm 19mm 19mm 19mm
Frequency response 74Hz - 20kHz 62Hz - 20kHz 54Hz - 20kHz 55Hz - 20kHz
Lower cut-off frequency 67Hz 56Hz 47Hz 55Hz
Upper cut-off frequency 25kHz 25kHz 25kHz 20kHz
RMS output,1m 91dB SPL 93dB SPL 96dB SPL 101dB SPL
Maximum output, 1m 105dB 107dB 110dB 109dB
Amplifier power 25W/25W 50W/50W 50W/50W 120W/120W
Input impedance 7k ohms 10k ohms 10k ohms 10k ohms
Level for 100dB SPL -10dB to -6dB -6dBu -6dBu -6 to +6dB
Powersource (1) 100-240V AC 230V AC (1) 230V AC (1) 230V AC (1)
Power consumption
Standby (2) 0.5W 0.5W 0.5W 0.5W
Idle 5W 3W 3W 15W
Full power 30W 60W 60W 170W
Dimensions (HxWxD) 181 x 121 x 115mm 226 x 151 x 142mm 285 x 189 x 118mm 350 x 237 x 223mm
Weight 1.5kg 3.1kg 4.9kg 9.9kg

Notes: (1) +/-10%, (2) Maximum.

4400 Smart IP Series


4410A Smart IP

A bi-amplified, two-way loudspeaker with PoE and AoIP, designed for fixed indoor installation purposes. The loudspeaker houses a 76mm bass driver and 19mm treble driver, independent bass and treble 18W Class D amplifiers, and produces a frequency range of 67Ha to 40kHz.

4410A Smart IP loudspeakers only require a single CAT cable connection to enable both Power Over Ethernet (PoE), using PoE+ or PoE standards, and Audio Over IP (AoIP). Class D amplification is combined with Genelec’s Minimum Diffraction Enclosure (MDE) and Directivity Control Waveguide (DCW) to reduce acoustic diffractions and frequency balance. An active crossover, set to 2900Hz allows both low frequency and high frequency drivers to produce optimum performance.

4410A accepts AES67/ST2110 and Dante audio-over-IP streams. The streams are set up with Dante Controller or Dante Domain Manager software. Each 4410A supports reproduction of one or the sum of two audio input channels. The stream audio sample rate can range from 32-96 kHz, with 16-24-bit resolution. 4410A contains one rear panel CAT connector for standard Ethernet IP network connectivity with a network interface speed of 100 Mbps. The rear panel CAT connector also allows connectivity to Genelec’s Smart IP Manager software that is available for Windows 10 computers. The software allows AV installers to configure an almost unlimited number of rooms, zones, loudspeakers and audio channels, and includes device discovery, a versatile room acoustic equalisation tool set, system organisation and status monitoring. 4410A contains an application programming interface (API) supporting control via third-party hardware, software, or house automation. The API enables integration to all house and home automation systems.
Genelec suggest the loudspeaker be installed so that the minimum clearance for amplifier cooling and reflex port function around the loudspeaker is 3cm behind, above and on both sides of the loudspeaker. If the back side of the loudspeaker is blocked, it must be ventilated so that the ambient temperature remains below 35degrees C at any moment of operation.

The automatic power function ISS (Intelligent Signal Sensing) powers the loudspeaker automatically down when it is not in used and up when the use resumes. ISS can be activated and adjusted with the Smart IP Manager software. Powering down to standby happens after a set time when playback has ended with playback automatically resuming with an input signal exceeding the level configured using the Smart IP Manager.

Available finished: Black or white.
Included accessories: Keyhole-type wall bracket, mounting screw set.


4420A Smart IP

Genelec 4420A Smart IP loudspeaker has the same feature set as 4410A, however it has a greater frequency response of 55Hz to 39kHz, drivers measuring 105mm (low frequency) and 19mm (high frequency), with dual 50W Class D amplification. In addition to the RJ45 AES67/Dante input, 4420A also has a 3-pin Euroblock style connector for analogue audio input.

Available finishes: Black, white, raw aluminium, or RAL finishes. For available RAL colours, please see attached datasheet.
Included accessories: Keyhole-type wall bracket, mounting screw set, 3-pin Euroblock connector.


4430A Smart IP

Genelec 4430A Smart IP loudspeaker has the same feature set as 4410A, however it has a greater frequency response of 45Hz to 39kHz, drivers measuring 130mm (low frequency) and 19mm (high frequency), with dual 50W Class D amplification. In addition to the RJ45 AES67/Dante input, 4430A also has a 3-pin Euroblock style connector for analogue audio input.

Available finishes: Black, white, raw aluminium, or RAL finishes. For available RAL colours, please see attached datasheet.
Included accessories: Keyhole-type wall bracket, mounting screw set, 3-pin Euroblock connector.

4400 Smart IP Series Specifications
4410A 4420A 4430A
LF driver 76mm 105mm 130mm
HF driver 19mm 19mm 19mm
Frequency response, -6dB 67Hz - 40kHz 55Hz - 39kHz 45Hz - 39kHz
Frequency response 74Hz - 20kHz, +/-2.5dB 62Hz - 20kHz, +/-1.5dB 58Hz - 20kHz, +/-1.5dB
Lower cut-off frequency 67Hz 55Hz 45Hz - 39kHz
Upper cut-off frequency 40Hz 39kHz 39kHz
Crossover 2900Hz 3000Hz 2900Hz
RMS SPL,1m 91dB 93dB 96dB
Short Term SPL, 1m 96dB 100dB 104dB
Peak SPL, 1m 100dB 104dB 107dB
Harmonic Distortion 3%, 70-200Hz 2%, 50-200Hz 2%, 50-200Hz
Harmonic Distortion, >200Hz 0.5% 0.5% 0.5%
Amplifier power 18W + 18W Class D 50W + 50W Class D 50W + 50W Class D
Input Ethernet (PoE, AoIP) Euroblock, Ethernet (PoE, AoIP) Euroblock, Ethernet (PoE, AoIP)
Powersource PoE+/PoE PoE+/PoE PoE+/PoE
Power consumption
ISS Active 3W 4W 4W
Idle 4W 5W 5W
Full power 30W 25.5W 25.5W
Dimensions (HxWxD) 181 x 121 x 115mm 226 x 151 x 142mm 285 x 189 x 178mm
Weight 1.5kg 3.1kg 5.1kg
  Description Price £
ex. VAT
Add to basket
Delivery
GENELEC 4010A LOUDSPEAKER Active, 2-way, 25/25W, installation, balanced Phoenix input, black Black Stock code: 76-1191
Available in 4‑6 weeks Ordered on demand, cancellations may incur charges, available in 4‑6 weeks. Need it sooner? Call us
£291.00
GENELEC 4010A LOUDSPEAKER Active, 2-way, 25/25W, installation, balanced Phoenix input, white White Stock code: 76-1192
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£291.00
GENELEC 4020C LOUDSPEAKER Active, 2-way, 20/20W, installation, balanced Phoenix input, black Black Stock code: 76-1193
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£445.00
GENELEC 4020C LOUDSPEAKER Active, 2-way, 50/50W, installation, balanced Phoenix input, white White Stock code: 76-1194
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£445.00
GENELEC 4030C LOUDSPEAKER Active, 2-way, 50/50W, installation, balanced Phoenix input, black Black Stock code: 76-1195
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£545.00
GENELEC 4030C LOUDSPEAKER Active, 2-way, 50/50W, installation, balanced Phoenix input, white White Stock code: 76-1196
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£545.00
GENELEC 4040A LOUDSPEAKER Active, 2-way, 120/120W, installation, balanced Phoenix input, black Black Stock code: 76-1197
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£891.00
GENELEC 4040A LOUDSPEAKER Active, 2-way, 120/120W, installation, balanced Phoenix input, white White Stock code: 76-1198
Available in 1‑2 weeks Ordered on demand, cancellations may incur charges, available in 1‑2 weeks. Need it sooner? Call us
£891.00
GENELEC 4410A SMART IP LOUDSPEAKER Active, 2-way, 18/18W, Dante/AES67 compatible, black Black Stock code: 76-1201
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£618.00
GENELEC 4410A SMART IP LOUDSPEAKER Active, 2-way, 18/18W, Dante/AES67 compatible, white White Stock code: 76-1202
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£618.00
GENELEC 4420A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, black Black Stock code: 76-1205
Available in 3‑5 working days Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£840.00
GENELEC 4420A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, raw aluminium Raw Aluminium Stock code: 76-1206
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£840.00
GENELEC 4420A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, white White Stock code: 76-1207
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£840.00
GENELEC 4420A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible (specify RAL) Stock code: 76-1208
Available in 1‑2 weeks Special order product, cannot be cancelled or returned, available in 1‑2 weeks. Need it sooner? Call us
£1,000.00
GENELEC 4430A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, black Black Stock code: 76-1211
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£955.00
GENELEC 4430A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, raw aluminium Raw Aluminium Stock code: 76-1212
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£955.00
GENELEC 4430A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible, white White Stock code: 76-1213
Available in 1‑2 weeks Ordered on demand, available in 1‑2 weeks. Need it sooner? Call us
£955.00
GENELEC 4430A SMART IP LOUDSPEAKER Active, 2-way, 50/50W, Dante/AES67 compatible (specify RAL) Stock code: 76-1214
Available in 1‑2 weeks Special order product, cannot be cancelled or returned, available in 1‑2 weeks. Need it sooner? Call us
£1,120.00
