CVS-C in-ceiling loudspeakers are part of the Cloud Contractor Series and are intended for cost-effective applications in pubs and clubs, paging systems, board room AV or background music in restaurants and retail environments.

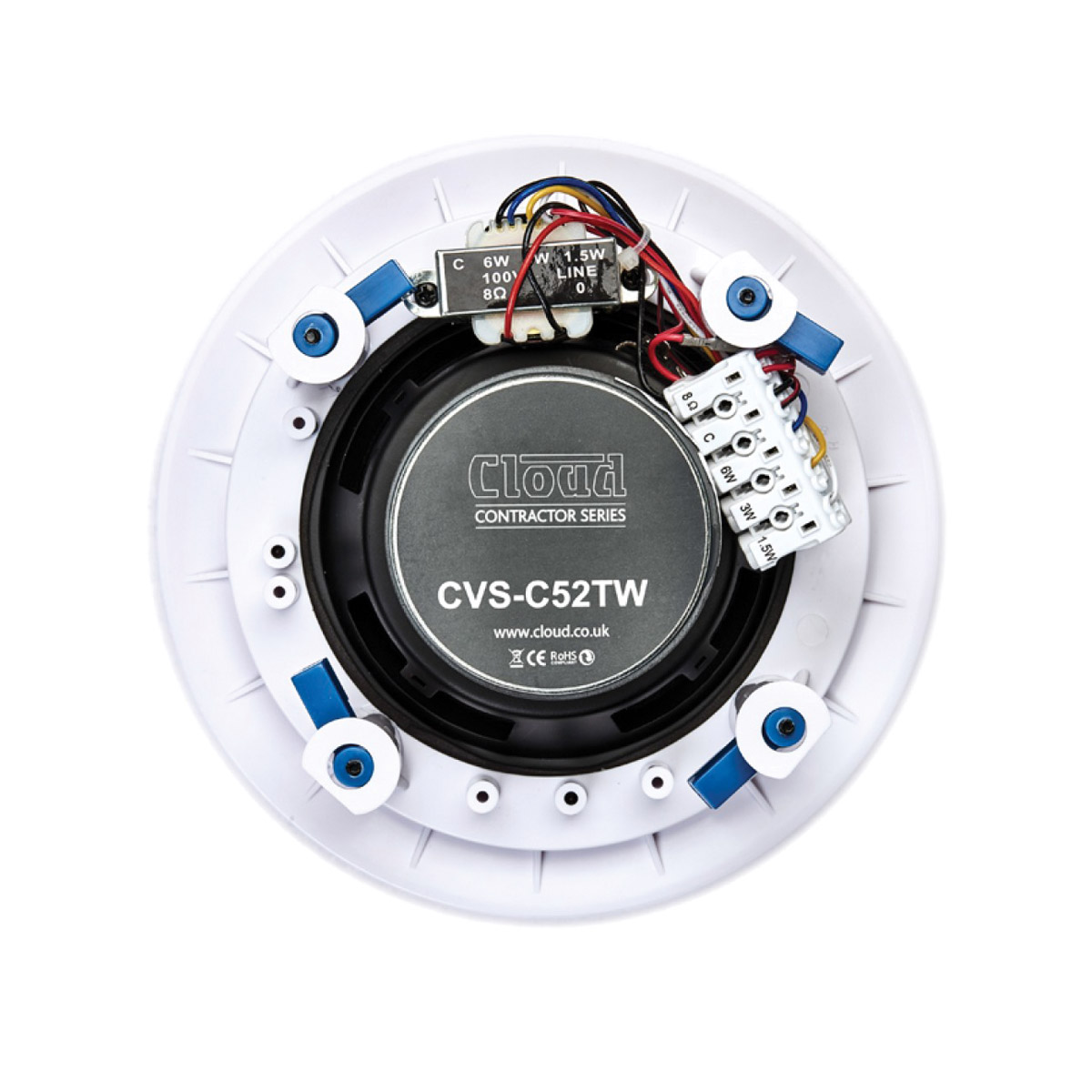

Manufactured in ABS plastic, and with open back design, the CVS series of loudspeaker includes models that can be driven from low impedance and/or constant voltage amplifiers independently. Transformers will accept 100V line input with multiple terminal block inputs deciding the voltage tap required.

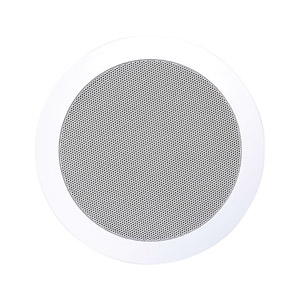

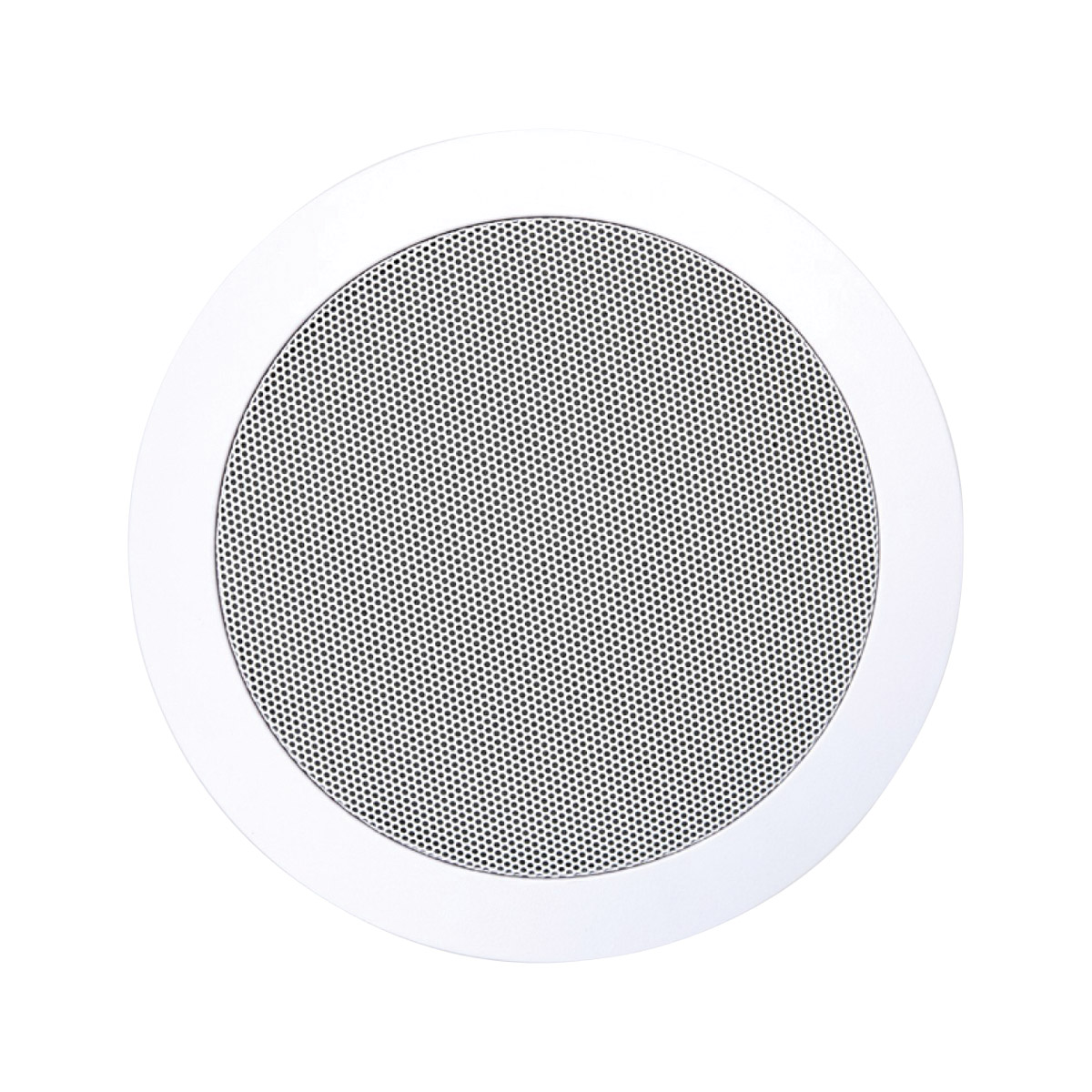

CVS-C5, CVS-C5T, CVS-C52T and CVS-C53T loudspeakers require 169mm cutout hole, whilst the larger CVS-C82T requires a 241mm cutout. CVS-C62T and CVS-C83T require cutouts of 205mm and 248mm respectively. CVS-C5, CVS-C5T, CVS-C62T and CVS-C83T include painted steel grilles, with the latter two including an ‘easy fit’ magnetically attached variety. CVS-C52T, CVS-C53T, and CVS-C82T include clip on painted aluminium grilles.
Installation into dry-lined or ceiling-tile surface is achieved with integrated 'blind-mount constant-tension dog ear clips' which clamp to the ceiling.
