SOUND DEVICES 302 MIXER Stereo, MS, 3 channel, portable

Stock code
93-527
Brand
Sound Devices
Model number
  • 302
SOUND DEVICES 302 MIXER Stereo, MS, 3 channel, portable
SOUND DEVICES 302 MIXER Stereo, MS, 3 channel, portableSOUND DEVICES 302 MIXER Stereo, MS, 3 channel, portable

SOUND DEVICES PORTABLE MIXERS

Compact, portable mixers for studio or field use. Two and three-channel versions, all may be powered from standard batteries or external DC supplies.


MixPre-D

Discontinued

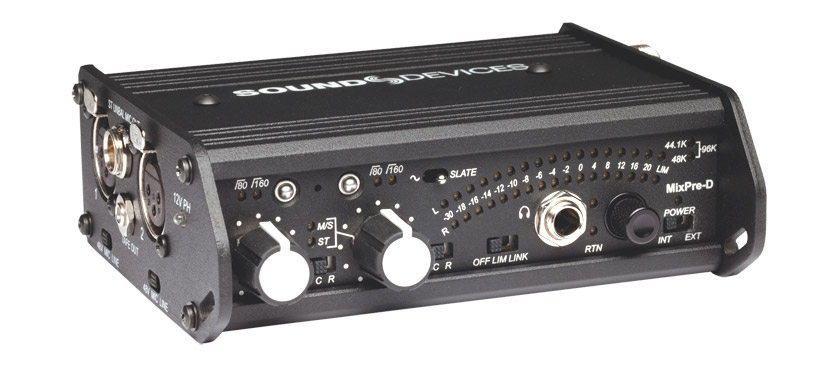

The MixPre-D from Sound Devices is a compact, studio-quality two-channel, portable, stereo microphone mixer with headphone monitoring facilities. Its audio performance and comprehensive features make it suitable for the front end of any studio or field production system. It also has the ability to function as a class compliant USB portable hardware interface.

It features two balanced microphone inputs, plus switchable phantom powering (48V/12V), high pass filter (80Hz/160Hz) and adjustable peak limiters with limit/clip indication which can be ganged. Each input can be routed to either output bus, as a two channel preamplifier (for stereo, with L and R able to be reversed), or to a common bus as a simple mixer. In addition, each channel of a tape return input can be routed to various locations, so when additional inputs are needed (such as when multiple wireless receivers are used) the tape return channels can be independently routed to the main output bus of the MixPre-D to act as additional inputs (3 and 4).

A 16-segment LED 2-channel meter facility is provided with a 'sunlight' display with adjustable intensity, plus balanced line outputs and unbalanced tape output. A mid-side stereo (MS) matrix with width control and front-panel channel flip are included. The headphone monitor can be switched to tape return. A 1kHz tone generator plus slate microphone are provided.

Mic, Line or AES digital selectable outputs, with a sample rates of 44.1, 48, or 96kHz offered. Uses 24-bit, class-compliant USB streaming output for interconnection with Mac OS, Windows, Linux, and select iOS devices, with the computer audio monitored via the MixPre-D headphone output. A dedicated mic-level output on locking TA3 connector, is useful for unbalanced camera inputs (such as digital SLR types) along with a line-level output on 3 -pole, 3.5mm mini-jack.

The MixPre has a durable aluminum chassis to withstand the demands of field and studio environments, with belt loop fixings. The unit is powered by 2 AA size batteries (nominal life approx. 4 hours with phantom off) or external 10V-17V DC (locking Hirose type connector), with a power LED that also gives low power warning.

Technical Specification:

Mic/Line input: XLR 3-pin female, transformer balanced
Mic/Line/AES output: XLR 3-pin male, transformer balanced
Unbalanced mic output: Unbalanced Switchcraft TA-3M mic-level output, pin-2 left, pin-3 right, pin-1 ground, 200 ohm output impedance
Tape output: 3-pole 3.5mm jack, wired stereo
Tape return (monitor): 3-pole 3.5mm jack, wired stereo
Headphone output: 3-pole A-gauge jack, wired stereo
USB: Mini-USB, male type
Gain: Mic to Line, max: 66 dB
Line to Line, max: 26 dB
Line to Mic, max: -14 dB
Mic to Mic, max: 26 dB
Mic (TA3) relative to Line out: -36 dB
Response: 20Hz-30kHz +0.2, -0.5dB; -1dB at 50kHz (ref. 1kHz, 150R source)
Power source: 2 AA size batteries or 10-17V DC (Hirose locking type, not supplied)
Dimensions: 43 x 94 x 140 (h x w x d) mm
Weight: 0.7kg
Optional accessories: CS-3 carrying case; mating DC supply connector, HRS HR10-7P-4P (stock code 44-672) or HRS HR10A-7P-4P (stock code 44-572).

302

Discontinued

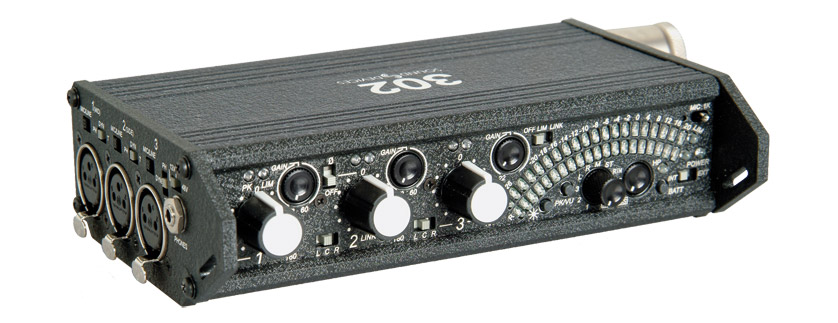

The 302 is a very compact 3-input field microphone mixer, which interfaces with wireless transmitters and receivers, camera audio inputs of all kinds, and external audio recorders. Its microphone inputs share the same circuitry of all Sound Devices field production tools, and are transformer balanced. All controls are accessible on its three main surfaces, there are no hidden controls. The high-efficiency power circuitry runs the mixer from either three internal AA batteries or external 5-18V DC.

The inputs are switchable between microphone level, transformer balanced (Lundahl), or line level. Features include continuously adjustable coarse and fine gain, high-pass filter, pan switches, limiters on inputs and outputs, stereo and MS linking of channel 1 and 2, phantom (48V/12V) or ‘T’ microphone powering selectable per channel and pre-fade channel monitoring in headphones. Multiple outputs are provided at mic and line level (balanced), together with comprehensive headphone monitoring selection, plus sunlight-viewable LED meters with proprietary software-selected ballistics. An on-board MS stereo matrix is included.

Technical Specification:

Mic input: XLR 3-pin female, transformer balanced (Lundahl)
Line output: XLR 3-pin male, transformer balanced
Response: 20Hz-30kHz +0.2, -0.5dB; -1dB at 50kHz (ref. 1kHz, 150R source)
Line input (monitor): 3-pole A-gauge jack, balanced
Metering: 40 segment sunlight-viewable LED array selectable peak or VU
Powering: 3 AA size batteries or 5-18V DC (Hirose locking type, not supplied)
Dimensions: 47 x 214 x 114 (h x w x d) mm
Weight: 0.85kg

Optional accessories: CS-3 carrying case; mating DC supply connector HRS HR10-7P-4P (stock code 44-672) or HRS HR10A-7P-4P (stock code 44-572).
