SHURE AUXPANDERUK MIXER 8 x 8 matrix

Stock code
93-538
Brand
Shure
Model number
  • AUXPANDERUK

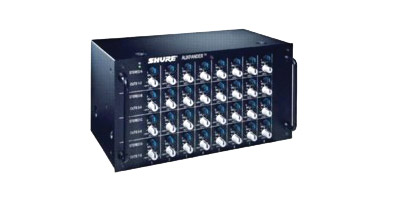

SHURE AUXPANDERUK MIXER 8 x 8 matrix
SHURE AUXPANDERUK MIXER 8 x 8 matrix

Order

/
No longer manufactured. Please contact Technical Support for alternatives.

AuxPander Auxiliary Expander

Traditionally, the number of auxiliary sends available on mixing consoles has been sufficient and proportional to the number of inputs needed for a given application. However, recent developments in audio technology have resulted in a significant increase in the number of audio components requiring auxiliary sends, beyond what many consoles have to offer. In many applications, the number of auxiliary outputs can equal, if not exceed, the number of inputs. The AuxPander auxiliary expander is designed as a flexible and cost-effective way to address this issue. Each AuxPander is an insertable, 8x8, analog mixing matrix designed to expand the auxiliary output capabilities of any standard mixing console. Compact and transportable, the AuxPander is capable of mixing eight input signals and distributing them to any of the eight available outputs, in any combination, and at any volume level.

Features

Personal Monitors

 Craft uniform personal monitoring environments for individuals, bands, or venues.
Multitrack Recording Use in conjunction with modular digital multitrack recorders (MDMs) such as hard disk recorders or digital eight track tape recorders for live and studio recordings.
Track Combining Combine input signals from multiple sources and route them to a single output.
Multitrack Monitoring Inserted between a MDM and a mixing console, the AuxPander can mix to individual stereo cue mixes without interrupting the signal flow to the mixing console.
Stereo Effects Sends Create stereo auxiliary sends to incorporate the stereo inputs of effects processors.
Mix Minus Matrixing Mix to eliminate feedback in certain distributed installations where each monitor receives a different mix by subtracting the source closest to each monitor.
Expand to Fit The AuxPander is expandable both horizontally (16x8) and/or vertically (8x16) to adapt to any application where more output mixes are required.

Traditionally, the number of auxiliary sends available on mixing consoles has been sufficient and proportional to the number of inputs needed for a given application. However, recent developments in audio technology have resulted in a significant increase in the number of audio components requiring auxiliary sends, beyond what many consoles have to offer. In many applications, the number of auxiliary outputs can equal, if not exceed, the number of inputs. The AuxPander auxiliary expander is designed as a flexible and cost-effective way to address this issue. Each AuxPander is an insertable, 8 x 8, analog mixing matrix designed to expand the auxiliary output capabilities of any standard mixing console. Compact and transportable, the AuxPander is capable of mixing eight input signals and distributing them to any of the eight available outputs, in any combination, and at any volume level. An easy-to-use, portable solution for output-hungry applications that often outstrip the capacity of most mixing consoles.

Specifications

Frequency Response
20Hz to 20kHz, +/- 1dB
Dynamic Range
100dB
Maximum Input Level
21dBu
Nominal Input Impedance
10 kilohms (all inputs)
Channel Gain
+12dB (LEVEL pot full CW)
0dB (LEVEL pot center)
Maximum THD at 1kHz
0.01% (A-weighted)
Minimum Common Mode Rejection
>50dB (all LEVEL pots full CW)
Maximum Crosstalk (adjacent channel)
60dB (1kHz at 0dBu)
Power Supply
AuxPander: 120VAC (+/- 10%), 50/60 Hz, 5W
AuxPander E/UK: 220-240 VAC (+/- 10%), 50/60 Hz, 5W
Direct Inputs
Balanced inputs. Tip positive.
Operating Temperature Range
-7 degrees to 49 degrees C (20 degrees to 120 degrees F)
Overall Dimensions(without rackmount brackets)
175 mm H x 330 mm W x 218 mm D (6 7/8 x 13 x 8 9/16 inches)
Weight
5.4 Kg (12 lbs)
