FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTERS

4 items

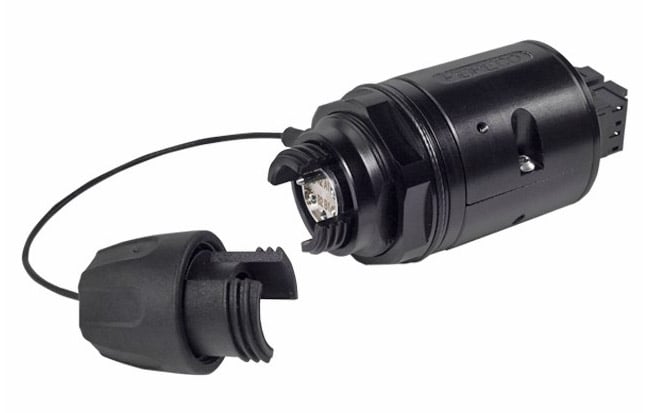

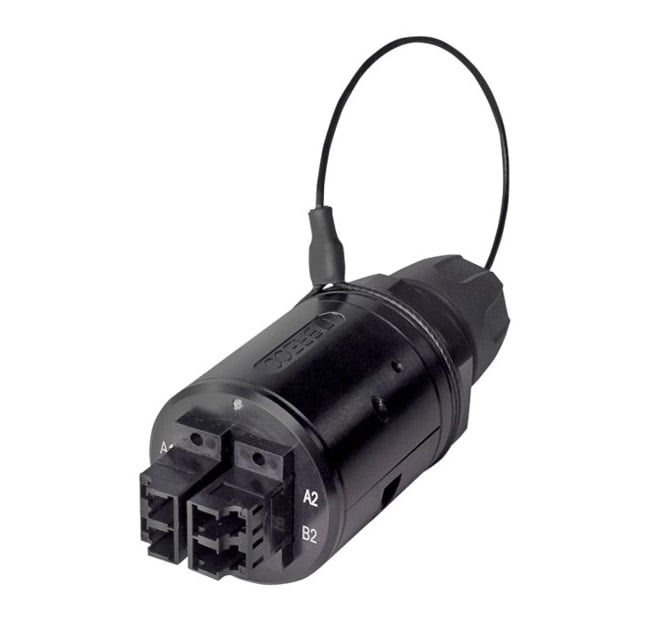

FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 2Ch, SM, LC
FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 2Ch, SM, LCFIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 2Ch, SM, LC

Fibreco Junior expanded beam fibre optic adapters are designed to meet the requirements of MIL-DTL-83526 specifications and operate in harsh environments for applications such as Video, military tactical communications, outside broadcast, industrial, mining, and offshore systems.

These adapters feature a standard fiber optic interface, along with rear adapter plate for standard commercial LC connectors allowing easy use with readily available patchcords.

Available in two channel and four channel, single mode and multimode variants, these D series mounting , black anodised bulkhead panel connectors offer the benefit of being easily installed and serviced without the need for specialist tools or training.

Fibre type: Singlemode 9/125 um, Multimode 50/125 um. Insertion loss: Singlemode 1.8db (1310/1550 nm), Multimode 1.3dB (850/1300 nm). Return loss: Singlemode 32db (1310/1550 nm), Multimode 23dB (850/1300 nm). Tested to 1000 mating cycles. Operating temperature: -46 degrees celcius to +71 degrees celcius. Weight: 0.14kg

Description Price £
Add to basket
FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 2Ch, SM, LC Stock code: 50-0020
Ordered on demand, available in Call.
£521.00
FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 4Ch, SM, LC Stock code: 50-0021
Ordered on demand, available in Call.
£480.70
FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 2Ch, MM, LC Stock code: 50-0022
Ordered on demand, available in Call.
£668.00
FIBRECO JUNIOR BULKHEAD EXPANDED BEAM ADAPTER, 4Ch, MM, LC Stock code: 50-0023
Ordered on demand, available in Call.
£598.00
