SENKO FIBER OPTIC COUPLERS

16 items

A range of high quality, industry approved, Senko fibre optic couplers or 'feed-through' adapters and dust caps. Suitable for mounting in standard fibre coupler cutouts either snap-in or screw mounting.

The Senko professional LC duplex and quad, SC simplex, E2000 simplex and ST fibre through-couplers have tight-tolerance housings and precision ferrules, made of zirconia in singlemode couplers and phosphor bronze in multimode versions, to ensure exceptionally accurate connector alignment and fibre face contact over an extended lifetime. The combination of high quality components ensures lower loss and greater reliability than commercial grade types. The LC, SC and E2000 types feature an internal 'metal light shutter' for instant eye protection against laser spillage from an unmated or 'live' port. Although not an environmental seal, it does offer some protection from large particle ingress.

LC duplex, SC simplex and E2000 simplex couplers share a common panel cut out size known as the SC simplex footprint.

Apart from the ferrule material, the construction of LC multimode, singlemode and singlemode APC couplers is identical, similarly with SC and E2000 couplers. Colour-coded housing options are offered' in line with the industry convention, simply to enable identification of the transmission mode of connected equipment and fibres.

Multimode OM3 LC and SC Aqua
Multimode E2000 Black
Singlemode LC, SC and E2000 PC Blue
Singlemode LC, SC and E2000 APC Green
Description Price $
ex. VAT
Add to basket
Delivery
SENKO FIBRE OPTIC LC MM DUPLEX FEEDTHROUGH COUPLER Aqua Aqua Stock code: 50-0191
28 in stock Need more?
1+ $2.69
10+ $2.62
SENKO FIBRE OPTIC LC SM DUPLEX FEEDTHROUGH COUPLER Blue Blue Stock code: 50-0192
169 in stock Need more?
1+ $2.84
10+ $2.76
SENKO FIBRE OPTIC LC APC SM DUPLEX FEEDTHROUGH COUPLER Green Green Stock code: 50-0193
34 in stock Need more?
1+ $2.84
10+ $2.76
SENKO FIBRE OPTIC LC MM QUAD FEEDTHROUGH COUPLER Aqua Aqua Stock code: 50-0194
Discontinued. See the product page for suggested alternatives.
SENKO FIBRE OPTIC LC SM QUAD FEEDTHROUGH COUPLER Blue Blue Stock code: 50-0195
27 in stock Need more?
$7.08
Clearance
$4.48
SENKO FIBRE OPTIC LC APC SM QUAD FEEDTHROUGH COUPLER Green Green Stock code: 50-0196
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
1+ $7.08
10+ $6.90
SENKO FIBRE OPTIC SC SM SIMPLEX FEEDTHROUGH COUPLER Blue Blue Stock code: 50-0198
34 in stock Need more?
1+ $1.41
10+ $1.37
SENKO FIBRE OPTIC SC APC SM SIMPLEX FEEDTHROUGH COUPLER Green Green Stock code: 50-0199
154 in stock Need more?
1+ $1.41
10+ $1.37
SENKO FIBRE OPTIC ST SM FEEDTHROUGH COUPLER Stock code: 50-0201
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
1+ $1.54
10+ $1.50
SENKO FIBRE OPTIC ST MM FEEDTHROUGH COUPLER Stock code: 50-0202
Discontinued. See the product page for suggested alternatives.
SENKO FIBRE OPTIC E2000 MM SIMPLEX FEEDTHROUGH COUPLER Black Black Stock code: 50-0203
No longer manufactured. Unfortunately we are not currently able to offer an alternative.
SENKO FIBRE OPTIC E2000 SM SIMPLEX FEEDTHROUGH COUPLER Blue Blue Stock code: 50-0204
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
1+ $13.16
10+ $12.83
SENKO FIBRE OPTIC E2000 APC SM SIMPLEX FEEDTHROUGH COUPLER Green Green Stock code: 50-0205
7 in stock Need more?
1+ $13.16
10+ $12.83
SENKO FIBRE OPTIC SC SM DUPLEX FEEDTHROUGH COUPLER Blue Blue Stock code: 50-0206
2 in stock Need more?
1+ $3.03
10+ $2.96
SENKO FIBRE OPTIC SC APC SM DUPLEX FEEDTHROUGH COUPLER Green Green Stock code: 50-0207
5 in stock Need more?
1+ $3.03
10+ $2.96

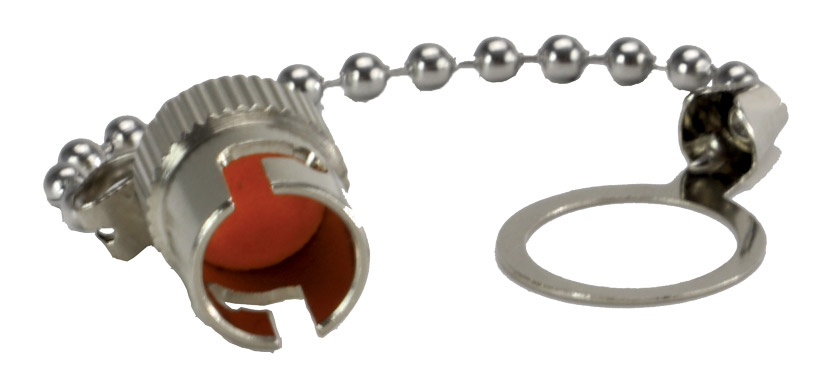

CANFORD FIBRE OPTIC ST DUST CAP With chain Stock code: 46-4234
674 in stock Need more?
$3.21
