LD SYSTEMS PORTABLE PA SYSTEMS - Roadbuddy

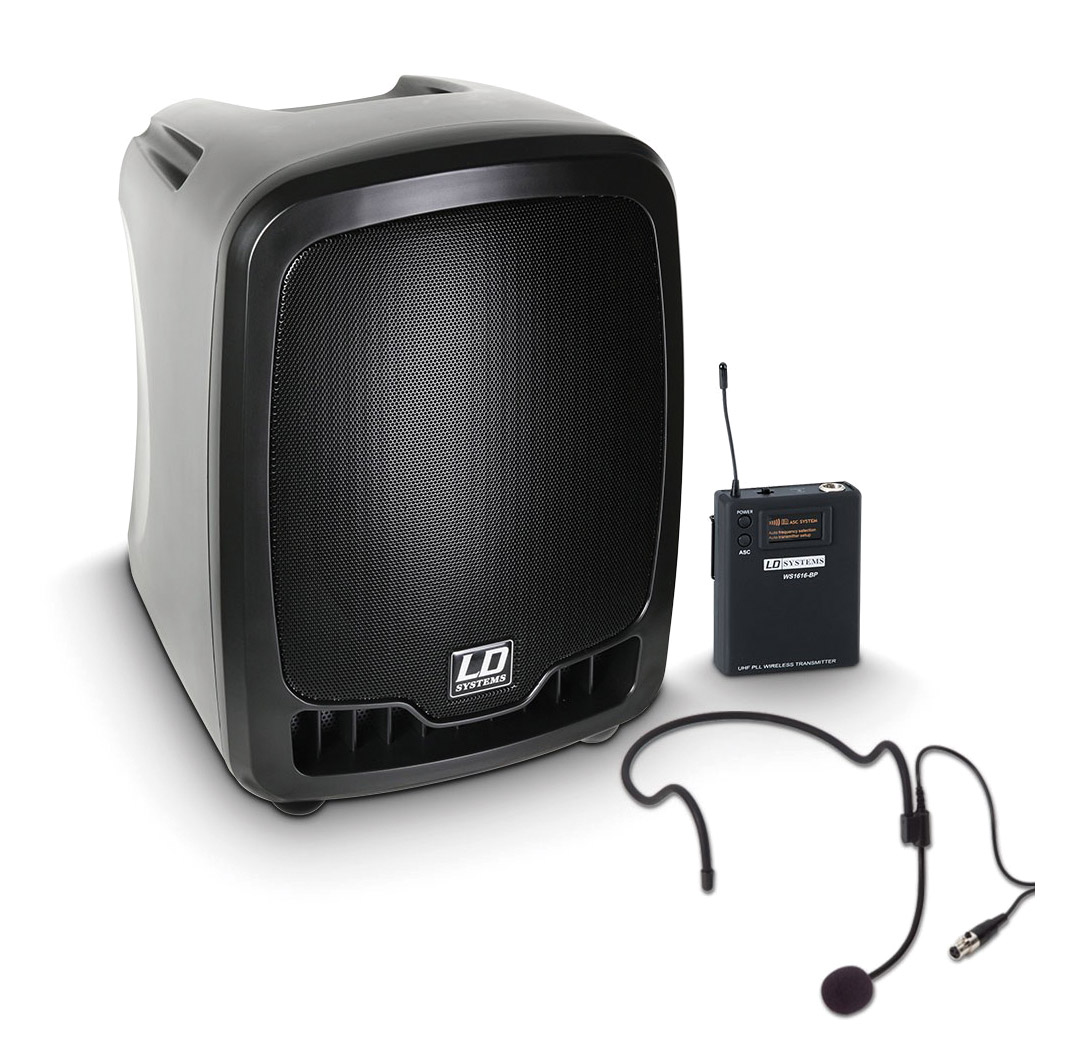

LD Systems’ range of portable, battery powered are supplied with either handheld or headworn wireless transmitter and integrated wireless receiver. This range include MP3, WAV and WMA playback via wired connection, Bluetooth, USB media, or inserted SD card.

ROADBUDDY 120W, Bluetooth/CD/SD/USB media playback

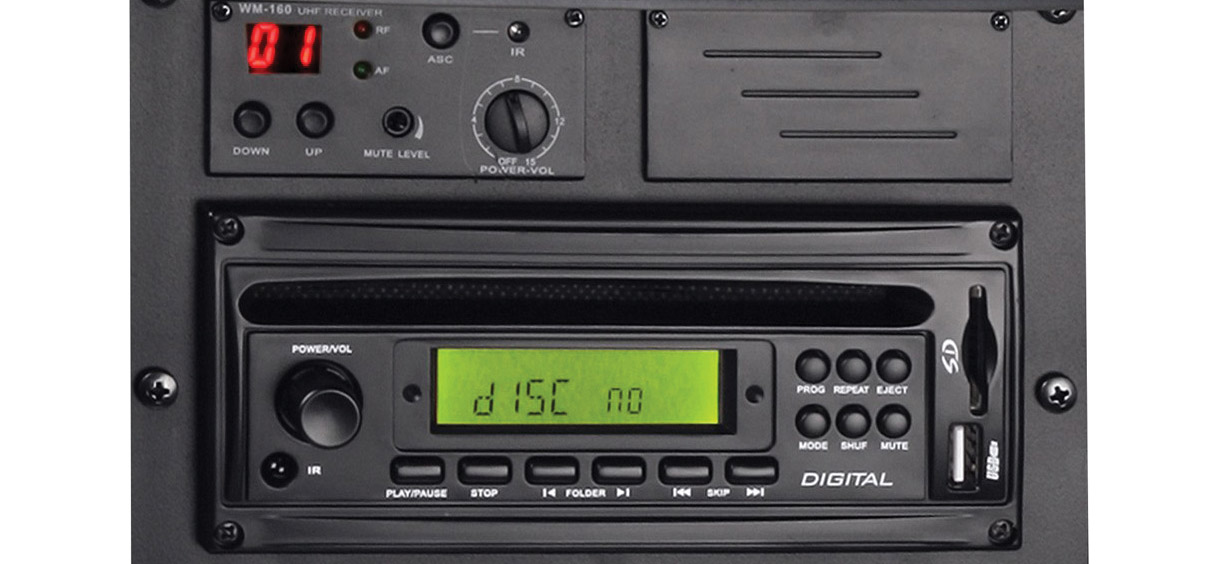

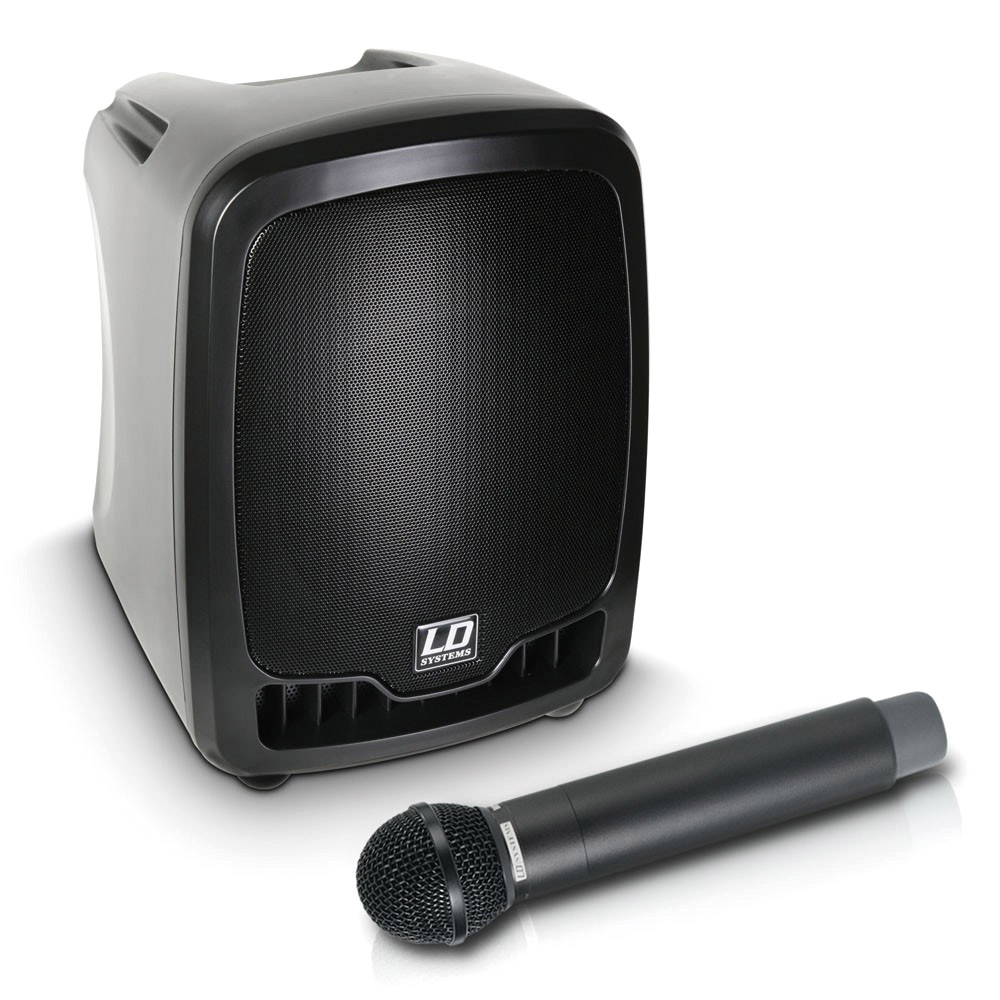

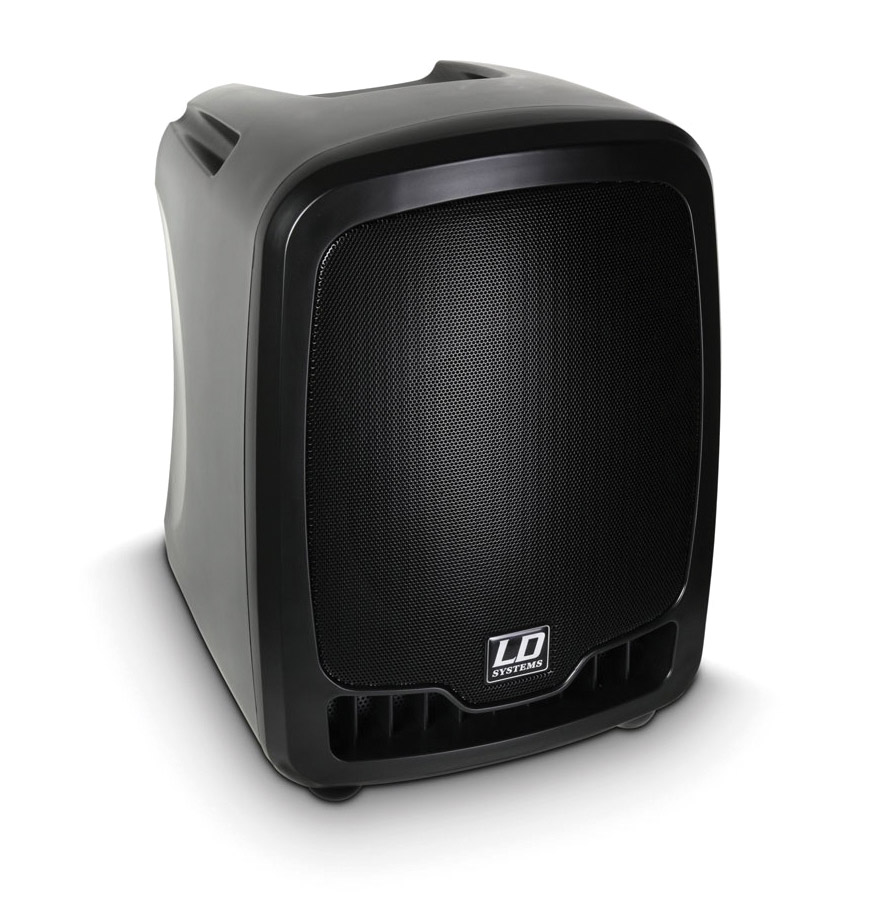

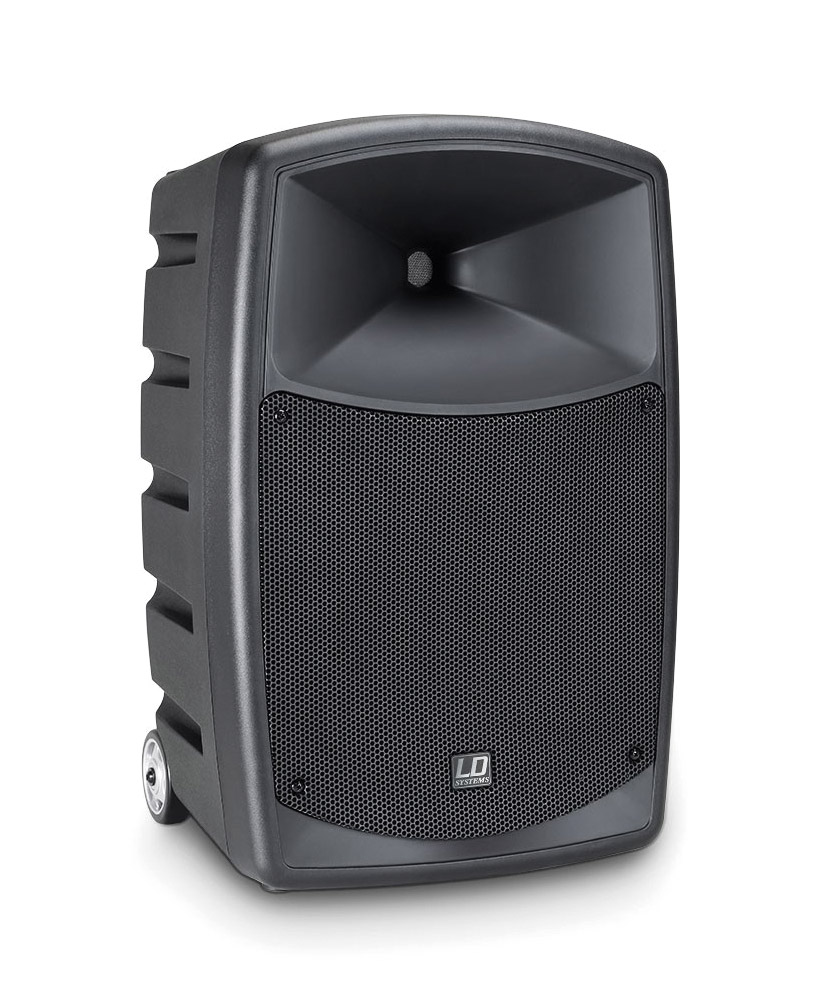

LD Systems Roadbuddy is a full-range, portable, AC/battery powered, PA system that includes a 16-channel handheld wireless microphone with automatic tuning. Roadbuddy 10 PA also has a built-in media player that can read, support and play MP3, WAV and WMA files (FAT16/32), directly from the SD card or USB slots on the rear panel, or stream directly from a connected Bluetooth device within a range of 10m. Roadbuddy 10 models have moulded speaker stand mounts, compatible with 35mm speaker stands.

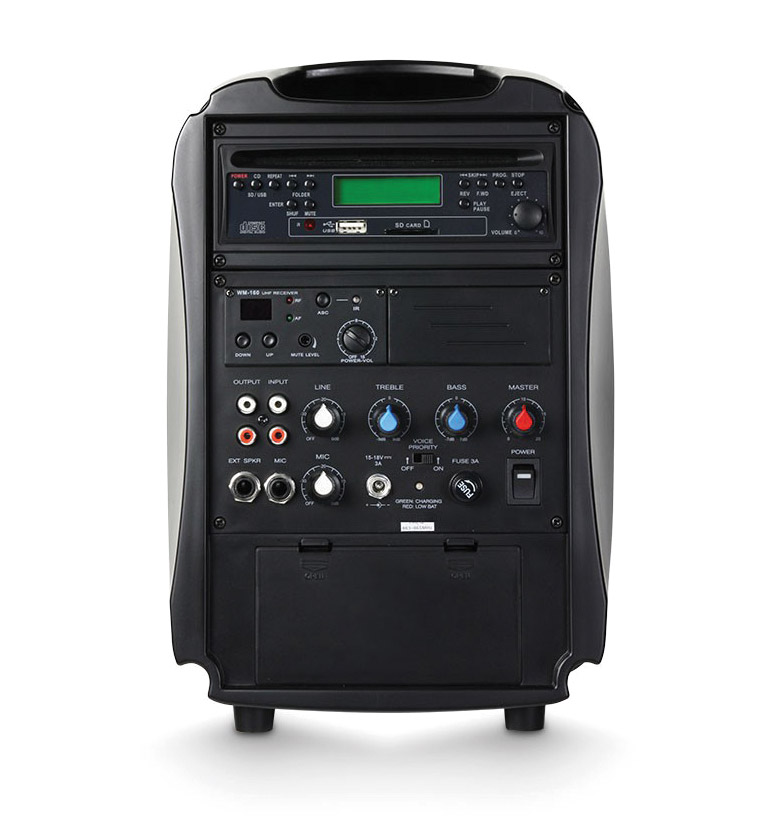

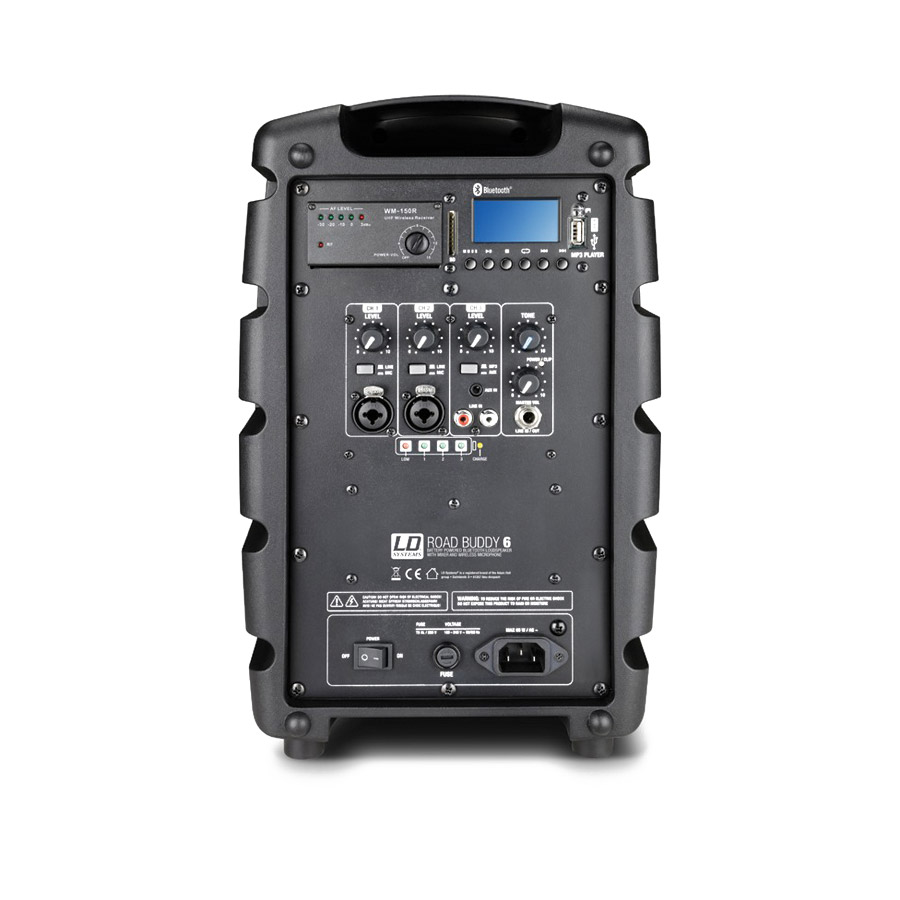

There are three input channels available in addition to the inbuilt UHF receiver; Channel 1 can be used to connect a stereo device such as CD player, smart phone or media playing device, with input options of single stereo 3.5mm jack socket or dual RCA phono socket inputs. A switch situated above the channel inputs allow the user to switch between the auxiliary source or the internal MP3 media player. Channels 2 and 3 can be used as microphone or line by using the 6.3mm Jack/XLR combination inputs and the line/mic switch, while an ‘Echo’ control allows the global application of effect to the wireless microphone channel and input channels 2 and 3. A 6.3mm jack line out socket is provided to send the global signal, controlled by the master volume control, to a separate amplified speaker for additional dispersion.

Powered by an internal Class D amplifier 2-way Roadbuddy 10 can produce 120W RMS (480W peak) for up to 8 hours. The 10-inch woofer and 1-inch high-frequency compression-driver produce a frequency response of 55Hz to 18kHz, and two-band equalisation gives the user the option of fine-tuning the output signal. A 4-stage LED display shows the remaining internal battery life.

Wheels are integrated into the bottom-rear edge for easy transportation.

Variants

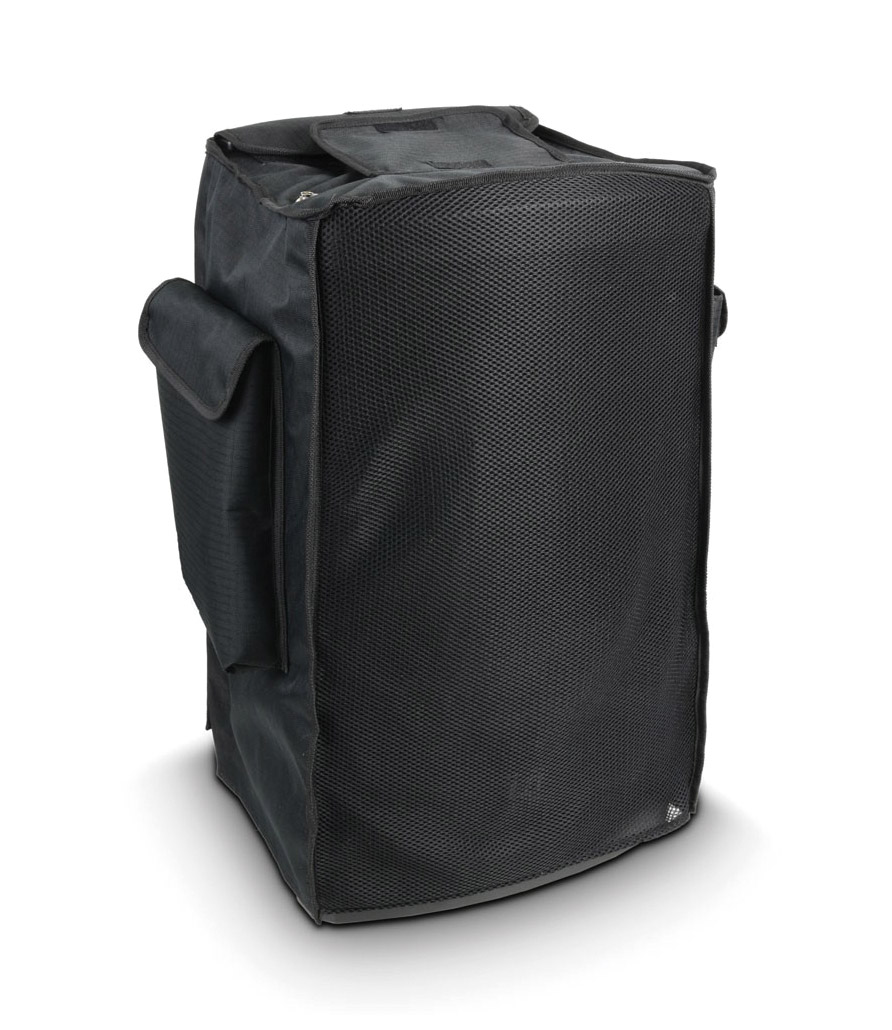

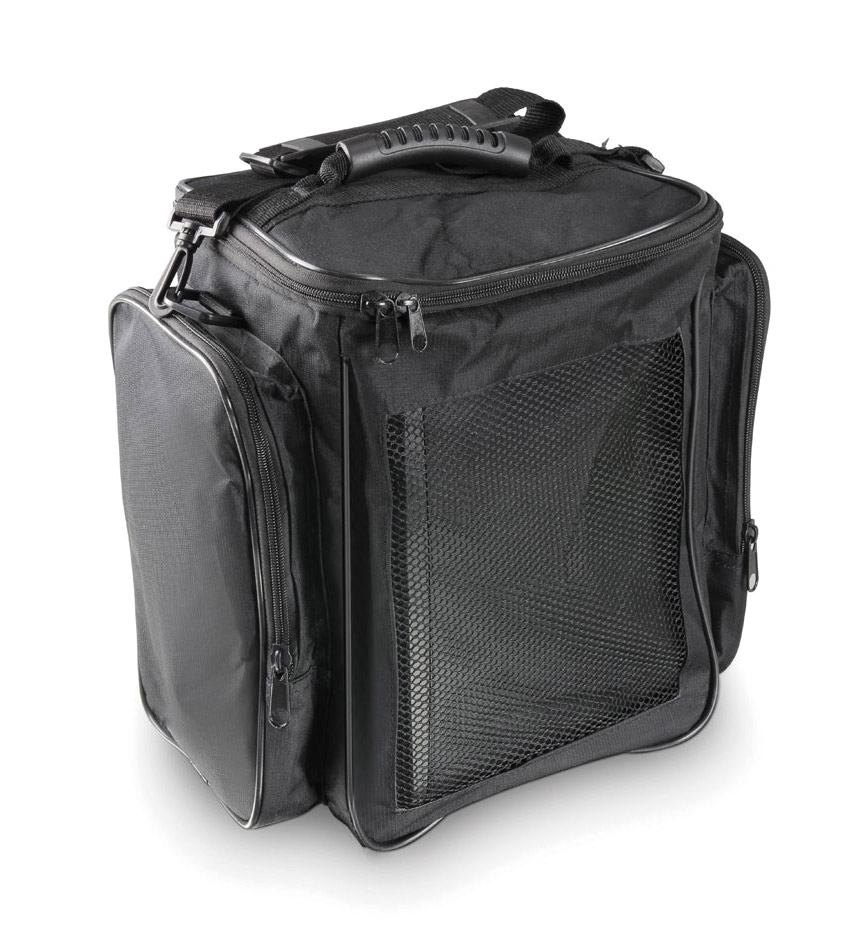

Optional accessories

Power output: 120W, RMS; 480W, peak. Frequency response: 55Hz – 18kHz. SPL: 96dB, 1w/1m; 115dB, maximum. Batteries: 12V, 5AH rechargeable. Operating voltage: 100-120V, 60Hz; 220-240 V AC, 50Hz, switching. Dimensions (WxHxD): 415 x 525 x 328mm. Weight: 16.5kg.
