COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q

Stock code
48-5004
Brand
Coax Connectors
Model number
  • 52-005-B6-FB

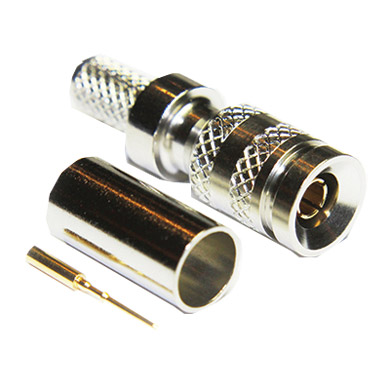

COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q
COAX CONNS 52-005-B6-FB DIN 1.0/2.3 3G HD Male cable, crimp, group Q

COAX CONNECTORS DIN 1.0/2.3 - Male, cable - Crimp - 12G UHD and 3G HD-SDI

Push-pull coupling, sub-miniature, 'true 75 ohm' coaxial connectors for use with high density routers. This redesign of the original DIN style connector, using precision components impedance matched to 75 ohms, make it suitable for 3G HD-SDI and frequencies up to 3GHz (for the cable group X type, a re-design extends this to 12G UHD). The centre and outer mating contacts are gold-plated; the latching outer body is nickel-plated. The centre contact is crimped with a conventional 'plier' type square cavity crimp tool and the outer braid is secured with a hexagonally crimped sleeve. For Suitable crimp tools see COAX CONNECTORS CRIMP TOOLS.

Note: To achieve the 'true 75 ohm' performance, the connector insulator is deeply recessed within the connector body. To ensure correct alignment and positioning of the centre pin while the braid is crimped, a reusable centre-contact alignment tool is required during assembly.

A centre-contact alignment tool is included in each 100pc bulk pack and can be ordered separately for individually packed connectors.

The DIN 1.0/2.3 series is used to achieve a very high density of connections on equipment rear-panels and thus requires the use of the dedicated slim-line removal tool to release the mating latch and to un-mate the connector. See COAX CONNECTORS INSERTION AND EXTRACTION TOOLS.

Stock Code Compatibility
48-5001, 48-5011 Canford group J cables including Belden 179DT
48-5002, 48-5012 Canford group X cables including Canford SDV, SDV-LFH, SDV-X-LFH, Belden 1855ENH (but NOT Belden 1855A), Draka 0.6/2.8AF and HD PRO 0.6/2.8AF
48-5003, 48-5013 Belden 1855A.
48-5004, 48-5014 Canford group Q cables including Belden 1505A, 1505ANH, Draka 0.8/3.7AF and HD PRO 0.8/3.7AF
48-5008, 48-5018 Canford SDV-UHD-LFH and Draka Ultra HD PRO 50 UHD
