With much of the same technology as the Sennheiser Digital 9000 system, including AES-256 encryption, the Digital 6000 series includes a range of handheld or belt-pack transmitters with automatic frequency set up, specific to the frequency range required for the application.
The Digital 6000 series are offered in component form.
For more information regarding UK wireless system licensing and OFCOM, please visit the Canford guide at http://www.canford.co.uk/Technical/Article/Channel69; up to date information should be available at www.jfmg.co.uk.
Usage Note: Licensing and legal use information for radiomic equipment in this product group is applicable to the UK only. Customers should check with the relevant regulatory body for the territory the equipment is to be used in prior to purchase to ensure appropriate legal usage and local environmental restrictions.
EM-6000 DANTE Receiver - Rack mounting - 470-714MHz
This true-diversity, 2-channel, fixed receiver is in a 1U rack mounting chassis. Using digital technology, the EM6000 combines two receiver paths to provide a more solid reception with less risk of dropout. An Audinate Brooklyn II card provides the DANTE connectivity feature set required to successfully integrate into a new or an existing DANTE network.
The rear panel houses the AC power inlet, RF I/O for channels A and B via BNC connection, transformer-balanced audio output via a 3-pin XLR and 6.35mm jack sockets for channels 1 and 2, word clock I/O via BNC, 48/96kHz 24-bit AES3 digital audio output via 3-pin XLR, Ethernet connection via RJ-45 network connection, and 48/96kHz 24-bit DANTE connection also via RJ45 socket. The front of the receiver has two OLED displays, one for each of the two channels, showing information including name, RF signal, AF level, transmitter battery status, frequency selection, group, and menu functionality. Controls per channel include a rotary control to navigate through the menu, and four preset buttons to 'escape' (ESC), save, sync, and monitor. A 6.35mm jack headphone output is situated on the left, along with a rotary headphone volume control. A power button is located on the right side of the front panel.
Power source: 90-240V AC, 50/60Hz, 35W maximum. Dimensions: 483 x 373 x 44 (WxDxH)mm. Weight: 5.2kg, approximately.
Included accessories: 1x UK mains cable, quick guide, safety guide, 2x antennas, 2x 50ohm BNC antenna cables, 2x rubber feet.
EM-6000 Receiver - Rack mounting - 470-714MHz
This has all the features of the EM-6000 DANTE with the exception of the DANTE capabilities. This model can not be upgraded to add DANTE functionality.
SKM-6000 Transmitter - Handheld
The SKM6000 is a handheld transmitter with a magnesium housing, designed for vocal whether singing or speaking. The body-only transmitter is compatible with optional capsules from the 2000 series, Digital 9000 series, Neumann KK204/205 series and Sennheiser Evolution G4 series, see SENNHEISER MICROPHONES - Headworn. The optional BA-60 battery pack is available as either the 504700 which takes 2x AA option cells or the 504702 Lithium Ion battery pack, which gives up to 5.5hours of operation. The power button is situated at the bottom of the front side of the microphone.
A low cut-off frequency can be adjusted in steps from 60/80/100/120Hz, with a capable audio frequency response of 30Hz to 20kHz (3dB). Audio gain can be adjusted in steps of 3dB from 0dB to +62dB can be set by the operator for maximum compatibility for the attached capsule. A screen is situated on the main body of the handheld transmitter, displaying important information including frequency, signal, battery life, grouping and more. Three cursor buttons are situated near the base of the microphone allowing the operator or engineer to navigate the menu and adjust settings to their requirements.
The transmitter is offered in three frequency bands:
Power consumption: 960mW. Operating time: 5.5 hours (with LI battery pack). Dimensions: 270 x 40 (LxD)mm. Weight: 350g, approximately, with BA60 battery pack and microphone head.
Included accessories: 1x MZQ 9000 microphone clamp, safety guide, quick guide.
SK-6212 Transmitter – Miniature Belt pack
This moisture and sweat resistant bodypack transmitter has been designed to be ‘ultra-compact’ and lightweight for use in musicals, theatre and broadcast applications. The physical design has rounded corners for easy concealment under or within clothing. SK6212 is operational for up to 12hours with the optional BA-62 lithium-polymer rechargeable battery. A ‘Long-Range’ RF mode enables the user to combine within a system of Digital 9000 or EK6042 slot-in type receiver. The Beltpack transmitter uses AES256 encryption for the 14mW RMS (standard more) or 4mW RMS (low power mode) radio frequency transmission. SK6212 is capable of tuning in 25kHz steps for ‘intermodulation-free’ transmission.
Like the SK6000 the SK6212 features a display on the front with three buttons for up, down, and select/enter. A power button is located above the screen on the front facing side. A green LED signifies power on. Both aerial connection and 3-pin locking microphone connector are positioned on the top edge of the Beltpack transmitter. The included antenna is removable via threaded connector. Both horizontal and vertical orientation belt clips are included to suit a wider range of positions. These belt clips are also available as spares as 508570 (horizontal) and 508571 (vertical).
The transmitter is offered in three frequency bandwidths:
Dimensions: 63 x 47 x 20mm (HxWxD). Weight: 112g.
Included accessories: Belt clip, aerial, carry case.
SK-6000 Transmitter - Belt pack
With many of the operating features as the SKM6000, the SK6000 is a belt pack transmitter housed in a lightweight magnesium casing. It has a Sennheiser, 3-pin, locking connector for use with lapel microphones such as the MKE 2-4-GOLD, 92-980, MKE 2-4-3-GOLD, 92-992. The CI 1-4, cable can also be used to connect to high output instruments such as electric guitar. It can be powered by the BA-61, 504701 battery compartment for 2x AA 1.5V batteries or the BA-61 504703 Lithium Ion battery pack to provide up to 5.5 hours of operation. The transmitter is capable of an audio frequency response of 30Hz to 20kHz (3dB); a low-cut frequency can be adjusted in steps from 30/60/80/100/120Hz.
Like the SKM6000 the SK6000 features a display on the front with three buttons for up, down, and select/enter. A power button is located on the top side along with audio input and antenna connection. A removable, push-and-turn antenna can be removed for storage.
The transmitter is offered in three frequency bandwidths:
Power consumption: 960mW maximum. RF power output: 25mW RMS, 50mW peak. Input impedance: 22k ohms, microphone; 1M ohms, line. Dimensions: 76 x 62 x 20mm (HxWxD) with BA-61 battery pack. Weight: 147g, with BA-61 and belt clip.
Included accessories: 1x belt clip, 1x antenna, safety guide, quick guide.
Battery compartment holds 2x AA 1.5V batteries. This is compatible with SKM6000 handheld transmitter.
BA-61 (504701) Battery cart
Battery compartment holds 3x AA 1.5V batteries. This is compatible with SK6000 belt pack transmitter.
Rechargeable Lithium Ion 1600mAh battery for SKM6000 handheld transmitter.

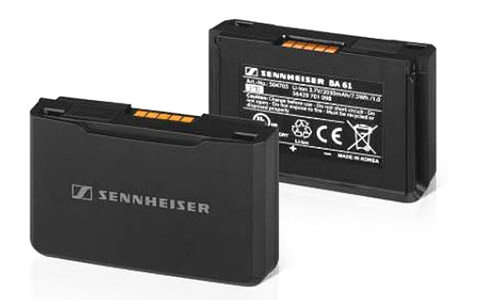

BA-61 (504703) Battery
Rechargeable Lithium Ion 2030mAh battery for SK6000 belt pack transmitter.
Rechargeable Lithium Ion 1180mAh battery for SK6212 belt pack transmitter.
L-6000 Battery Charger
This is a 1U rack-mounting battery charger to house up to four LM6060/6061 charger cores. Three colour LEDs indicate battery charge status and an RJ45 Ethernet connection allows control via external WSM (Wireless Systems Manager) software.
LM-6060 Battery charger core
Battery charger core to accommodate 2x BA-60 batteries. Compatible with the L-6000 rack-mounting charger.
LM-6061 Battery charger core
Battery charger core to accommodate 2x BA-61 batteries. Compatible with the L-6000 rackmount charger.
LM-6062 Battery charger core
Battery charger core to accommodate 2x BA-62 batteries. Compatible with the L-6000 rackmount charger.
