A range of audio, video and data connection plates, that are fully compatible with the RPP 'Easyclip' modular system. 'Full' modules are 50mm x 50mm, 'half' modules are 25mm x 50mm.
Manufactured by Ikon AVS Ltd.
Full Modules
Front panel HDD15 socket for VGA and rear 90 degree HDD15 socket allowing the use of pre-made VGA cables. The module is also fitted with two gold plated RCA(phono) sockets for audio (labelled left and right) with rear panel solder connections. Depth required: 35mm Note: Due to the size of a VGA plug, this module should always be used at the right hand location within a 100mm frame.
Front panel HDD15 socket for VGA with rear screw terminals. All pins are available. The module is also fitted with two gold plated RCA(phono) sockets for audio (labelled left and right) with rear panel solder connections. Depth required: 35mm.
Front panel HDD15 socket for VGA and rear 90 degree HDD15 socket allowing the use of pre-made VGA cables. The module is also fitted with three gold plated RCA(phono) sockets, one for video (yellow) and two for audio (labelled left and right) with rear panel solder connections. Depth required: 35mm.
Front panel HDD15 socket for VGA with rear screw terminals. All pins are available. The module is also fitted with three gold plated RCA(phono) sockets, one for video (yellow) and two for audio (labelled left and right) with rear panel solder connections. Depth required: 35mm.
Front panel HDD15 socket for VGA and rear 90 degree HDD15 socket allowing the use of pre-made VGA cables. Also fitted with a 3.5mm 3-pole jack socket for audio, with rear panel solder connection. Depth required: 35mm.
Front panel HDD15 socket for VGA with rear screw terminals. All pins are available. Also fitted with a 3.5mm 3-pole jack socket for audio, with rear panel solder connection. Depth required: 35mm.
Front panel HDMI socket linked internally to a rear HDMI socket, for use with pre-made HDMI cables. Depth required: 20mm plus connector.
Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Depth required: 20mm.
EP-HDMI-ST
Front panel HDMI socket terminated internally onto screw terminals allowing the shortening of HDMI cables to minimise losses. Depth required: 35mm.
EP-HDMI+AH
Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Also fitted with two gold plated RCA(phono) sockets for audio (labelled left and right) with rear panel solder connections. RCA(phono) and HDMI connections arrayed horizontally. Depth required: 20mm.

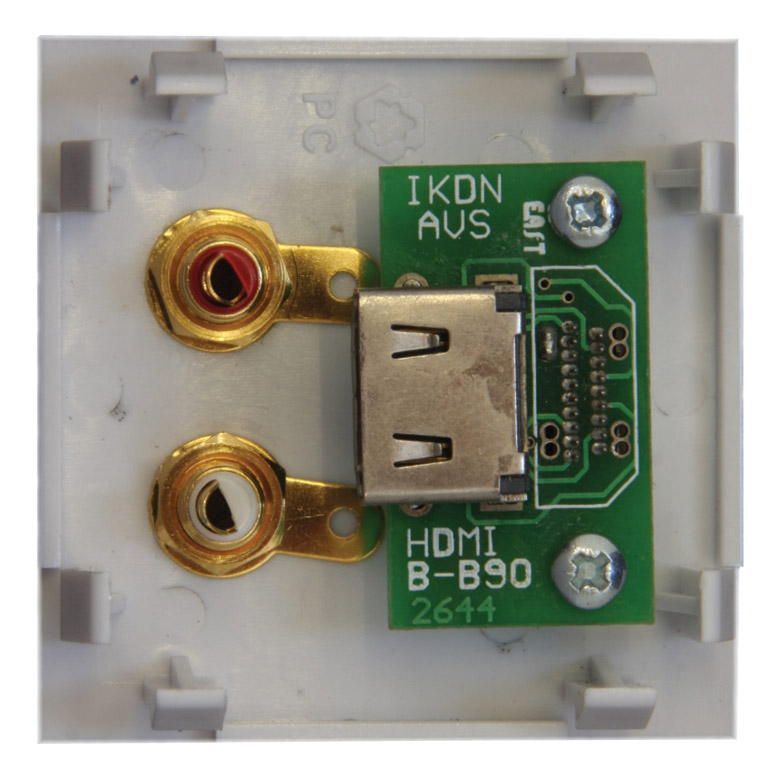

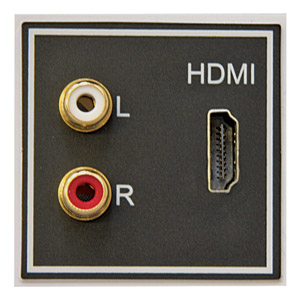

Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Also fitted with two gold plated RCA(phono) sockets for audio (labelled left and right) with rear panel solder connections. RCA(phono) and HDMI connections arrayed vertically. Depth required: 20mm.
Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Also fitted with three gold plated RCA(phono) sockets, one for video (yellow) and two for audio (labelled left and right) with rear panel solder connections. RCA(phono) and HDMI connections arrayed horizontally. Depth required: 20mm.
Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Also fitted with three gold plated RCA(phono) sockets, one for video (yellow) and two for audio (labelled left and right) with rear panel solder connections. RCA(phono) and HDMI connections arrayed vertically. Depth required: 20mm.
Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Also fitted with three gold plated RCA(phono) sockets, for component video (labelled Pr, Pb and Y) with rear panel solder connections. RCA(phono) and HDMI connections arrayed horizontally. Depth required: 20mm.
Front panel HDMI socket linked internally to a rear 90 degree HDMI socket , for use with pre-made HDMI cables. Also fitted with three gold plated RCA(phono) sockets, for component video (labelled Pr, Pb and Y) with rear panel solder connections. RCA(phono) and HDMI connections arrayed vertically. Depth required: 20mm.
Dual output buffer. The front HDD15 sockets are for the XVGA input and loop to a monitor whilst the rear connections are via screw terminals for RGBH&V. The unit has a signal presence LED and requires an external 12V DC supply at 60mA. It is capable of driving signals 60 metres and has a 260MHz bandwidth. Depth required: 35mm.
Half Modules
Two gold plated RCA(phono) sockets for audio (labelled left and right) with rear panel solder connections. Depth required: 15mm.
Three gold plated RCA(phono) sockets, one for video (yellow) and two for audio (labelled left and right) with rear panel solder connections. Depth required: 15mm.
Three gold plated RCA(phono) sockets, for component video (labelled Pr, Pb and Y) with rear panel solder connections. Depth required: 15mm.
Front panel HDD15 socket for VGA with internal screw terminals. All pins are available. Depth required: 35mm.
Front panel HDD15 socket for VGA and rear HDD15 socket allowing the use of pre-made VGA cables. Depth required: 10mm plus connector.
Front panel USB type A socket with internal screw terminations. Depth required: 15mm.
Two gold plated binding post screw and 4mm plug loudspeaker connectors (red, black), rear connection solder plus4mm socket. Depth required: 15mm.
Ordering Note:
Faceplates should be ordered separately as required, from the RPP 'Easyclip' Modular Connection System range.
