These intercom stations have a spring-steel clip to fasten to a belt. They connect to a suitable network switch, which provides power over ethernet, via an RJ45 connector and ethernet cable. An XLR connector is provided for a headset which is used for communication with other intercom stations connected to the network.

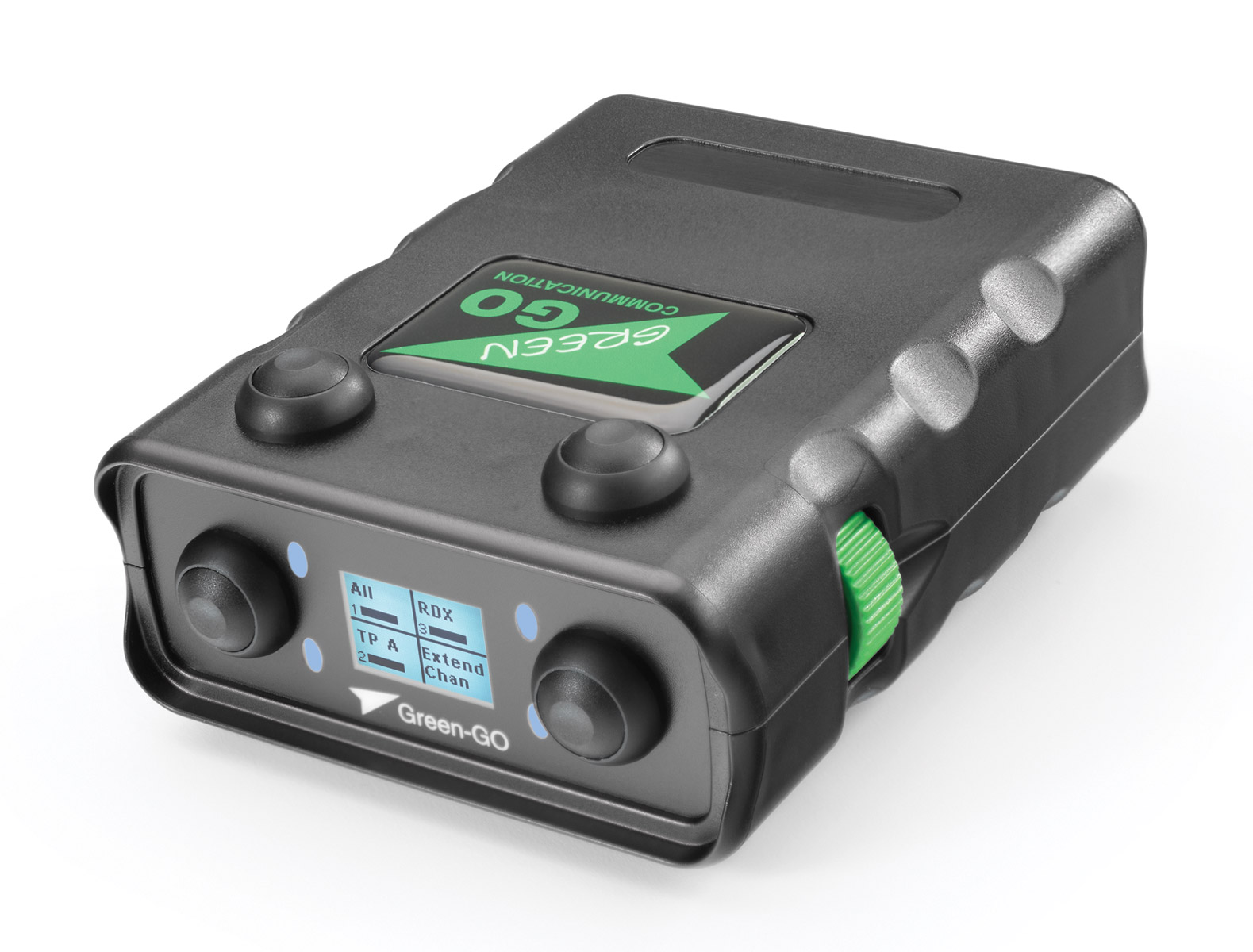

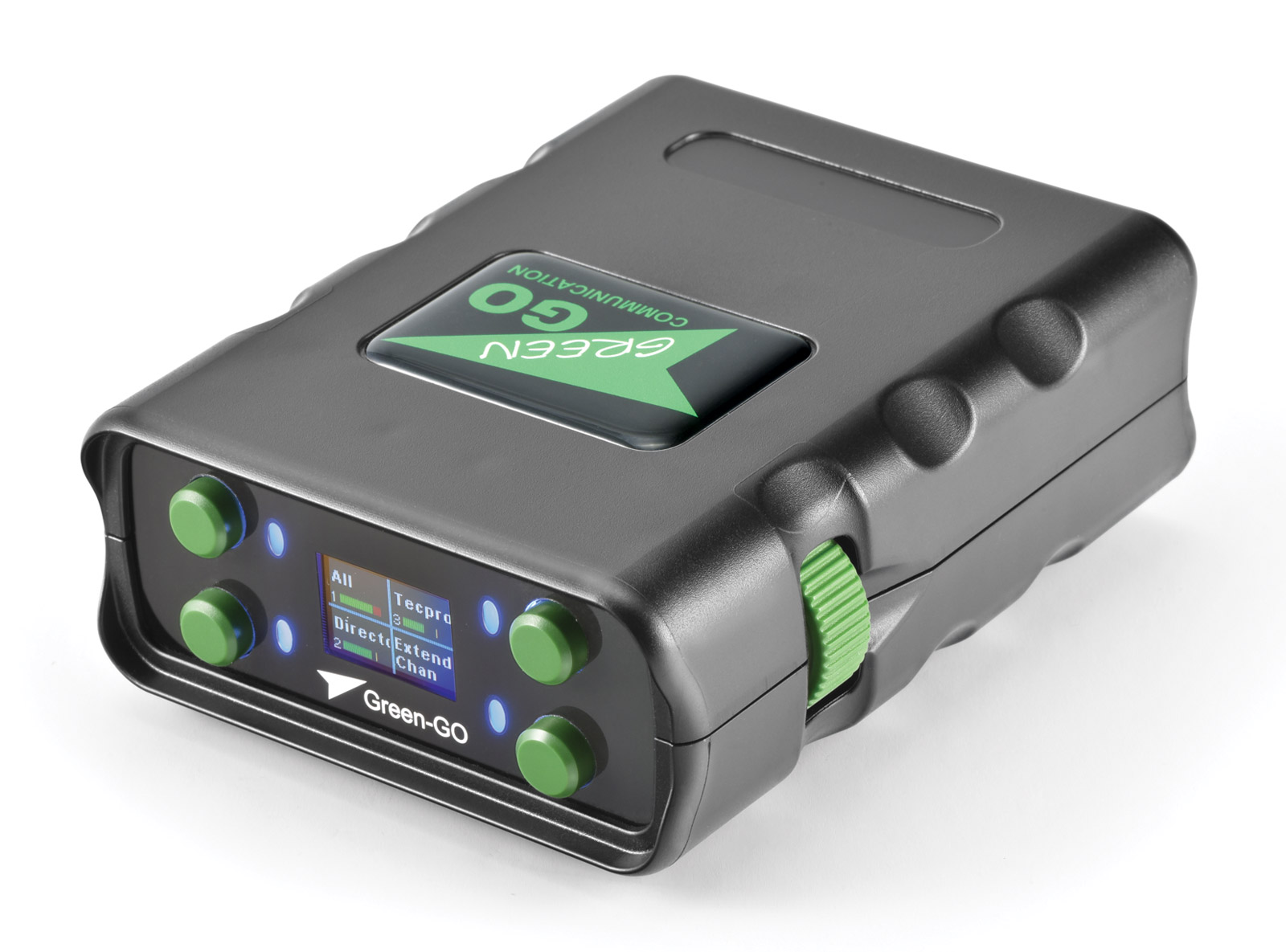

GGO-BPX Wired Beltpack
- Full duplex, high quality audio, low latency
- 2, 3 and 4 channel operation, selectable
- Select from 32 channel options held in memory
- Powerful headphone amplifier
- Tough, lightweight, weather-resistant ABS case
- Powered by PoE
- Comprehensive feature set
Green-GO BPX beltpacks share most features with their WBPX wireless siblings, making switching between wired and wireless devices easy, with no need to learn additional operating procedures.
The tough, lightweight ABS case is weather resistant, making it suitable for sports and other outside events. A rear mounted belt clip provides a solid fixing to clothing.

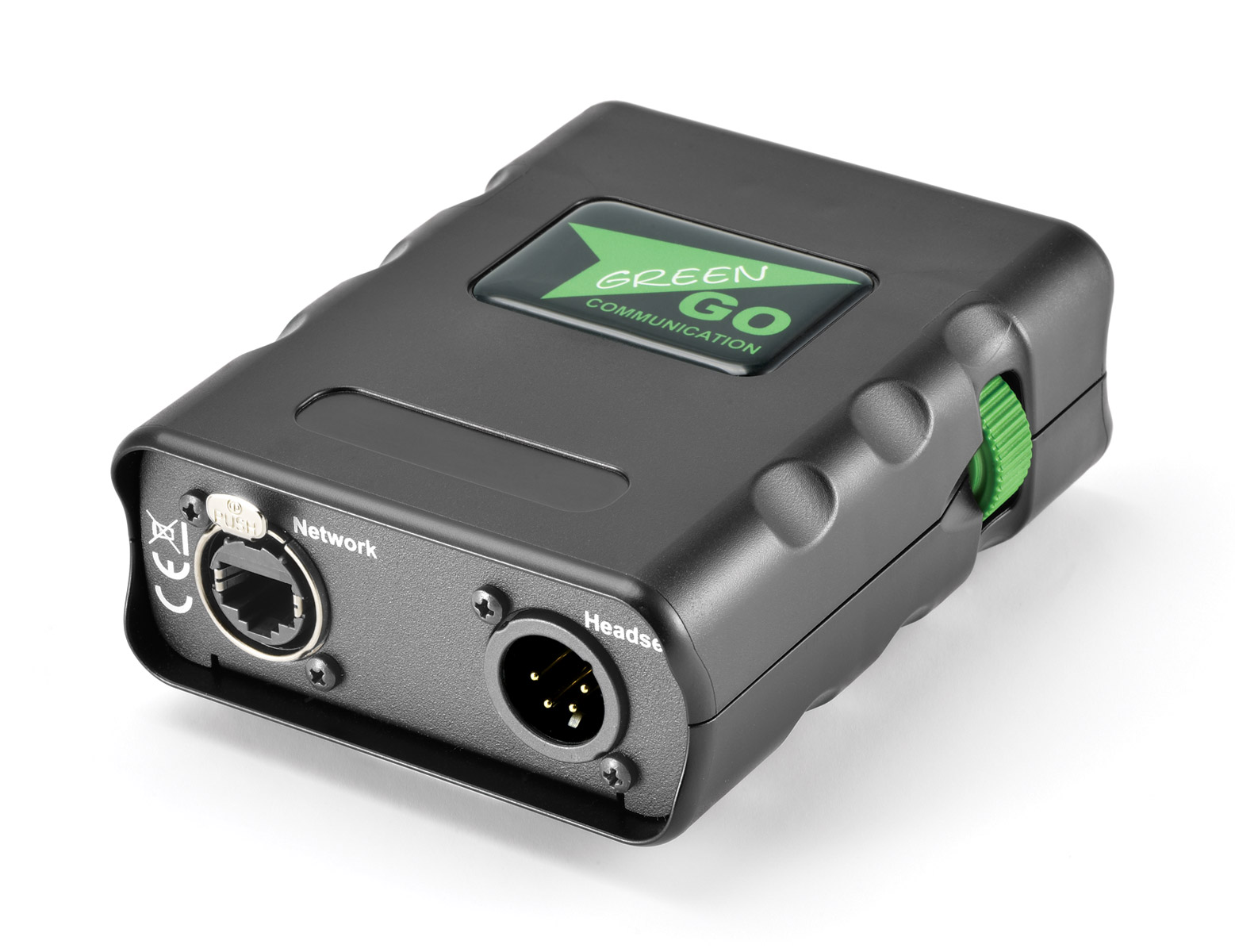

To operate, BPX beltpacks require PoE (Power over Ethernet). A Neutrik EtherCON connector accepts either EtherCON or RJ45 connectors. EtherCON is recommended as it provides a solid fixing together with strain relief for the cable end.
BPX beltpacks offer 2, 3 or 4 channel operation. In common with other green-GO user stations, they can store within the memory of the device a mixture of up to 32 groups or users which can be swiftly assigned to any of the four channels. Unassigned channels can still be accessed using the 'extended channels' function.
Four push buttons provide latching and non-latching microphone switching. The bright, multi-colour Oled display shows each channel's status together with 'Call Alerts', 'Cue' prompts and other information. The brightness of the display may be adjusted to suit the environment.
Two dual-function rotary-encoder wheels, positioned on either side of the beltpack, allow easy operation by left and right handed users. Each encoder wheel can be programmed to offer main volume, side tone, or programme audio level.
For clearer monitoring, the audio level of each of the four intercom channels may be set locally to ensure each channel can be heard at a sensible level. Overall audio level can be adjusted to suit.
Basic beltpack information is displayed on the Oled screen when either of the encoder wheels is pulled upwards until it clicks. Lifting both wheels upwards accesses the menu for editing, where a wide range of options can be set. These include channel selection (2, 3 or 4), channel assign, comprehensive audio settings, set 'User', system configuration.
The 4-pin, male, XLR, headset connectors are compatible with headsets with an impedance greater than 32 ohms and fitted with mating connectors such as those from Tecpro, Beyer and many other brands. If the microphone type is an electret, a switchable bias voltage is available.
