Canare

30-620

CANARE L-4E6S CABLE BlackBlack

Canare L-4E6S

CANARE L-4E6S CABLE Black

Image may be provided for illustrative purposes only, please refer to the product description.

CANARE L-4E6S CABLE BlackCANARE L-4E6S CABLE Black

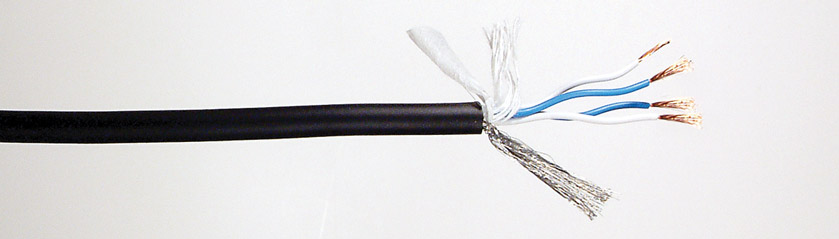

CANARE L-4E STARQUAD MICROPHONE CABLE - Deployable

The star-quad design for microphone cables, where 4 conductors are used in pairs, with a short lay length, to cancel out the effects of external electromagnetic noise, is well known in demanding applications such as TV, video and theatre where thyristor lighting control systems are in use. The cables are, of course, also suitable for line level signals. The cables are extremely flexible, using fine stranded copper cores and soft PVC jacketing, and handling noise is minimised by the use of cotton fillers. An irradiated polyethylene core insulation provides a low capacitance dielectric, and its high temperature resistance minimises run-back during soldering.

L-4E5C version is a narrow profile version, very popular as a boom cable.

L-4E5AT is a foil screened installation version of this design – see separate details.

Multi starquad cables (L-4E3-P series) are available to special order, supplied as full reels of 100 metres.

Technical Specification:
Conductors: 40/0.08mm (0.2mm²) (L-4E6S), 30/0.08mm (0.15mm²) (L-4E5C)
Insulation: Irradiated polyethylene, two blue, two white
Lay up: Four wires twisted together with lay length 20mm (L-4E6S), 18mm (L-4E5C)
Screen: Tinned copper braid, 95% coverage
Overall jacket: Soft PVC, 6.0mm OD (L-4E6S), 4.8mm OD (L-4E5C)
Capacitance: 160pF/m
Weight: 5.0kg/100m (L-4E6S), 3.4kg/100m (L-4E5C)
Reel length: 200 metres
Cut lengths: Available in any multiple of 1 metre.
USAGE NOTE: White + White for A leg
Blue + Blue for B leg
  Description Price (£) Add to basket
CANARE L-4E5C CABLE Black Black Stock code:
Please login for stock availability and lead times.
1+ £1.73
100+ £1.38
500+ £1.35
1,000+ £1.30
per metre
CANARE L-4E6S CABLE Black Black Stock code: 30-620
Please login for stock availability and lead times.
1+ £1.76
100+ £1.41
500+ £1.37
1,000+ £1.32
per metre
CANARE L-4E6S CABLE Red Red Stock code:
Please login for stock availability and lead times.
1+ £1.76
100+ £1.41
500+ £1.37
1,000+ £1.32
per metre
CANARE L-4E6S CABLE Blue Blue Stock code:
Please login for stock availability and lead times.
1+ £1.76
100+ £1.41
500+ £1.37
1,000+ £1.32
per metre
CANARE L-4E6S CABLE Grey Grey Stock code:
Please login for stock availability and lead times.
1+ £1.76
100+ £1.41
500+ £1.37
1,000+ £1.32
per metre
