Clearance price
£0.32 £0.05
Saving £0.27 per metre (ex. VAT)

2651 available at clearance price

2651 in stock. This item is discontinued, available only while stocks last.
The clearance price is only applicable to stock in our warehouse that we want to clear. If you order more than the indicated clearance stock they may be charged at full price.
RoHS Status Compliant

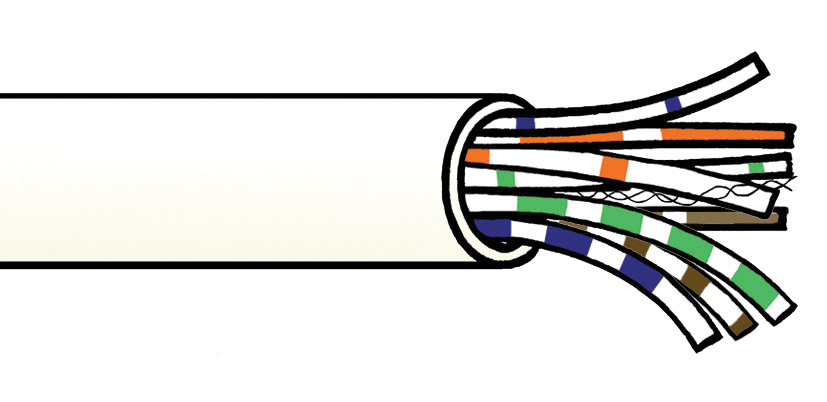

CW SERIES - UNSCREENED SOLID CONDUCTOR MULTIPAIR TELECOMS CABLE

Cable according to British Telecom specifications CW1700 ("OSCA" voice and data cable - ISDN).

Has twisted pairs of 1/0.5mm tinned copper cores, PVC insulated and is colour coded to code CW1308 (see linked resource Cable Colour Codes). A thicker core insulation compared to CW1308, gives lower pair capacitance values (less than 80pF/m) and different twinning lengths and pair lay-up give better crosstalk performance.

Suitable for termination in standard Krone IDC blocks.

Technical Specification:
Conductors: 1/0.5mm (0.196mm2) tinned copper wire.
Insulation: PVC, O.D. 1.0mm.
Overall jacket: White PVC, O.D. 6.2mm.
Weight (kg/100m): 4.2kg.
Reel lengths: 200 metres.
Cut lengths: Available in any multiple of 1 metre, minimum 10 metres.
