CANFORD SDV-F CABLE Black

Stock code
36-550
Brand
Canford
Model number
  • SDV-F
Colour
  • BlackBlack
CANFORD SDV-F CABLE Black

Image may be provided for illustrative purposes only, please refer to the product description.

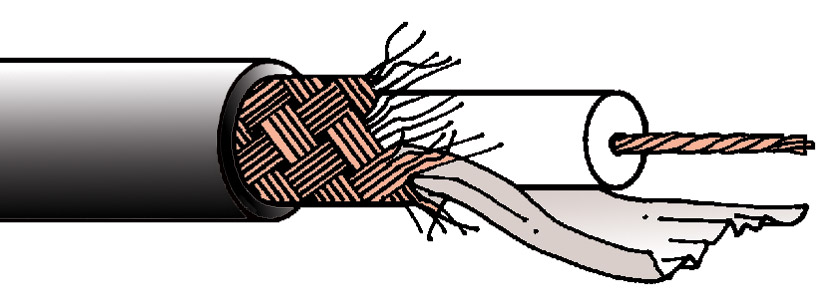

CANFORD SDV-F - HDTV DIGITAL VIDEO CABLE (1.0L/4.8) Flexible

Flexible low-loss coaxial 75 ohm cable for both serial digital and analogue video signals. It is constructed to have maximum flexibility whilst maintaining a very high level of performance, and is suitable for both deployable applications and patchcords. A special semi-matt finish PVC composite jacket material helps retain flexibility at lower outdoor temperatures. Suitable crimp BNCs, MUSAs and strain relief bushes are available - see index.

Technical Specification:
Cable size group: Y (but note that for Coax Connectors, size code “FC1” MUST be used, “FC” is not suitable - for BNC 3G use 48-5047 or 48-5057, for BNC 12G use 48-5067 or 48-5077)
Inner conductor: 19/0.2mm (0.60 mm²) plain copper
Dielectric: Gas injected foam high density polyethylene, 4.8mm OD
Screen 1: Aluminium/polyester tape, coverage 100%
Screen 2: Tinned copper braid, optical coverage 45%
Construction: Coaxial cable
Jacket: Soft, semi-matt PVC, various colours
Overall diameter: 6.8mm
Minimum bend radius: 35mm
Impedance: 75 ohms
Capacitance: 54pf/m nominal
Return loss: 18dB 47-450MHz
14dB 450-900MHz
Attenuation: MHz 1 5 10 135 180 270
dB/100m 1.00 1.85 2.62 8.71 10.06 12.50
MHz 360 720 1000 1500 3000 4500
dB/100m 14.35 21.82 25.71 37.66 53.25 65.22
Velocity of propagation: 80%
Temperature range: -30° to +90°C
Weight: 4.3kg/100m
Reel length: 500m
Cut lengths: Available in any multiple of 1 metre
  Description Price (£) Add to basket
Show carriage
CANFORD SDV-F CABLE Black Black Stock code: 36-550
Please login for stock availability and lead times.
1+ £1.85
100+ £1.48
500+ £1.44
1,000+ £1.39
per metre
CANFORD SDV-F CABLE Red Red Stock code: 36-552
Please login for stock availability and lead times.
1+ £1.85
100+ £1.48
500+ £1.44
1,000+ £1.39
per metre
CANFORD SDV-F CABLE Green Green Stock code: 36-555
Please login for stock availability and lead times.
1+ £1.85
100+ £1.48
500+ £1.44
1,000+ £1.39
per metre
CANFORD SDV-F CABLE Blue Blue Stock code: 36-556
Please login for stock availability and lead times.
1+ £1.85
100+ £1.48
500+ £1.44
1,000+ £1.39
per metre
CANFORD SDV-F CABLE Violet Violet Stock code: 36-557
Please login for stock availability and lead times.
1+ £1.85
100+ £1.48
500+ £1.44
1,000+ £1.39
per metre
CANFORD SDV-F CABLE White White Stock code: 36-559
Please login for stock availability and lead times.
1+ £1.85
100+ £1.48
500+ £1.44
1,000+ £1.39
per metre
