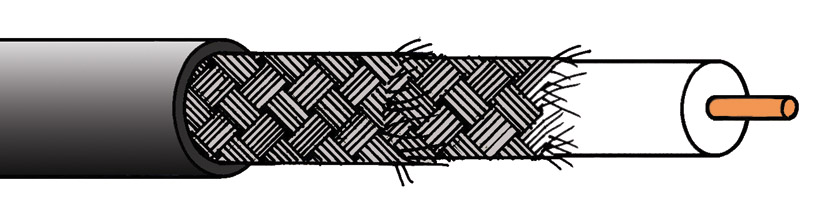

CANFORD SDV-F-UHD - HDTV DIGITAL VIDEO CABLE (1.8s/7.7Dz)

CANFORD SDV-F-UHD CABLE Black
CANFORD SDV-F-UHD CABLE Black

Coaxial 75 ohm cable designed specifically for 12G, 4K (SMPTE 2082), UHD applications. Constructed for maximum flexibility whilst maintaining a very high level of performance over longer distances.

Note: See suitable connectors for this cable in the drop-down lists below the full cable specification.

Technical Specification:
Cable size group: Not in Canford scheme
Inner conductor: Solid silvered copper, 1.80mm OD
Dielectric: Gas injected foam high density polyethylene, 7.74mm OD
Screen 1: Tinned copper braid
Screen 2: Tinned copper braid
Outer wrap: Polyester web
Construction: Coaxial cable
Jacket: Flexible PVC hybrid, black
Overall diameter: 10.9mm
Minimum bend radius: 81.75mm
Impedance: 75 ohms
Capacitance: 56pf/m nominal
Return loss: 26dB 50-300MHz
22dB 300-3000MHz
Attenuation: MHz 1 10 100 300 500
dB/100m 0.41 1.51 4.54 7.71 10.88
Contd: MHz 1000 2000 3000 5000 10000
dB/100m 15.01 20.67 24.97 33.37 51.25
Velocity of propagation: 80%
Temperature range: -20° to +75°C
Weight: 13.3kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
Suitable connectors outlined below.

BNC Male - 12G

Manufactured specifically for Canford by Draka Prysmium Multimedia.

'SDV' is a registered trademark of Canford Audio Limited.

Description Price $
 Add to basket
CANFORD SDV-F-UHD CABLE Black Black Stock code: 36-650
679 in stock Need more?
1+ $12.10
100+ $9.67
500+ $9.43
1,000+ $9.07
per metre
