DRAKA 60015142 HD PRO FLEX 1.0L/4.8 Dz PVC Black

Stock code
36-924
Brand
Draka
Model number
  • HD PRO FLEX 1.0L/4.8 Dz
Colour
  • BlackBlack
DRAKA 60015142 HD PRO FLEX 1.0L/4.8 Dz PVC Black
DRAKA 60015142 HD PRO FLEX 1.0L/4.8 Dz PVC Black

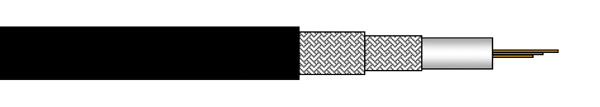

DRAKA 1.0L/4.8Dz - HDTV DIGITAL VIDEO CABLE Flexible

Flexible coaxial 75 ohm cable for both serial digital and analogue video signals. It is constructed to have maximum flexibility whilst maintaining a high level of performance, and is suitable for both deployable applications and patchcords. A semi-matt finish PVC composite jacket material helps with flexibility.

Technical Specification:
Cable size group: Y
Inner conductor: Stranded bare copper wire, 1.0mm OD
Dielectric: Foam high density polyethylene, 4.8mm OD
Screen 1: Tinned copper braid
Screen 2: Tinned copper braid
Construction: Coaxial cable
Jacket: Soft flexible PVC, black
Overall diameter: 7.0mm
Minimum bend radius: 45mm
Impedance: 75 ohms
Capacitance: 56pf/m nominal
Return loss: 26dB 50-300MHz
22dB 300-3000MHz
Attenuation:MHz 1 10 100 300 500 1000 3000 4000 5000
dB/100m 0.5 1.9 8.0 14.00 17.30 25.80 49.00 57.10 67.10
Velocity of propagation: 67%
Temperature range: -30° to +75°C
Weight: 8.0kg/100m
Reel length: 1000m
Cut lengths: Available in any multiple of 1 metre
