CANFORD OPTO SWITCHER

Please note that this version has now been replaced by the Mk.2 version, stock code 42-6701.

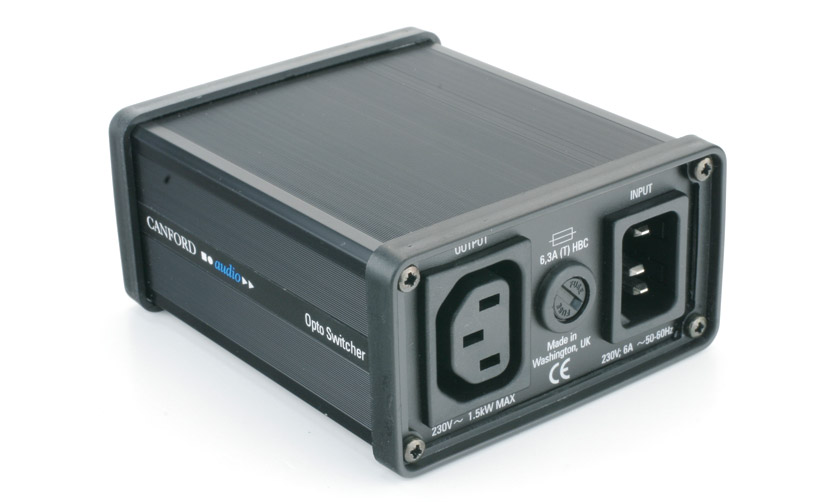

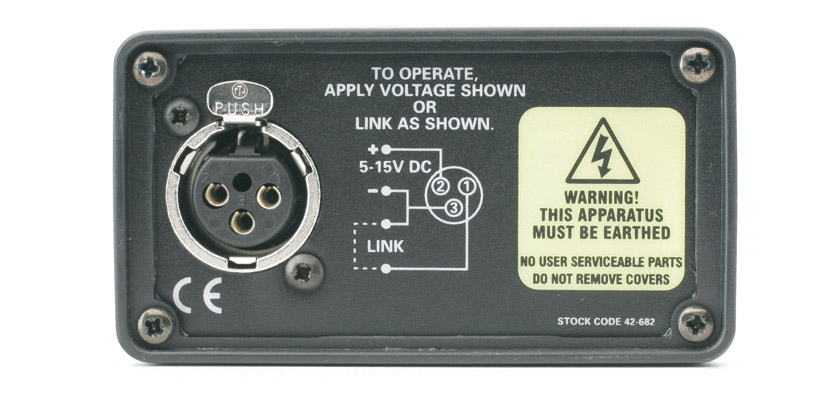

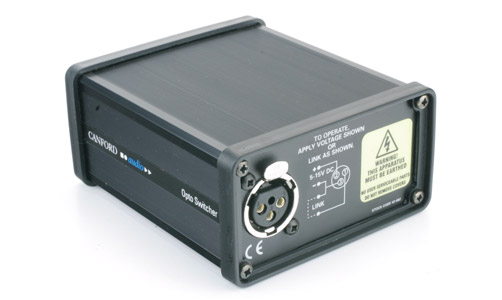

This free-standing unit allows the remote switching of mains powered equipment such as illuminated signs, cue lights etc., while maintaining electrical isolation from the mains. Control on type 42-682 is implemented using either a closing contact across XLR pins 1 & 3, or by applying 5-15 volts DC across XLR pins 2 & 3. Switching occurs at the zero-crossing point of the mains cycle, which, together with spike suppression components, ensures that interference is virtually eliminated. Mains input and output connectors are IEC (CEE22) 3 pole with a 20mm fuse on the input line. The control input uses an XLR 3 pin female panel connector.

Mating connector stock codes:

Technical Specification:

The control voltage may be increased up to 50V DC by adding a 1k resistor in series with the positive input.

Application note: The switcher can supply a current of up to 8mA when switched off, so it may not be suitable for driving very light loads e.g. some LED lights etc.

WARNING: THE CASE IS CONNECTED TO MAINS EARTH – ALWAYS USE MAINS EARTH!
