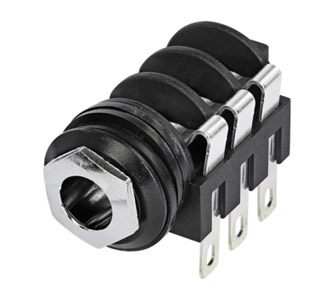

NEUTRIK NMJ6HC-S JACK SOCKET

Stock code
43-209
Brand
Neutrik
Model number
  • NMJ6HC-S
NEUTRIK NMJ6HC-S JACK SOCKET
NEUTRIK NMJ6HC-S JACK SOCKET

NEUTRIK JACK SOCKETS - NMJ series - Panel type

These solder connection and horizontal PCB mounting panel mount 6.35mm jacks offer a wide variety of combinations of contacts and mounting options. They are available in mono and stereo versions with switching and non-switching contacts, and three nose types - fully threaded, half threaded and chrome ferrule.

Fully-threaded and chrome-nose jacks are supplied with washer and fixing nut. Half-threaded nose types are NOT supplied with washer and fixing nut, so mounting hardware should be ordered separately as required.

NMJ2 is 2-pole (mono) with unswitched contacts
NMJ3 is 3-pole (stereo) with unswitched contacts
NMJ4 is 2-pole (mono) with switched contacts
NMJ6 is 3-pole (stereo) with switched contacts
Versions available
HC-S Chrome ferrule, solder lugs
HCD2 Chrome ferrule, straight PCB pins
HCD3 Chrome ferrule, offset PCB pins
HF-S Fully threaded nose, solder lugs
HFD2 Fully threaded nose, straight PCB pins
HFD2-AU Fully threaded nose, straight PCB pins, gold plated contacts
HFD3 Fully threaded nose, offset PCB pins
HFD4 Fully threaded nose, fishtail PCB pins
HHD2 Half threaded nose, straight PCB pins
