CANFORD BNC 3G HD TERMINATION PANEL 2U Angled 2x20 BNC HD 75 ohm, grey

3Gb/s 1080p HDTV, 1.5Gb/s 1080i HDTV, SDTV, Analogue and Unbalanced 75ohm AES Audio

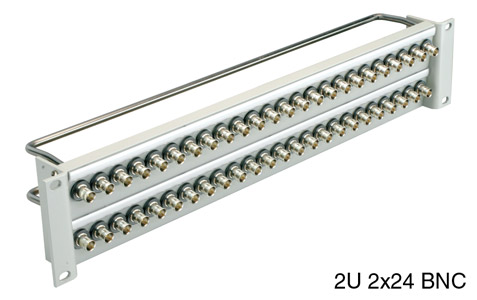

Angled termination panels, supplied fully populated with Canford insulated double-sided, 'High Definition' 75 ohm BNC HD 3Gb/s sockets equally spaced across the panel. suitable for 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE292M and SMPTE424M making them suitable for composite and component video, 270 Mb/s SDI and uncompressed 1080i or 1080p HD-SDI video up to 3Gb/s.

Manufactured from a unique profile aluminium-extrusion with integral rear bracing-bar. The front face of the panel is angled down by 7.5 degrees from vertical, relieving stress on mated cables and maintaining clear access at the rear. Connectors are equally spaced across the panel which is both lightweight and extremely rigid.

Panels are fitted with short cranked lacing-bar extending only 65mm from the rear of the panel to allow for tight cable routing. A snap-on cover designation-strip holder is fitted above each connector row to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.

Available finished in Dawn Grey (BS4800-10A03) and Black. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.

Panels may be engraved or screen printed to special order.

Custom connector populations and layouts are available to special order. For further information or a quotation please contact the custom metalwork team via email, custommetal@canford.co.uk. Alternatively contact Sales. A minimum quantity or charge may apply.

Manufactured by Canford.
