Neutrik

46-531

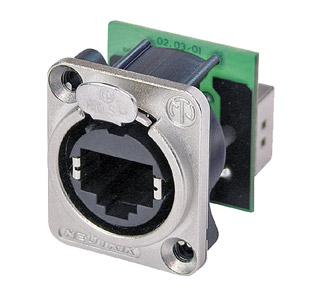

NEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthrough

Neutrik NE8FDP

NEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthrough

NEUTRIK ETHERCON CAT5E CONNECTORS Panel types

A range of ruggedized Cat5E connectors, using proven Neutrik style body-shells, cable clamping, and positive latching mechanisms. The panel connectors are integrated into the main Neutrik ranges, permitting easy mounting in Universal Series panels and other pre-punched metalwork.

The Ethercon was designed for data transfer interconnections where a more robust connector is required than the basic RJ45, and are especially suitable for location and outdoor applications, stage, studio and other commercial and industrial environments. It utilises the robust Neutrik latch rather than the delicate plastic latch on the RJ45 (which is disabled in the Ethercon application).

Panel connectors are available in Neutrik’s A, B and D series formats. The A series are plastic bodied, with optional coloured plastic escutcheons. B series are metal bodied with nickel plated finish. D series are also metal bodied with nickel plated finish, and suit Canford’s “Universal” series panels and stageboxes. Connections are for horizontal or vertical PCB mounting, or with an integrated Krone IDC block for direct wire termination. An additional screening pin is provided on PCB mounting types, which connects with metal side screens in the RJ45 mating recess. The IDC version has the same side screens, but in this case screen continuity is provided by a special metal plate that contacts securely with and over the cable screen. A “back-to-back” version is available in the D-series format, this has an RJ45 socket at the rear.

All panel-mounting connectors are supplied singly complete with mounting screws, or in bulk packs without mounting screws. Panel fastening of the A series connectors is by self-tapping screws, type PT, with thread 2.9 x 1.06 (DIN7990), stock codes 40-927(pan head) and 40-932 (countersunk), and for B series is by M2.5 self-tapping screws with tri-rondular threads; available with countersunk (40-928, 40-929) or pan (40-931) heads. D-series format Ethercon connectors are secured via self-tapping screws much like the A series but require a longer 12mm length, stock codes 40-933 (pan head) and 40-934 (countersunk).

Ethercon comply with IEC1801 Category 5 (IDC and vertical PCB version panel connectors), shielded or unshielded, and are suitable for use with 10 Base-T and 100 Base-TX systems.

Types available:

NE8FAH A-series panel mounting, plastic shell, horizontal PCB mounting
NE8FAV A-series panel mounting, plastic shell, vertical PCB mounting
NE8FAV-SD A-series panel mounting, plastic shell, vertical PCB mounting, with two additional rear screw domes for fixing the connector on the PCB
NE8FAV-YK A-series panel mounting, plastic shell, Krone IDC termination
NE8FBH B-series panel mounting, metal shell, horizontal PCB mounting
NE8FBV B-series panel mounting, metal shell, vertical PCB mounting
NE8FBH-S B-series panel mounting, metal shell, horizontal mounting, fully enclosed with metal shielding can
NE8FBH-LED B-series panel mounting, metal shell, horizontal mounting, fully enclosed with metal shielding can, and with light pipes around can to front panel. These are illuminated by standard 3mm LEDs mounted on the PCB (not supplied).
NE8FDH-C5E D-series panel mounting, metal shell, horizontal PCB. Cat5E component level compliant RJ45 receptacle
NE8FDV D-series panel mounting, metal shell, vertical PCB mounting
NE8FDV-B D-series panel mounting, black metal shell, vertical PCB
NE8FDV-YK D-series panel mounting, metal shell, Krone IDC termination
NE8FDV-YK-B D-series panel mounting, black metal shell, Krone IDC termination
NE8FDP D-series panel mounting, metal shell, back-to-back feedthrough
NE8FDP-B D-series panel mounting, black metal shell, back-to-back feedthrough
SE8FD Sealing kit for D-series Ethercon, to achieve a waterproof (to IP54) connection when mated with NE8MC-1. Comprises replacement front plate and latch plus sealing gasket
  Description Price (£) Add to basket
NEUTRIK NE8FAH ETHERCON Panel mounting, horizontal PCB   Stock code:
Please login for stock availability and lead times.
1+ £4.10
10+ £3.73
50+ £3.53
100+ £3.12
NEUTRIK NE8FAV ETHERCON Panel mounting, vertical PCB   Stock code:
Please login for stock availability and lead times.
1+ £4.10
10+ £3.73
50+ £3.53
100+ £3.12
NEUTRIK NE8FAV-SD ETHERCON Panel mounting, vertical PCB   Stock code:
Please login for stock availability and lead times.
1+ £4.42
10+ £4.02
50+ £3.80
100+ £3.36
NEUTRIK NE8FAV-YK ETHERCON Panel mounting, Krone IDC termination   Stock code:
Please login for stock availability and lead times.
1+ £8.04
10+ £7.32
50+ £6.91
100+ £6.11
NEUTRIK NE8FBH ETHERCON Panel mounting, horizontal PCB   Stock code:
Please login for stock availability and lead times.
1+ £4.60
10+ £4.19
50+ £3.96
100+ £3.50
NEUTRIK NE8FBH-S ETHERCON Panel mounting, horizontal PCB, shielded   Stock code:
Please login for stock availability and lead times.
1+ £5.32
10+ £4.84
50+ £4.58
100+ £4.04
NEUTRIK NE8FBH-LED ETHERCON Panel mounting, horizontal PCB, LEDs   Stock code:
Please login for stock availability and lead times.
1+ £6.44
10+ £5.86
50+ £5.54
100+ £4.89
NEUTRIK NE8FBV ETHERCON Panel mounting, vertical PCB   Stock code:
Please login for stock availability and lead times.
1+ £4.60
10+ £4.19
50+ £3.96
100+ £3.50
NEUTRIK NE8FDH-C5E ETHERCON Panel mounting, horizontal PCB, Cat5E receptacle   Stock code:
Please login for stock availability and lead times.
1+ £9.62
10+ £8.75
50+ £8.27
100+ £7.31
NEUTRIK NE8FDV ETHERCON Panel mounting, vertical PCB   Stock code:
Please login for stock availability and lead times.
1+ £4.78
10+ £4.35
50+ £4.11
100+ £3.63
NEUTRIK NE8FDV-B ETHERCON Panel mouning, black, vertical PCB Black Stock code:
Please login for stock availability and lead times.
1+ £5.14
10+ £4.68
50+ £4.42
100+ £3.91
NEUTRIK NE8FDV-YK ETHERCON Panel mounting, Krone IDC termination   Stock code:
Please login for stock availability and lead times.
1+ £8.78
10+ £7.99
50+ £7.55
100+ £6.67
NEUTRIK NE8FDV-YK-B ETHERCON Panel mnt, black, Krone IDC termination Black Stock code:
Please login for stock availability and lead times.
1+ £9.18
10+ £8.35
50+ £7.89
100+ £6.98
NEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthrough   Stock code: 46-531
Please login for stock availability and lead times.
1+ £9.08
10+ £8.26
50+ £7.81
100+ £6.90
NEUTRIK NE8FDP-B ETHERCON Panel mounting, black, back-to-back feedthrough Black Stock code:
Please login for stock availability and lead times.
1+ £9.38
10+ £8.54
50+ £8.07
100+ £7.13
NEUTRIK SE8FD ETHERCON Sealing kit for D-series types   Stock code:
Please login for stock availability and lead times.
1+ £2.54
10+ £2.31
50+ £2.18
100+ £1.93
NEUTRIK ACRF-0 XLR Escutcheon for A- and BA-series, black Black Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-1 XLR Escutcheon for A- and BA-series, brown Brown Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-2 XLR Escutcheon for A- and BA-series, red Red Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-3 XLR Escutcheon for A- and BA-series, orange Orange Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-4 XLR Escutcheon for A- and BA-series, yellow Yellow Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-5 XLR Escutcheon for A- and BA-series, green Green Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-6 XLR Escutcheon for A- and BA-series, blue Blue Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-7 XLR Escutcheon for A- and BA-series, violet Violet Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-8 XLR Escutcheon for A- and BA-series, grey Grey Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK ACRF-9 XLR Escutcheon for A- and BA-series, white White Stock code:
Please login for stock availability and lead times.
1+ £0.18
10+ £0.16
50+ £0.15
100+ £0.14
NEUTRIK NE8FAV-YK ETHERCON Panel mounting, Krone IDC termination (pack of 20)   Stock code:
Please login for stock availability and lead times.
1+ £139.40
5+ £131.00
per pack
NEUTRIK ETHERCON NE8FDV-YK Panel mounting, Krone termination (pack of 20)   Stock code:
This item is discontinued. See the product page for suggested alternatives.
per pack
NEUTRIK NE8FDV-YK-B-D ETHERCON Panel mnt, black, Krone IDC termination (pack of 20) Black Stock code:
Please login for stock availability and lead times.
1+ £159.80
5+ £150.20
per pack
NEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthrough (pack of 20)   Stock code:
Please login for stock availability and lead times.
1+ £154.90
5+ £145.60
per pack
NEUTRIK NE8FDP-B ETHERCON Panel mount, blk, back-to-back feedthrough (pack of 20)   Stock code:
Please login for stock availability and lead times.
1+ £160.70
5+ £151.00
per pack
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, pan, black (pack of 100) Black Stock code:
Please login for stock availability and lead times.
1+ £4.00
5+ £3.76
per pack
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, csk, black (pack of 100) Black Stock code:
Please login for stock availability and lead times.
1+ £2.44
5+ £2.29
per pack
NEUTRIK XLR FIXING SCREWS For B series, countersunk, nickel (pack of 100) Nickel Stock code:
Please login for stock availability and lead times.
1+ £6.28
5+ £5.90
per pack
NEUTRIK XLR FIXING SCREWS For B series, countersunk, black (pack of 100) Black Stock code:
Please login for stock availability and lead times.
1+ £4.16
5+ £3.91
per pack
NEUTRIK XLR FIXING SCREWS For B series, pan, black (pack of 100) Black Stock code:
Please login for stock availability and lead times.
1+ £8.64
5+ £8.12
per pack
NEUTRIK FIXING SCREWS For D-series Ethercon, pan, (pack of 100)   Stock code:
Please login for stock availability and lead times.
1+ £1.48
5+ £1.39
per pack
NEUTRIK FIXING SCREWS For D-series Ethercon, csk, (pack of 100)   Stock code:
Please login for stock availability and lead times.
1+ £3.28
5+ £3.08
per pack
