K&M (König & Meyer) offer a range of stable, steel, floor-mounting stands for monitor loudspeakers complementing the existing range of loudspeaker stands. All floor standing models are manufactured with a telescopic steel stem and have a black finish. Stem height is adjustable by locking screw and safety pin or spring-loaded knob with clamp.
26772 Monitor Stand - Table top
This table top monitor stand has been designed from steel to hold monitors up to 15kg in weight. The top bearing plate measures 150 x 170mm and the height is adjustable from 167-254mm. The base, with has four rubber pads for stability and noise filtration, measures 214 x 214mm. Weight: 3.41kg.
26774 Monitor Stand - Table top
This monitor stand has the same feature set as the 26772 however it has been designed with greater monitor bearing plate dimensions of 230 x 250mm. Like 26772 the height is adjustable from 167-254mm, and the weight capacity is 15kg, however the base dimensions are larger at 290 x 295mm. Weight: 5.26kg.
26720 Monitor Stand - Three leg base
A steel stand with a fixed, screw-in, three-leg base, height range 680-1140mm. The top mounting plate is 205 x 245mm, with four rubber knobs on the upper surface. Internal cable routing through the stem is available. Maximum load capacity: 0 35kg. Weight: 5.35kg.

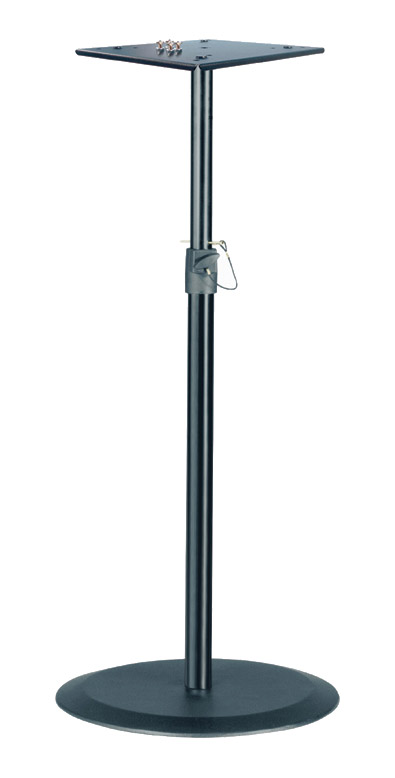

26740 Monitor Stand - Round base
This has a circular cast-iron base, diameter 450mm; height ranges from 950-1430mm. The top is 205mm x 245mm and incorporates four threaded support points and four rubber knobs on the upper surface to provide a degree of acoustic decoupling. Monitors with a 3/8 inch threaded insert (minimum depth 12mm) may be mounted directly onto the stand without use of the mounting plate. Maximum load capacity: 35kg. Weight: 9.88kg.
26785 Monitor Stand - For Genelec 8000 series
An elegant, steel stand with a 420 x 420mm cast-iron base; height ranges from 1100-1700mm. Specifically for use with the Genelec 8000 monitor series - the loudspeaker is mounted to the stand by means of a mounting plate and four M6 x14mm screws. The loudspeaker, complete with mounting plate, is then suspended from a bar at the top of the stem, with the weight of the monitor holding the unit in place. Vertical tilting of the monitor from -10 to +10 degrees is also possible, with it's position being locked via a large, knurled, locking-screw. Internal cable routing through the stem is available. Weight: 14.5kg.
26795 Monitor Stand - Heavy duty
Similar in design to the 26785, with a 480 x 480mm cast-iron base this is suited to holding heavier loads. It has a telescopic steel stem combination of 76/60mm in diameter ,with a height range from 794-1344mm. Internal cable routing through the stem is available. Maximum load capacity: 70kg. Weight: 17.5kg. Designed to work with the K&M 26792 bearing plate which is available in three sizes (240x200mm, 320x280 and 420x380) depending on the size of the monitor loudspeaker.
For a range of accessories for use with these floor mounting stands see K&M LOUDSPEAKER STANDS - Accessories.
