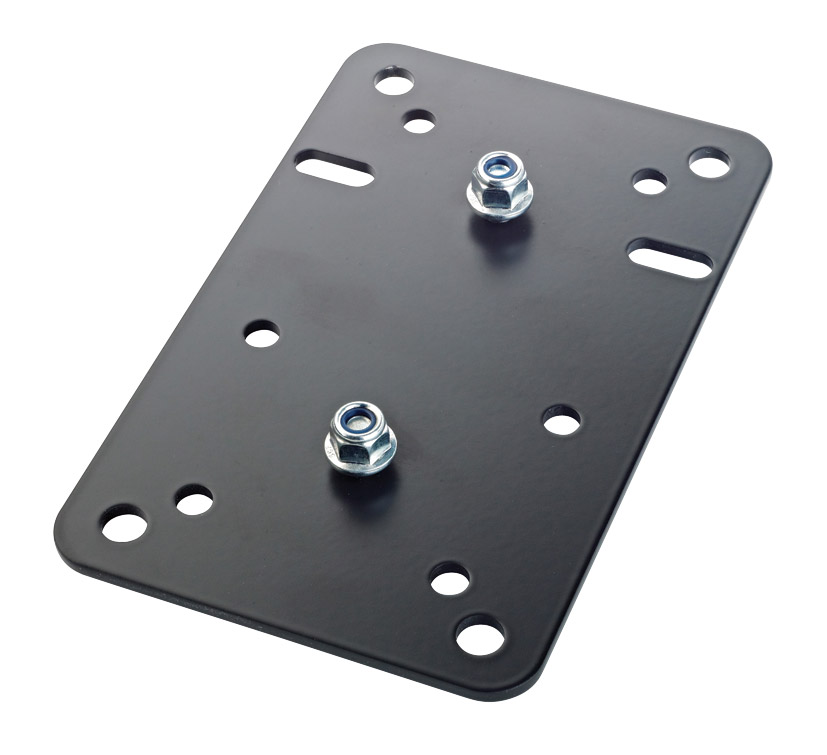

K&M 24352 UNIVERSAL MOUNTING BRACKET Vertical, multiple mounting templates, black

21406

Packaged in pairs, these cable clamps are suitable for speaker or lighting stands with diameters of 35-42mm. The 'wear-resistant' plastic clamp allows for neat placement of cables for safety and aesthetic uses.

21320

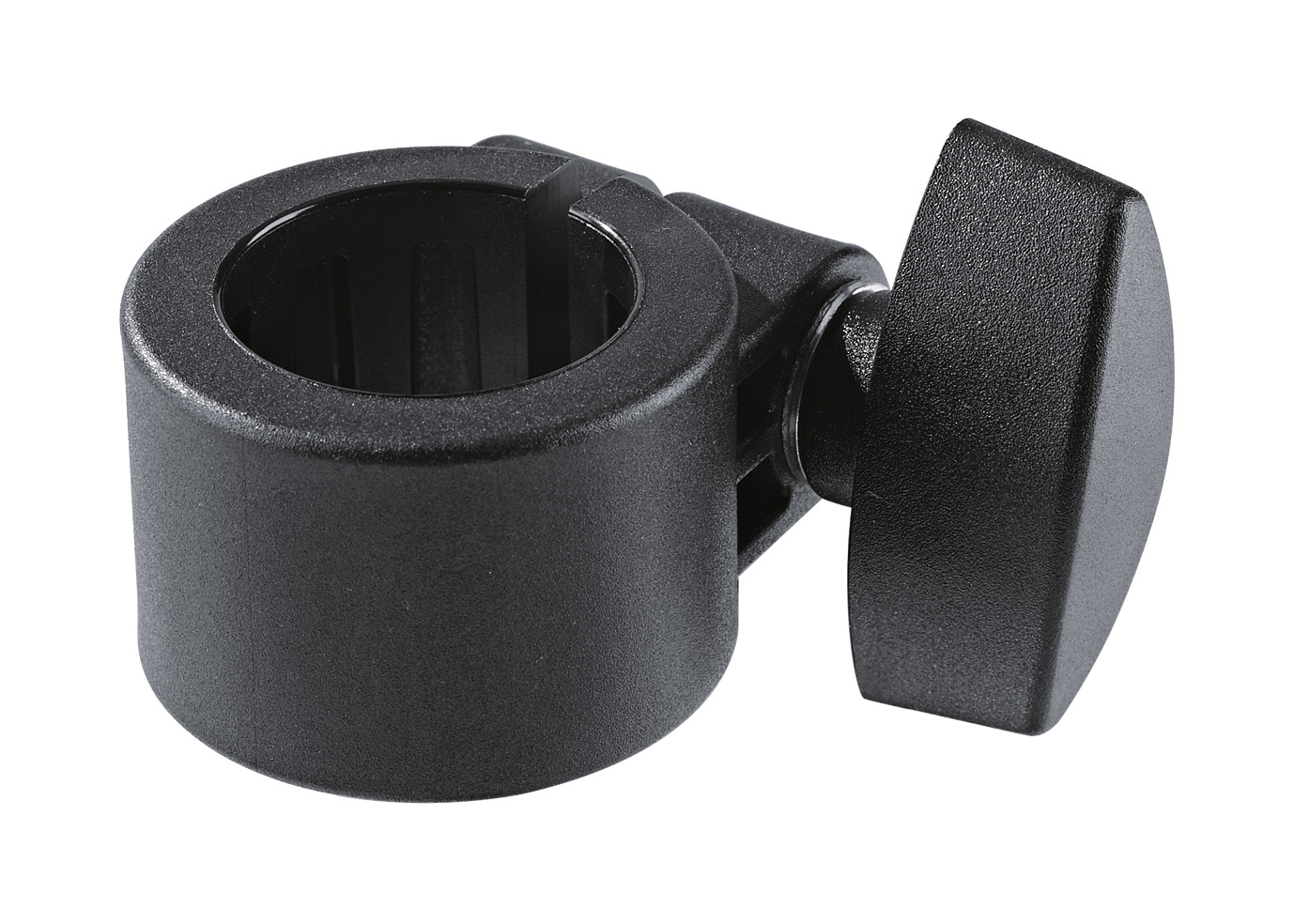

Available in two sizes, 21320 safety ring is designed to be slid over the extension tube of a speaker or lighting stand, and lock in place to prevent stand slippage. Both variants are manufactured from 'impact-resistant' plastic and are black in colour.

Options:

External Flange Plates

195/8

'External' flange for mounting onto the bottom of equipment. Locking-screw to tighten onto top of stand. Suits all stands with 35mm spigot. Flange plate dimensions 175 × 110mm, height 140mm. Two slots 9.5mm × 35mm, fixing centres range 100-152mm. Weight: 0.68kg.

24281

'External' flange for mounting onto the bottom of speakers. Locking screw to tighten onto top of stand. Suits all stands with 35mm spigot. Flange plate dimensions 146 x 40mm, height 105mm. Two 11mm mounting holes with fixing centres of 115mm. Weight: 0.56kg.

24116

This connector plate is designed to be mounted in a subwoofer as inverted 'top-hat'. It is compatible with distance rods terminating with M20 bolt. Weight: 0.24kg

19654

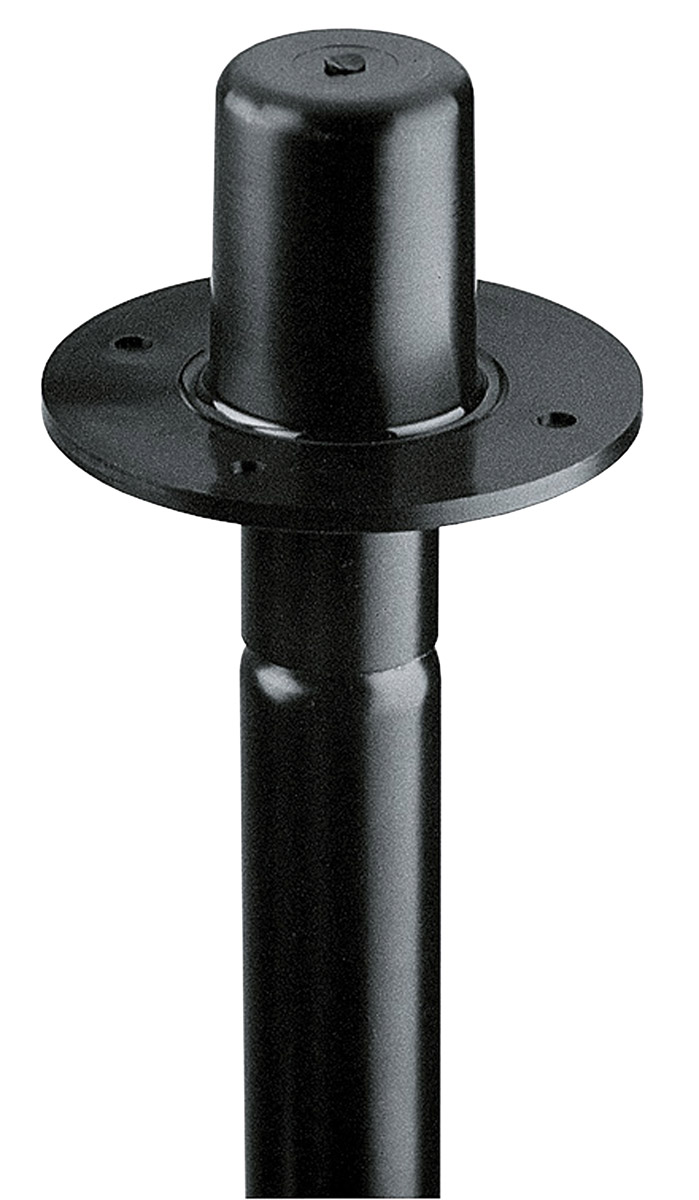

'Internal', plastic, 'top-hat' flange-adapter for the bottom of loudspeakers, secured via four 6.5mm mounting holes on flange plate. Slips onto all stands with a 35mm spigot. Flange plate diameter 105mm with a depth of 60.5mm. Weight: 0.077kg.

19656

'Internal', zinc, die-cast, 'top-hat' flange-adapter for the bottom of loudspeakers, secured via four 6.5mm mounting holes on flange plate. Slips onto all stands with a 35mm spigot. Flange plate diameter 105mm with a depth of 75mm. Weight: 0.34kg.

19665

'Internal', plastic coated, steel, 'top-hat' flange-adapter for the bottom of loudspeakers, secured via four 6.5mm mounting holes on flange plate. Slips onto all stands with a 25mm spigot. Flange plate diameter 105mm with a depth of 78mm. Weight: 0.38kg.

24521

Available in four sizes, 24521 reducing flange adapters are designed to convert a 35mm diameter speaker pole to fit differing thread types or diameters. All models feature large hand knob for tightening.

Options:

24528

A reducer flange similar to 24521-000-55 however the M10 connection is female. Length: 100mm. Weight: 0.46kg

21326

Polyamide adapter sleeve for speaker flanges with an inside diameter of 38mm, suited to stands with spigots of 35mm diameter. Length: 102mm. Weight: 0.01kg.

24105

Stand adapter for the mounting of two speakers which are fitted with flange adapters. Suited to stands with spigots of 35mm diameter, secured by locking screw. Two speaker spigots 35mm diameter x 120mm are fixed to a T-bar with adjustable width of 310 - 490mm. Maximum load: 2x 25kg, Weight: 1.48kg.

19674

Speaker tilt adapter, fits and locks onto all stands with 35mm spigot. Provides a secondary 35mm spigot with angle adjustment from 0 degrees vertical to 15 degrees tilt, secured by a locking screw. Locks into speakers via expanding mandrel system controlled by easy-to-use ring-lock. Height 230mm, maximum load capacity 25kg, weight 0.85 kg.

19670

Speaker tilt adapter, fits and locks onto all stands with 35mm spigot. Provides a secondary 35mm spigot with angle adjustment from 0 degrees vertical to 15 degrees tilt, secured by a locking screw. Height: 300mm. Maximum load capacity: 25kg. Weight: 0.67kg.

19780

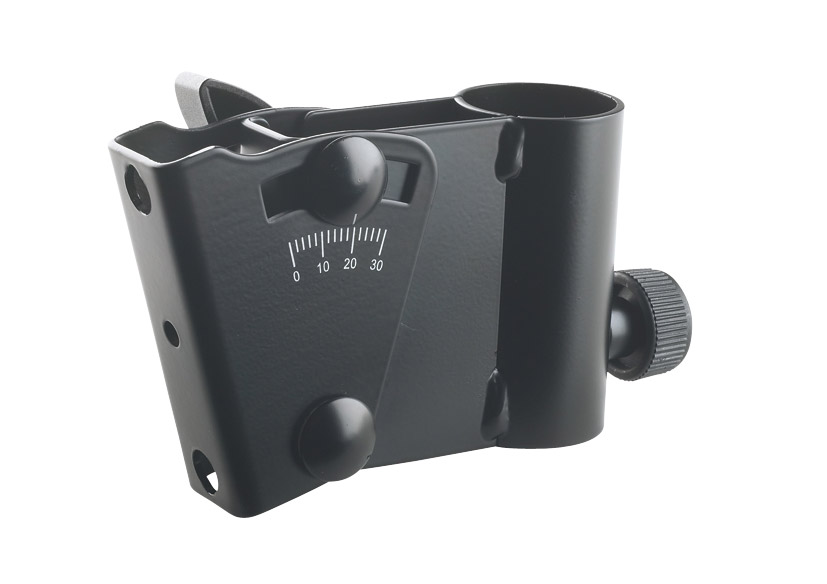

Stand adapter with tilt, for mounting equipment without the need for an incorporated flange. Suited to stands with a spigot diameter of 35mm, locking in position via clamping screw. Tilt adjustment of 30 degrees. two 10.5mm fixing holes with a fixing range of 70 - 76.2mm. Maximum load capacity: 15kg. Weight: 0.547kg.

26792 - Universal Monitor Plate

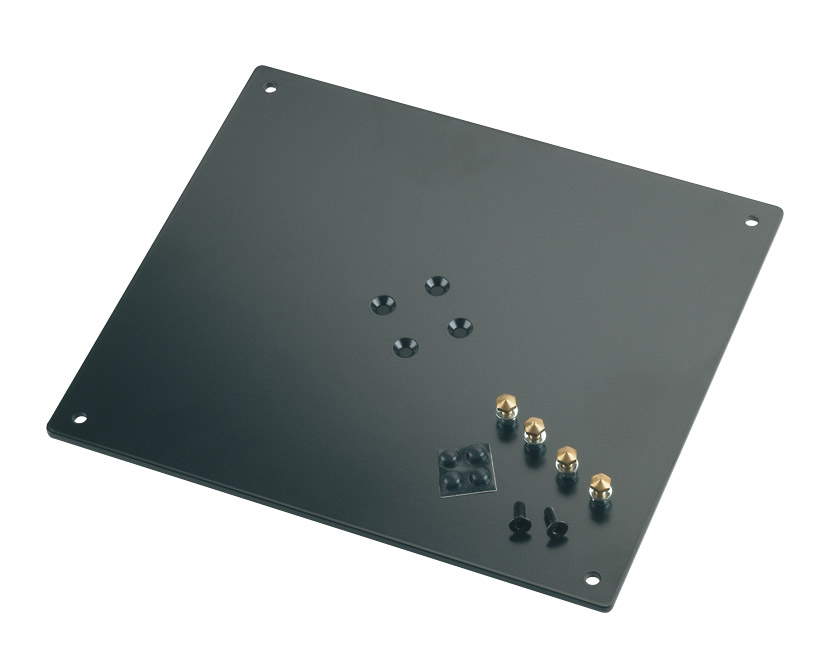

Support plate for monitor speakers, screws to the top of the K&M 26795 monitor stand. Available in three sizes: 240 x 5 x 200mm, 320 x 5 x 280mm and 420 x 5 x 380mm. Supplied complete with four rubber feet and four spikes.

19688 - For JBL Control 1 Pro

Stand adapter to mount the JBL Control 1 loudspeaker on a 3/8 inch threaded stud such as is found on a microphone stand. The adjustable bracket securely holds the base of the Control 1. A tilt adjustment of 250 degrees and locking knob allow the speaker to be positioned to the desired angle. Supplied with 3/8 inch to 5/8 inch thread adapter. Weight: 0.36kg.

21316

Carrying case - For up to two speaker stands. 1680D nylon material with separate internal compartments and padded handles. Case entry via dual zippered panel at the end of the case. Dimensions: 1200mm. Weight: 2.1kg.

21311

Carrying case – For up to two speaker/lighting stands. The waterproof nylon case has two inner compartments, each with zip fastener. Two handles can be tethered with wrap-around grip. Dimensions: 1200 x 250 x 250mm. Weight: 1kg

21422

Carrying case – For up to two monitor/speaker stands. Manufactured from waterproof nylon, access to the two inner compartments is by way of draw-string closure at one end of the bag. Two handles can be tethered with wrap-around grip. Dimensions: 1290 x 140 x 140mm. Weight: 0.36kg

21312

Carrying case – For up to two speaker/lighting stands. The waterproof nylon case has two inner compartments, each with zip fastener. Two handles can be tethered with wrap-around grip. Dimensions: 1200 x 250 x 250mm. Weight: 1.2kg
