AUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, yellow

Stock code
93-2131
Brand
AudioPressBox
Model number
  • APB-216 C-D
Colour
  • YellowYellow
AUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, yellow
AudioPressBox APB-216 C-D: Dante-enabled portable press boxAUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, yellowAUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, yellowAUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, yellow

AUDIOPRESSBOX CONFERENCE SPLITTERS - Dante Splitters

Dante enabled press splitters are used to avoid the unsightly clutter that results at events such as press conferences, when every broadcasting organisation present tries to erect a microphone directly in front of the speaker, precisely where the cameramen would rather they did not. The splitter takes a small number of inputs from microphones or the local mixer and distributes the signal to a large number of outputs for use by the media. AudioPressBox offer a comprehensive range of active and passive types in stage box, floor-box, desktop, rack and wall mounting formats as well as portable, cased, splitters and kits.

For a very limited number of broadcasters and journalists it may be possible to provide a set of outputs using multiple microphone splitters. However, this technique quickly increases the load on a microphone to the point where the signal quality is affected. A dedicated conference splitter will reduce clutter, be more reliable and prevent inter-action between the connections made by the different members of the media. Alternative terms for press splitter include 'conference splitter', 'presidential bridge', 'press box', 'multi box' and 'press distribution amplifier'.

Active splitters - Dante enabled

These Dante enabled splitters operate in much the same way as see AUDIOPRESSBOX CONFERENCE SPLITTERS – Active, however they have the capability of Dante audio input signals on RJ45 connection as the main input source.

APB-Dante products are PoE enabled whereby the power required (less than 2W for PoE) can be provided through the Ethernet cable from a PoE-capable network switch or compatible equipment. APB-112 IW-D includes a plastic in-wall installation box for flush finish. APB-112 OW-D is an on-wall splitter, and APB-112 SB-D is a portable press splitter.

APB-D116 R-D and APB-D216 R-D can be used as a drive unit for APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX, APB-P112 SB-EX.

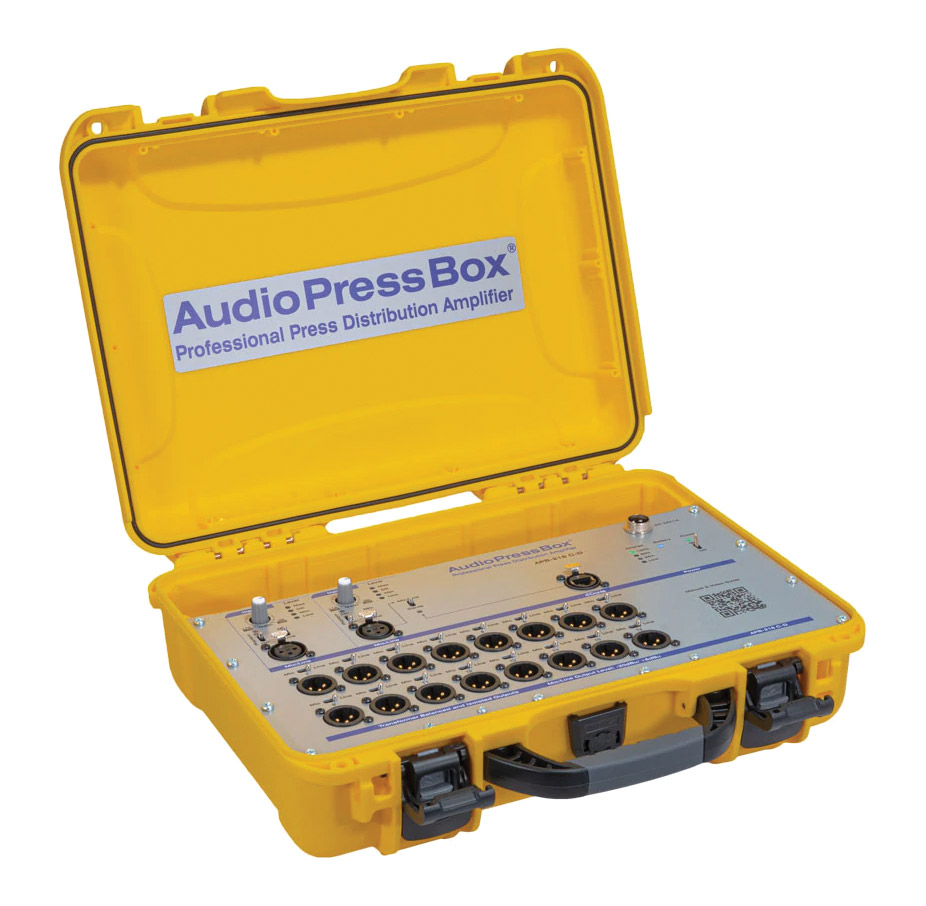

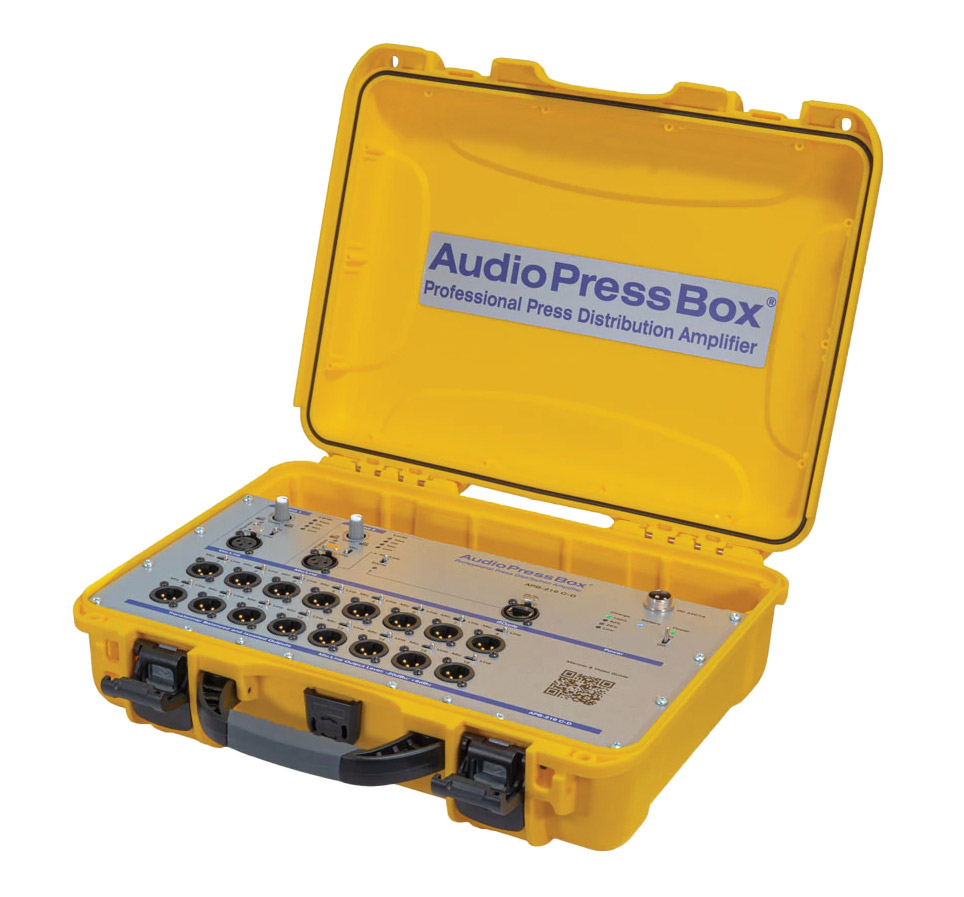

APB-216 C-D is a portable pressbox with two analogue inputs plus a single input channel by way of Dante. APB-320 C-D-USB has the addition of USB-C I/O. The Dante input requires PoE.

Specifications - Portable press splitters

APB-216 C-D APB-320 C-D-USB
I/O 2 in, 16 out 3 in, 20 out
Type Portable Portable
Dante input channels 1 1
Analogue inputs (mic/line) 2 2
USB inputs - 1x USB-C
Phantom power, 48V Yes Yes
Input connectors XLR/RJ45 XLR/RJ45/USB-C
Input gain mic +22/+62dB +22/+62dB
Input gain line -4/+36dB -4/+36dB
Input level, mic, max. -10/-30dBu -10/-30dBu
Input level, line, max. +36/-4dBu +36/-4dBu
Input impedance (mic/line) 2.4k/3.5ohms 2.4/3.5kohms
Analogue outputs 16 16
Analogue output connectors 3-pin XLR 3-pin XLR
Analogue output impedance (mic/line) 220/600ohm 220/600ohm
Digital outputs - 4
Type - USB-C
Channel level meter Yes Yes
Clip LED Yes Yes
High pass filter No No
Compressor/limiter Yes Yes
Output level meter No No
Dimensions (WxHxD) 370 x 120 x 300mm 370 x 120 x 300mm
Weight 4.8kg 5.1kg

Specifications - On-wall/In-wall press splitters

APB-112 OW-D APB-112 OW-D-USB APB-112 IW-D APB-112 IW-D-USB
I/O 1 in, 12 out 1 in, 12 out 1 in, 12 out 1 in, 12 out
Type Wallmount Wallmount In-wall In-wall
Dante input channels 1 1 1 1
Analogue inputs (mic/line) - - - -
USB inputs - - - -
Input connectors RJ45 RJ45 RJ45 RJ45
Analogue outputs 12 8 12 8
Analogue output connectors 3-pin XLR, balanced 3-pin XLR, balanced 3-pin XLR, balanced 3-pin XLR, balanced
Analogue output impedance (mic/line) 220/600ohm 220/600ohm 220/600ohm 220/600ohm
Digital outputs - 4 - 4
Type - USB-C - USB-C
Channel level meter No No No No
Clip LED No No No No
High pass filter No No No No
Compressor/limiter No No No No
Output level meter Yes Yes Yes Yes
Dimensions (WxHxD) 280 x 138 x 50mm 280 x 138 x 54mm 280 x 138 x 50mm 280 x 138 x 50mm
Weight 2.75kg 2.4kg 2.75kg 2.7kg

Specifications - Stagebox press splitters

APB-112 SB-D APB-112 SB-D-USB
I/O 1 in, 12 out 1 in, 12 out
Type Stagebox Stagebox
Dante input channels 1 1
Analogue inputs (mic/line) - -
USB inputs - -
Input connectors RJ45 RJ45
Analogue outputs 12 8
Analogue output connectors 3-pin XLR 3-pin XLR
Analogue output impedance (mic/line) 220/600ohm 220/600ohm
Digital outputs - 4
Type - USB-C
Channel level meter No No
Clip LED No No
High pass filter No No
Compressor/limiter No No
Output level meter Yes Yes
Dimensions (WxHxD) 295 x 138 x 100mm 295 x 138 x 100mm
Weight 2.8kg 2.8kg

Specifications - Rackmount press splitters

APB-D116 R-D APB-D216 R-D
I/O 1 in, 16 out 2 in, 16 out
Type 2U Rackmount 2U Rackmount
Dante input channels 1 2
Analogue inputs (mic/line) 1 2
USB inputs - -
Phantom power, 48V Yes Yes
Input connectors XLR/6.3mm/RJ45 XLR/6.3mm/RJ45
Input level, line, max. +32/+2dBu +32/+2dBu
Input impedance (mic/line) Over 5kohm Over 5kohm
Analogue outputs 16 16
Analogue output connectors 3-pin XLR 3-pin XLR
Analogue output impedance (mic/line) 220/600ohm 220/600ohm
Digital outputs - -
Channel level meter Yes Yes
Clip LED Yes Yes
High pass filter Yes Yes
Compressor/limiter Yes Yes
Output level meter Yes Yes
Buffered expander outputs 1 2x1
Maximum expander sockets 16+24 16+48
Dimensions (WxHxD) 480 x 135 x 90mm 480 x 135 x 90mm
Weight 3.41kg 3.46kg

Accessory Cables

The RC 3.5 -1 cable is intended for use between the mic or mic/line outputs of the splitters and expander units and recording equipment with 3.5mm jack inputs, microphone or line level, regardless of the stereo or mono configuration. The 3-pin female XLR contains electronic circuitry to provide level and impedance matching and DC blocking. The cable is 1.5m long.

The RC 3.5 - 8 is an eight-way cable which provides eight channels of the same functionality and is 3 metres long. It consists of an eight pair multipair cable, broken out into eight tails at each end.

  Description Price £
ex. VAT
Add to basket
Delivery
AUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, yellow Yellow Stock code: 93-2131
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£2,820.00
AUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, black Black Stock code: 93-2132
Ordered on demand, cancellations may incur charges, available in 3‑5 working days. Need it sooner? Call us
£2,820.00
AUDIOPRESSBOX APB-216 C-D PRESS SPLITTER Portable, Dante, active, 2x16, battery/mains, tan Tan Stock code: 93-2133
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£2,820.00
AUDIOPRESSBOX APB-320 C-D-USB PRESS SPLITTER Portable, Dante, USB-C, active, battery/mains, yellow Yellow Stock code: 93-2125
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£3,360.00
AUDIOPRESSBOX APB-320 C-D-USB PRESS SPLITTER Portable, Dante, USB-C, active, battery/mains, black Black Stock code: 93-2126
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£3,360.00
AUDIOPRESSBOX APB-320 C-D-USB PRESS SPLITTER Portable, Dante, USB-C, active, battery/mains, tan Tan Stock code: 93-2127
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£3,360.00
AUDIOPRESSBOX APB-112 OW-D PRESS SPLITTER Active, wallmount, Dante in, 12x mic/line out Stock code: 93-2175
Ordered on demand, available in 3‑5 working days. Need it sooner? Call us
£1,650.00
AUDIOPRESSBOX APB-112 OW-D-USB PRESS SPLITTER Active, wallmount, Dante in, 12x mic/line out, USB-C Stock code: 93-2179
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£1,720.00
AUDIOPRESSBOX APB-112 IW-D PRESS SPLITTER Active, in-wall, Dante in, 12x mic/line out Stock code: 93-2177
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£1,650.00
AUDIOPRESSBOX APB-112 IW-D-USB PRESS SPLITTER Active, in-wall, Dante in, USB-C out, 12x mic/line Stock code: 93-2180
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£1,720.00
AUDIOPRESSBOX APB-112 SB-D PRESS SPLITTER Active, portable, Dante in, 12x mic/line out Stock code: 93-2176
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£1,650.00
AUDIOPRESSBOX APB-112 SB-D-USB PRESS SPLITTER Active, portable, Dante in, USB-C out, 12x mic/line Stock code: 93-2170
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£1,720.00
AUDIOPRESSBOX APB-D116 R-D PRESS SPLITTER Active, 2U, 1x line/Dante in, 16x mic/line out Stock code: 93-2165
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£2,300.00
AUDIOPRESSBOX APB-D216 R-D PRESS SPLITTER Active, 2U, 2x line/Dante in, 16x mic/line out Stock code: 93-2166
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£3,060.00
AUDIOPRESSBOX RC 3.5-1 CABLE Female 3-pin XLR to 3.5 mm 3-pole jack with matching, 1.5 metres Stock code: 93-2145
Ordered on demand, available in 2‑3 working days. Need it sooner? Call us
£66.62
AUDIOPRESSBOX RC 3.5-8 CABLE 8-way, 3-pin female XLR to 3.5 mm 3-pole jack, with matching, 3 metres Stock code: 93-2146
Ordered on demand, cancellations may incur charges, available in 2‑3 working days. Need it sooner? Call us
£381.90
