A range of microphone splitters from Radial Engineering, useful for employment in systems whereby a separate feed is required without colouration or changes in impedance.

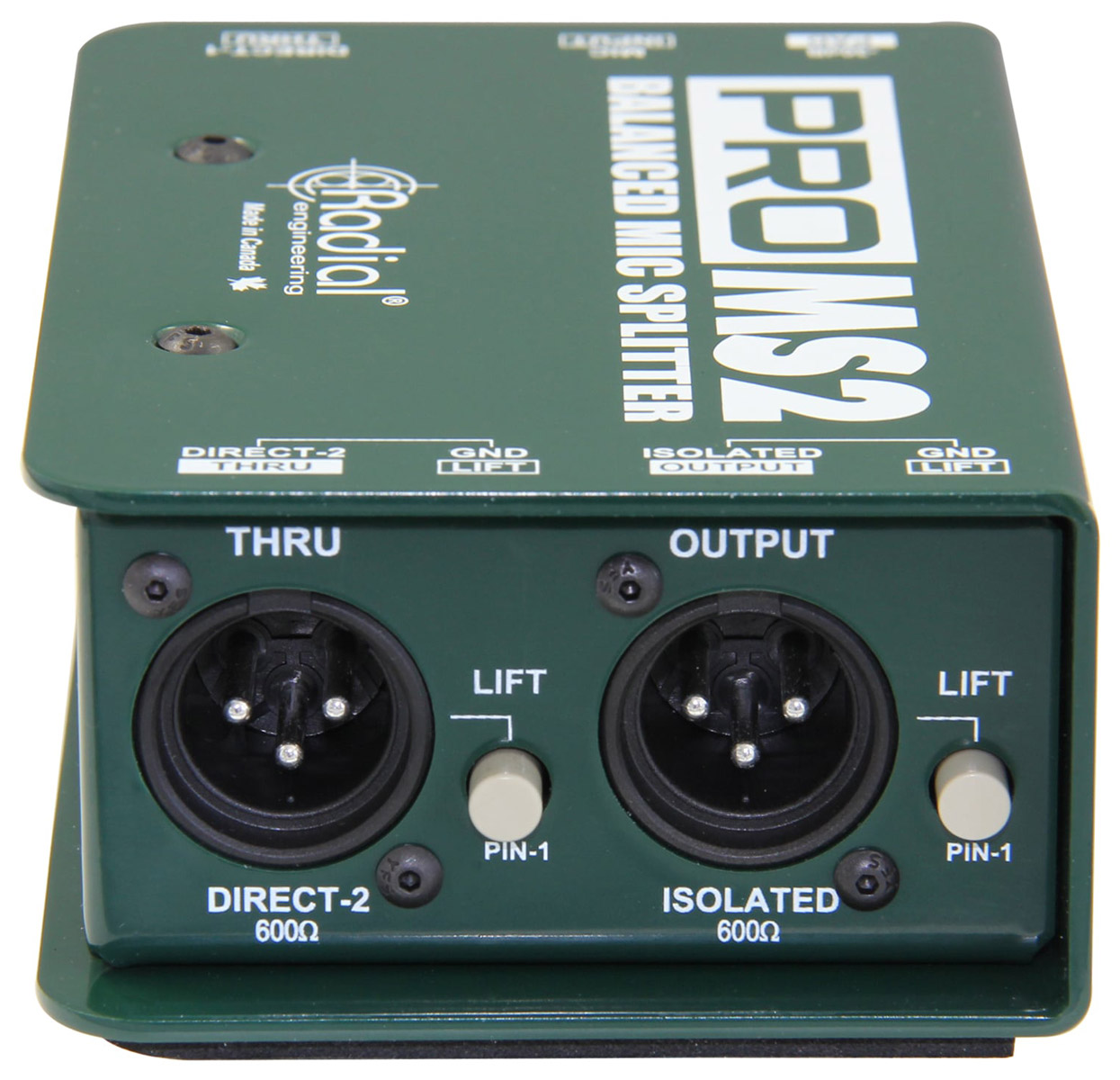

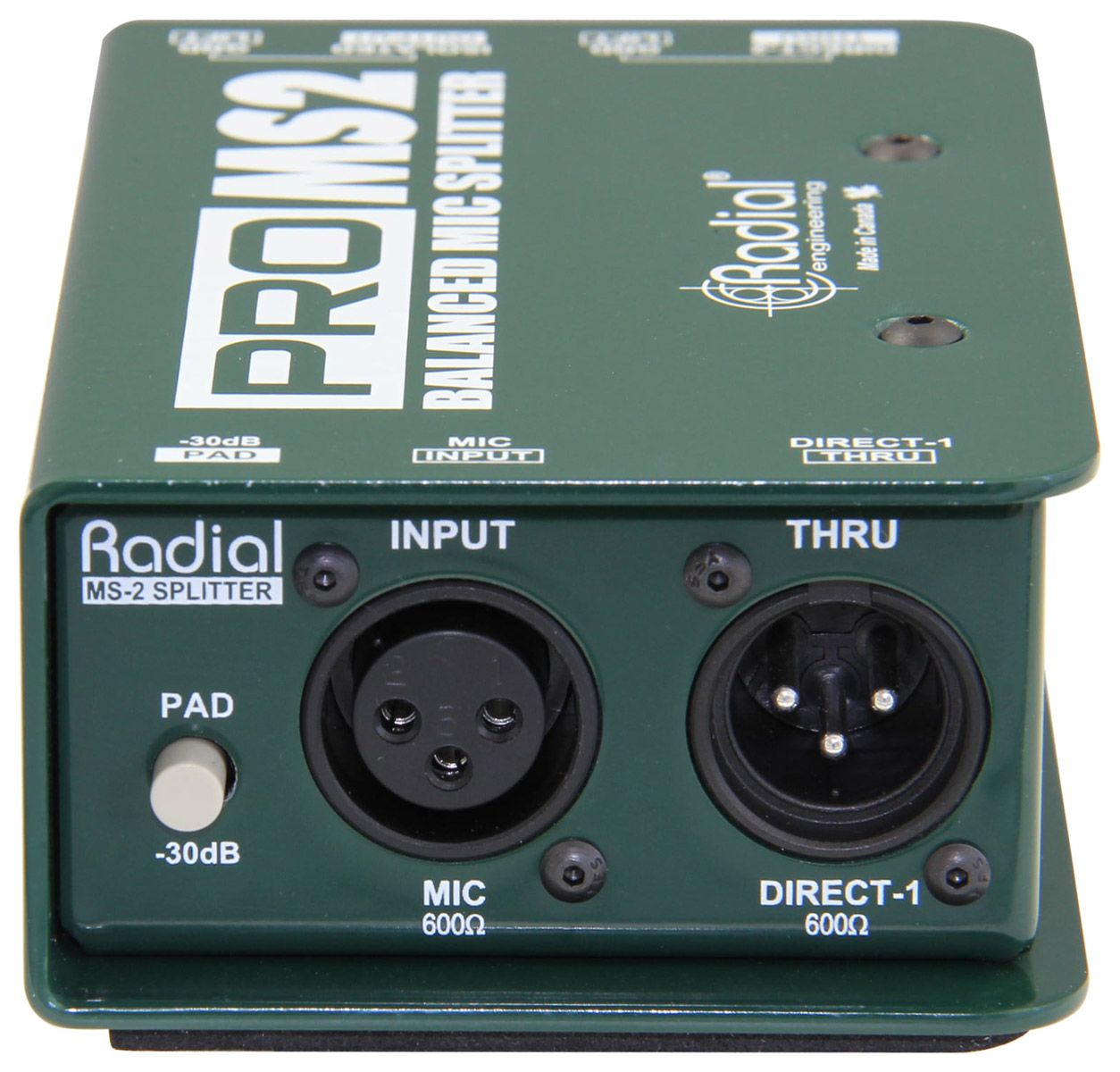

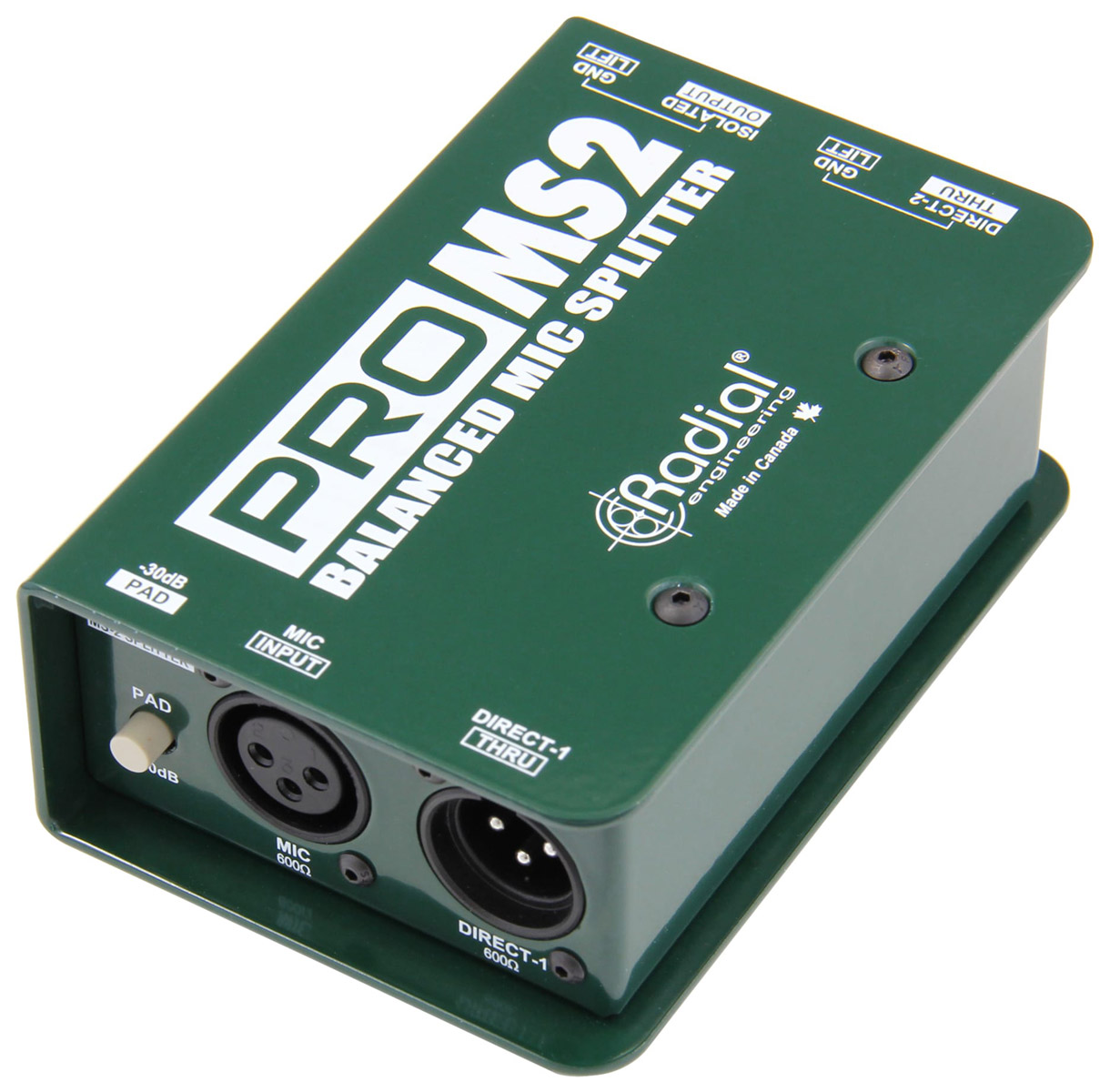

PROMS2 2-way, 1x output, 2x thru, passive

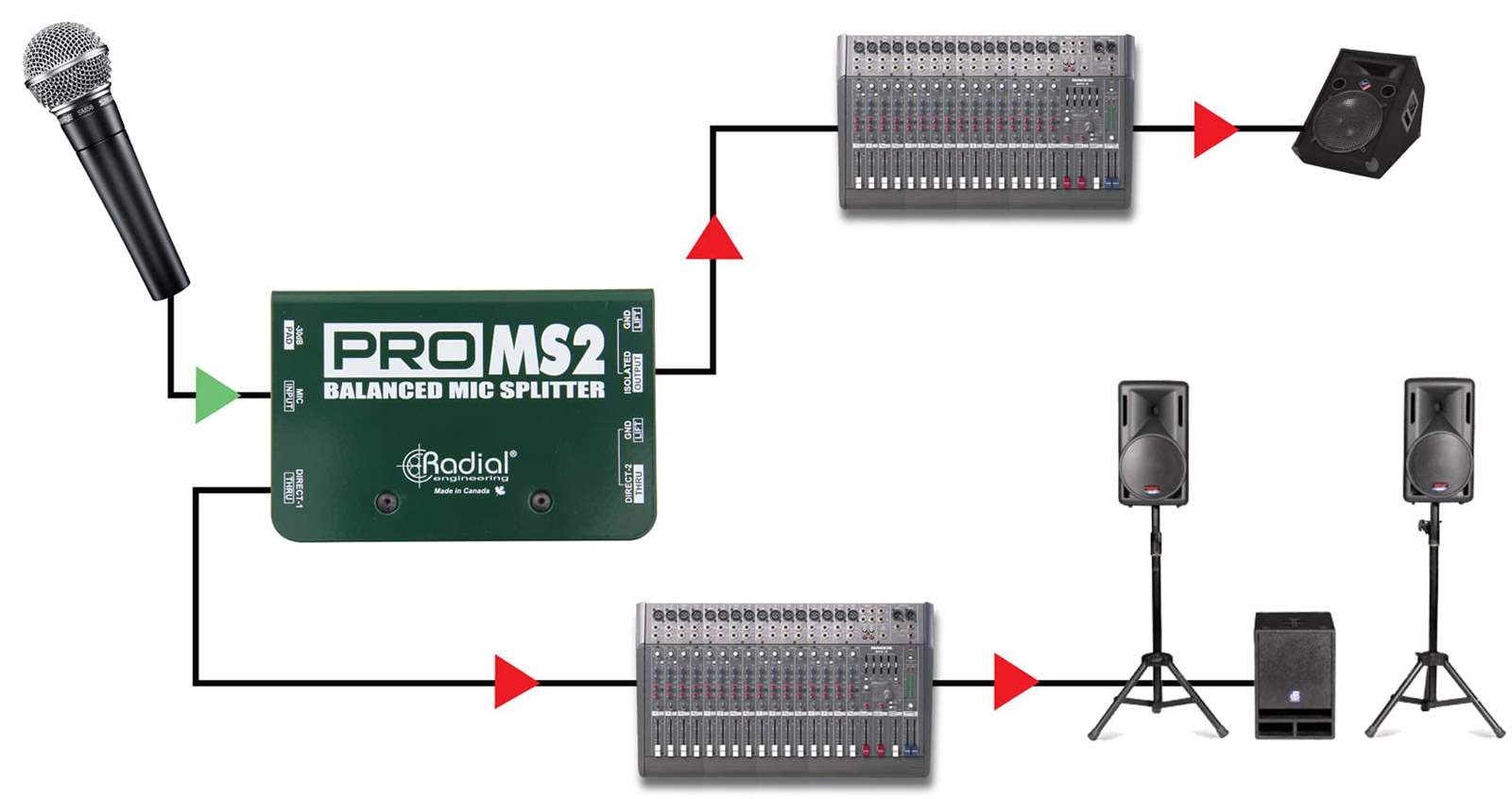

ProMS2 is a balanced mic-level splitter designed to send a signal to multiple destinations simultaneously on stage, with one transformer-isolated output and two direct outputs.
The 14-gauge steel manufactured splitter has an inbuilt Eclipse ET-MS10 transformer to provide galvanic isolation to eliminate hum and buzz from ground loops, while delivering a wide frequency response of 20Hz to 20kHz, and low distortion. Ground lift switches on the outputs help further reduce noise, while an input pad allows line-level sources to be connected. I/O connectivity is by way of 3-pin XLR connectors. ProMS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Frequency response: 20Hz - 20kHz. Dynamic range: Greater than 140dB. Gain: -0.5dB. Total harmonic distortion: 0.001%. Maximum input: +26dBu. Weight: 0.7kg.

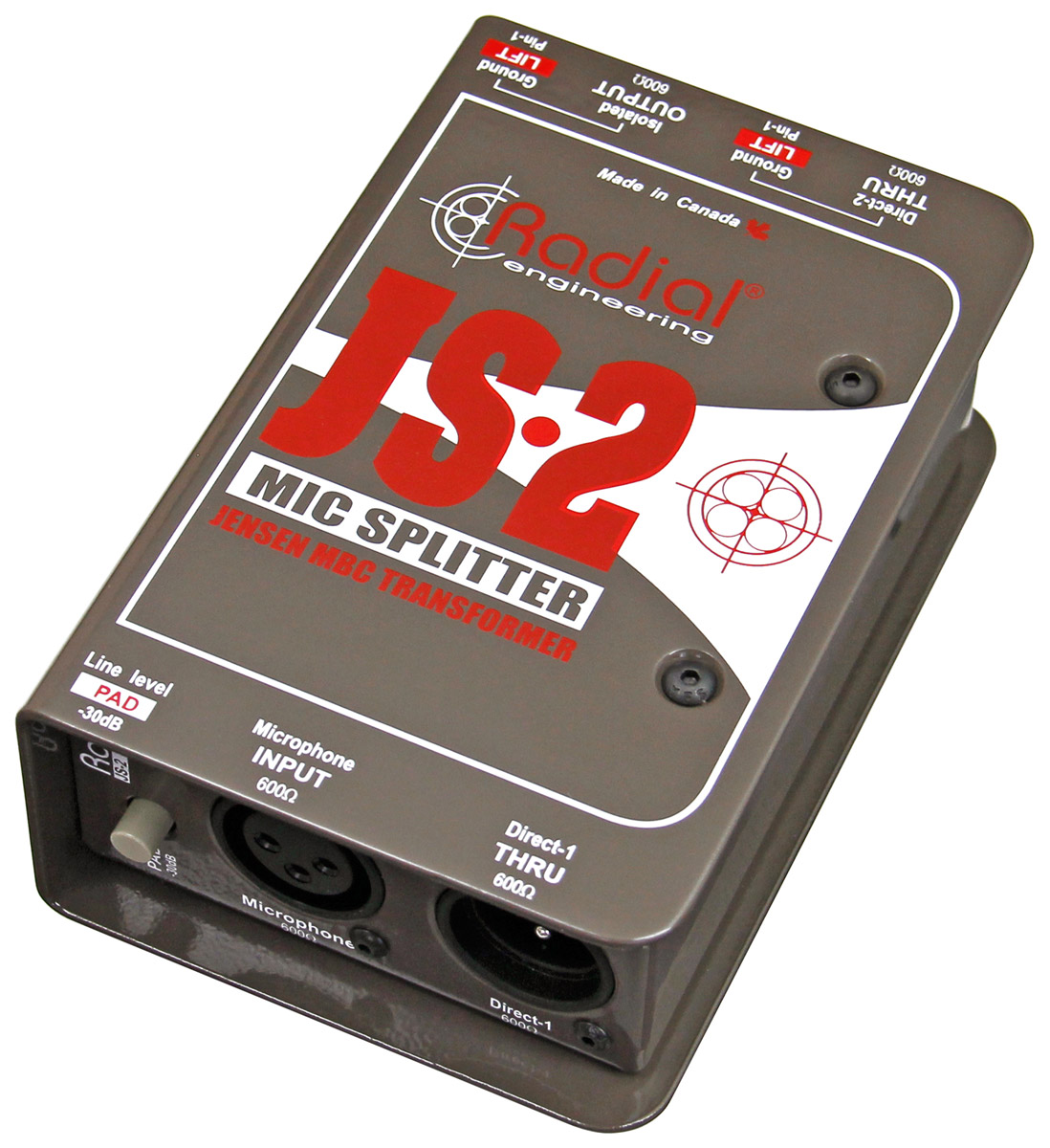

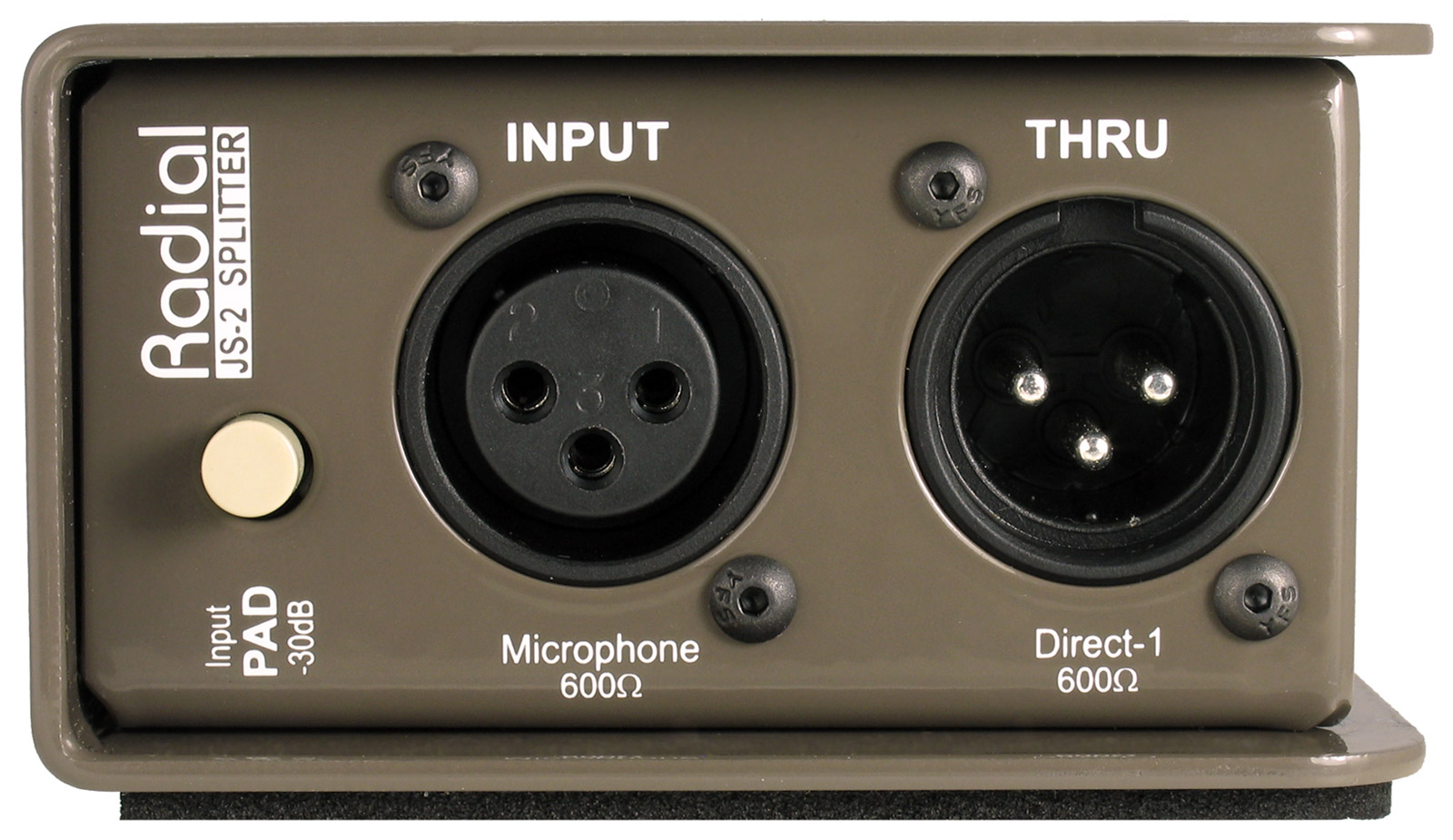

JS2 2-way, 1x output, 2x thru, passive

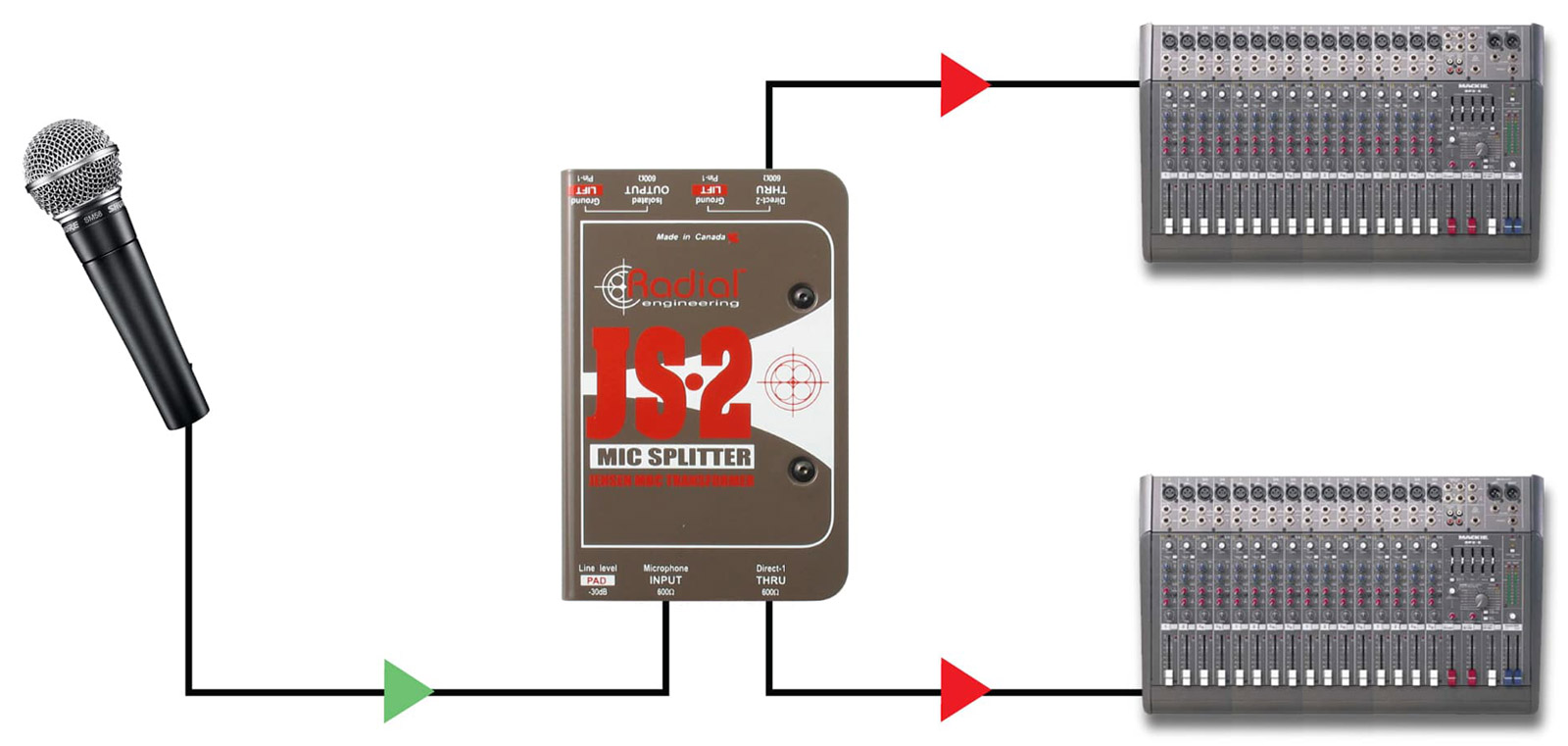

JS2 is a balanced microphone level splitter designed to send a signal to multiple destinations simultaneously, with one transformer-isolated output and two direct outputs.
The splitter is designed to separate a single source and output to multiple destinations simultaneously without signal degradation or noise. A inbuilt Jensen JT-MB-CPC transformer with 1:1 ratio provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining a wide bandwidth of 20Hz to 20kHz, with low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. I/O connectivity is by way of 3-pin XLR connectors. JS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Frequency response: 20Hz - 20kHz. Dynamic range: Greater than 140dB. Total harmonic distortion: 0.0005%. Maximum input: +25dBu. Dimensions (LxWxD): 84 x 127 x 48mm. Weight: 0.7kg.

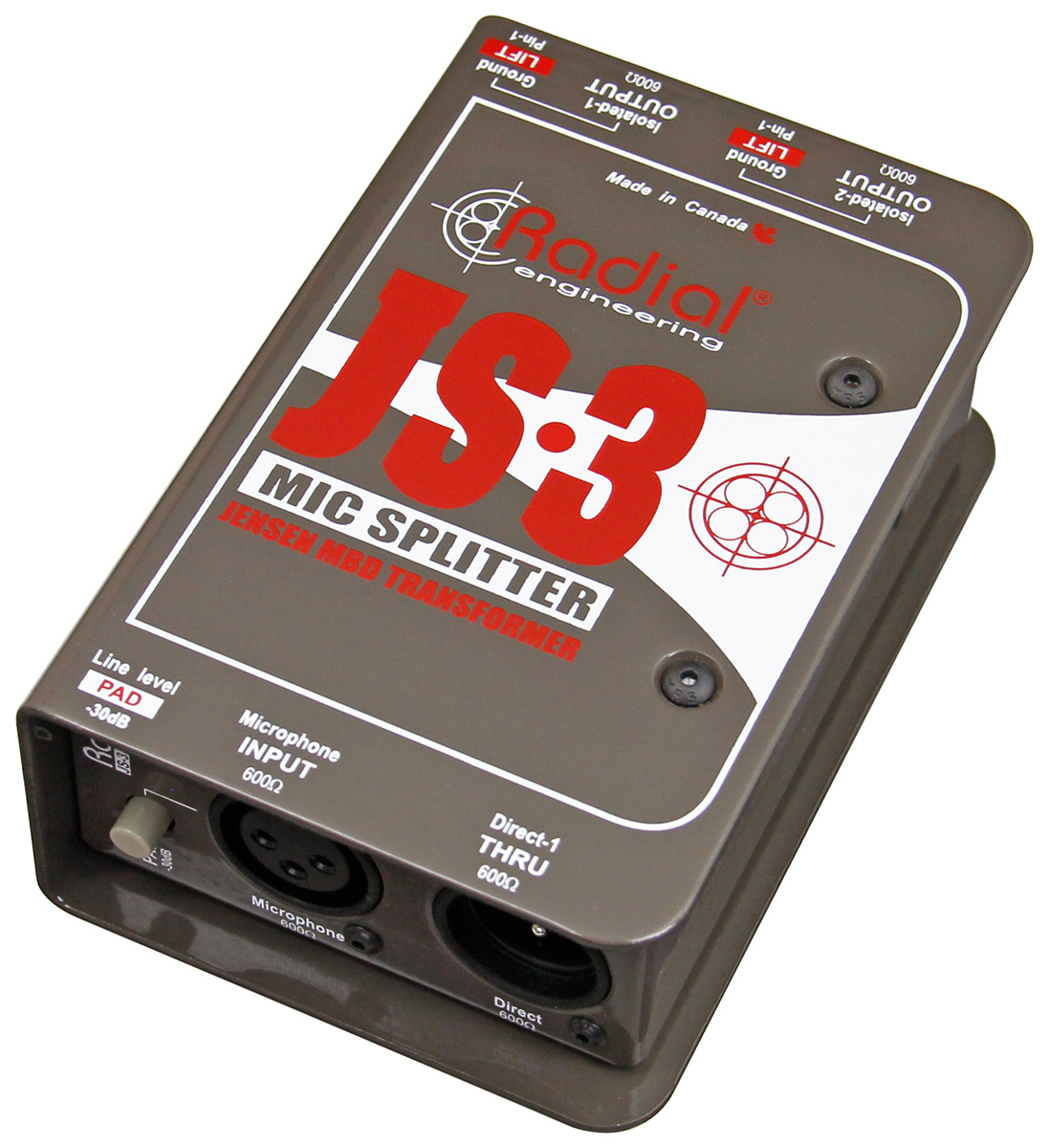

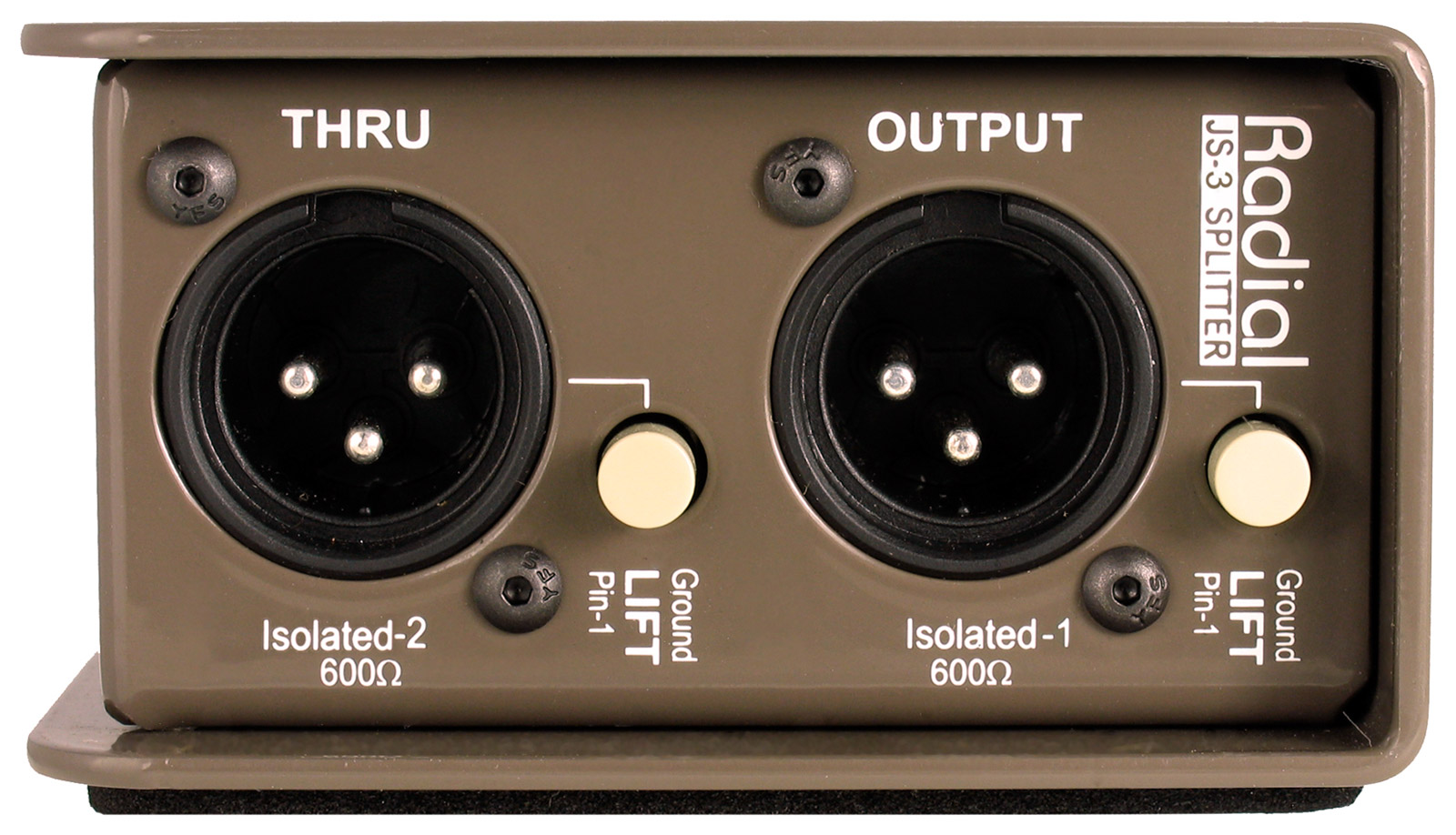

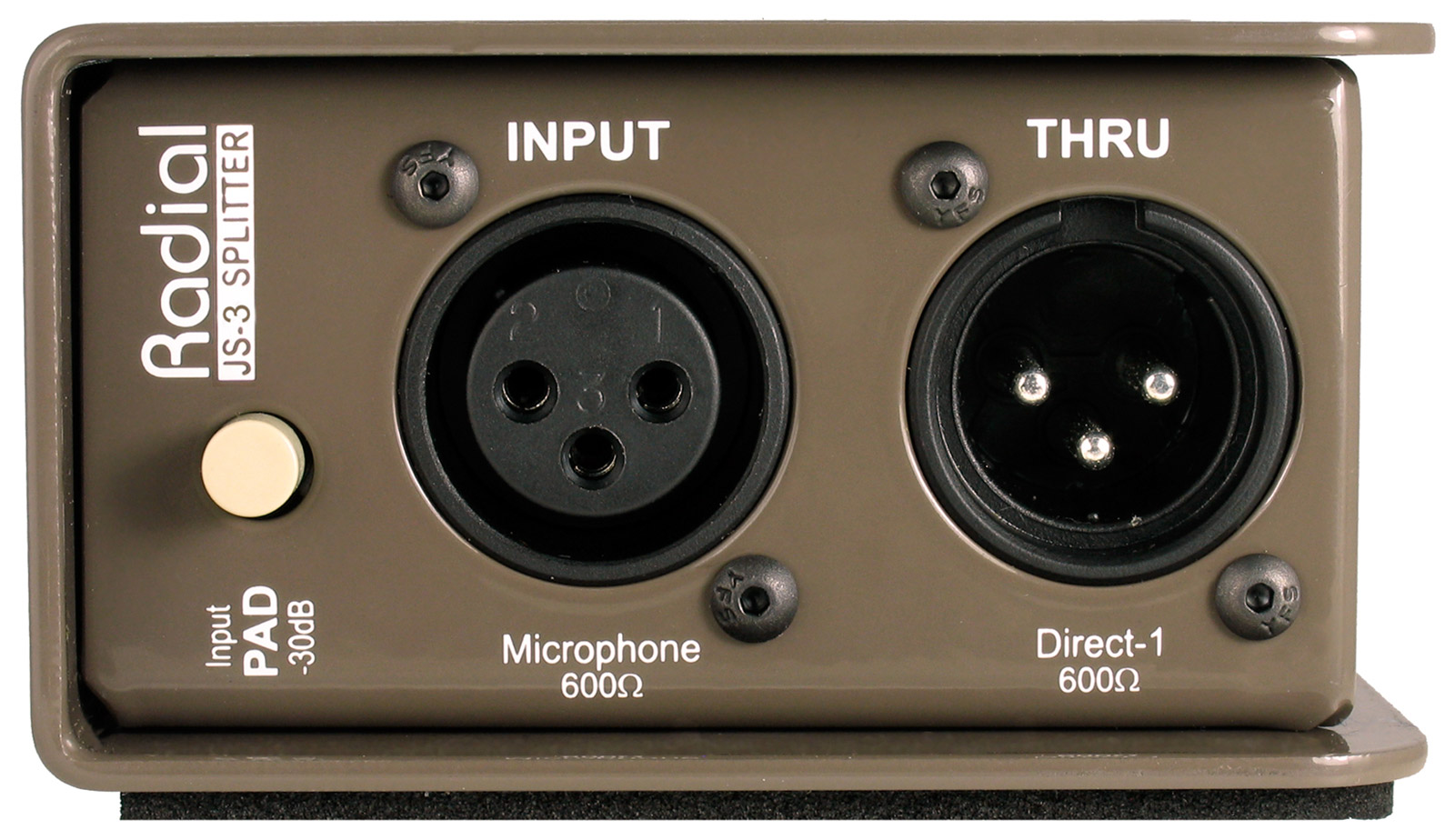

JS3 3-way, 2x output, 1x thru, passive

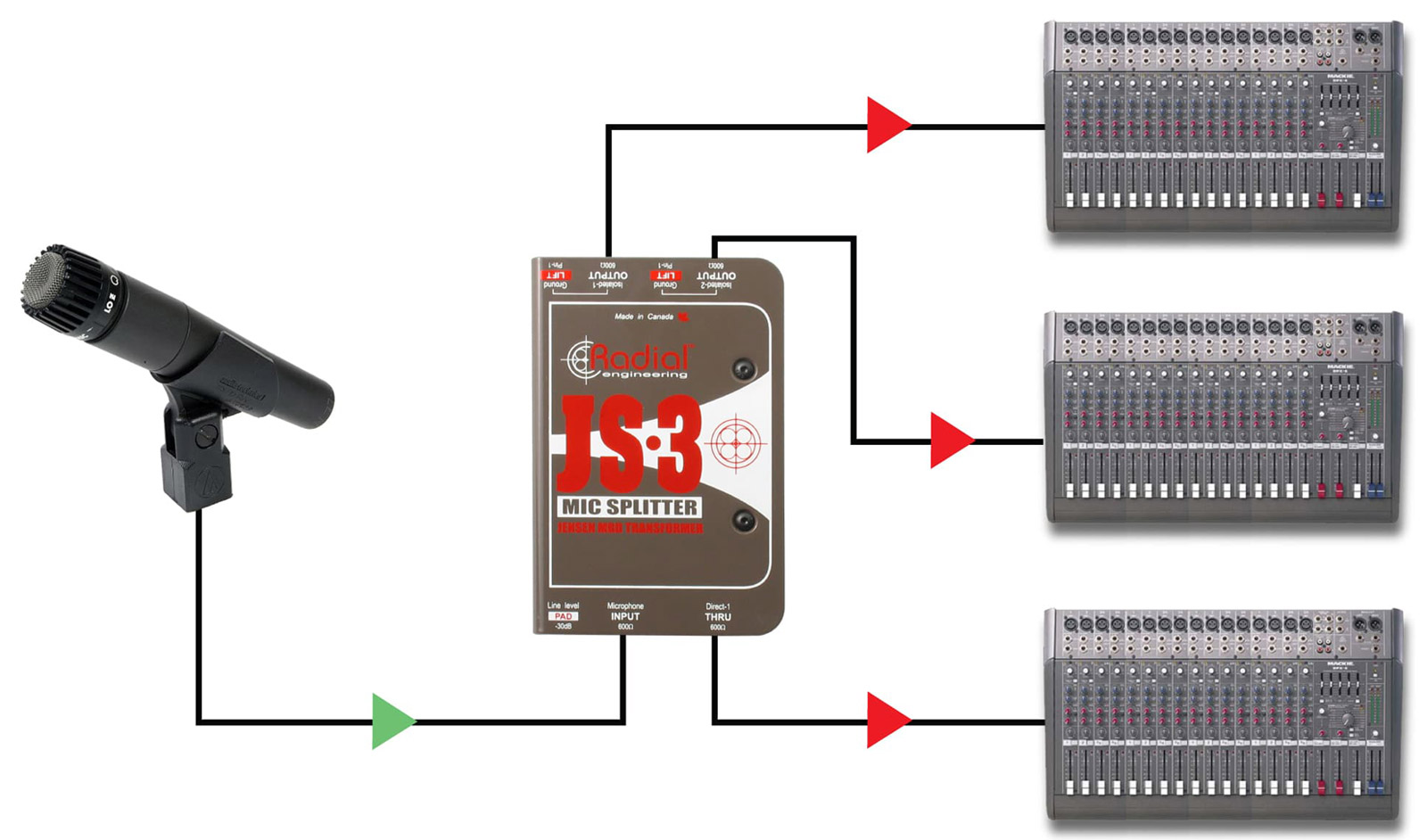

JS3 is a high performance balanced mic-level splitter designed to send a signal to multiple destinations simultaneously, with two transformer-isolated outputs and one direct output.
This professional mic splitter has been designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A inbuilt Jensen JT-MB-DPC transformer with 1:1:1 ratio provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining a wide bandwidth of 20Hz to 20kHz, low distortion, and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. I/O connectivity is by way of 3-pin XLR connectors. JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Frequency response: 20Hz - 20kHz. Dynamic range: Greater than 140dB. Total harmonic distortion: 0.0005%. Maximum input: +25dBu. Dimensions (LxWxD): 84 x 127 x 48mm. Weight: 0.7kg.
