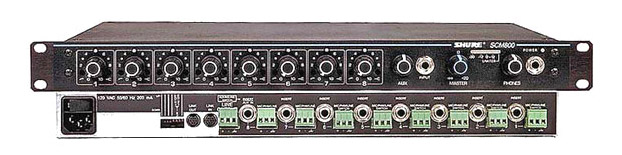

SCM800 Eight Channel Microphone Mixer

The Shure Model SCM800 is a full-featured, eight-channel microphone mixer for sound reinforcement, general audio recording, and audio-visual systems. Any low-impedance, balanced

dynamic or condenser microphone, including a wireless microphone system, can be used with the SCM800 mixer.

Each SCM800 accepts up to eight microphone- or line–level inputs and one aux-level input (two input jacks feed the same channel). Up to four SCM800 mixers can be linked to provide up to 32 input channels. Each input channel has a two-band equalizer, switchable microphone- or line-level operation, switchable 48 V phantom power, and a 1/4-inch send/receive insert jack.

Features

  • Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers
  • Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
  • 48 V phantom power selectable for each input
  • Active balanced microphone- and line-level inputs and line level output
  • Highly RF-resistant chassis and circuitry
  • LED indication of channel clipping
  • Linking capability for systems up to 32 microphones
  • Two Aux-level input jacks that feed one channel
  • Insert jack on each channel
  • Manual mixing of input channels
  • Internal Modification permits 230 V operation (SCM800) or 120 V operation (SCM800E)
  • Front-panel headphones output with level control
  • Peak-responding output limiter with selectable thresholds and LED indicator

Specifications

Specification Sheet (pdf)

Measurement Conditions (unless otherwise specified):
Line voltage 120 Vac, 60 Hz (SCM800) or 230 Vac, 50 Hz (SCM800E); full gain; 1 kHz.
Source impedances: Mic 150 ohms, Line 150 ohms
Terminations: Line 10 kilohms, Phones 300 ohms (tip-sleeve and ring-sleeve), Direct Out 10 kilohms.
Equalization controls adjusted for flat response, Channel 1 gain control full clockwise, other gain controls full counter-clockwise
Frequency Response (Ref .1 kHz, channel controls centered)
50 Hz to 20 kHz +/- 2 dB; -3 dB corner at 25 Hz
Voltage Gain (typical, controls full clockwise)
Input Output
Line Headphones Direct Out
Low-Impedance
Mic (150 ohms)
80 dB 88 dB 34 dB
Line 40 dB 48 dB -6 dB
Aux 44 dB 52 dB --
Send/Return 20 dB 28 dB --
Inputs
Input Impedance Input
Clipping Level
Designed
for use with
Actual
Typical
Mic 19-600 ohms 10 kilohms -15 dBV
Line ≤2 kilohms 10 kilohms +22 dBV
Aux ≤2 kilohms 10 kilohms +22 dBV
Send/Return ≤2 kilohms 10 kilohms +18 dBV
Outputs
Output Impedance Output
Clipping Level
Designed
for use with
Actual
Typical
Line >600 ohms 60 ohms +18 dBV
Headphones 8-200 ohms
60 ohms
recommended
300 ohms +12 dBV
Direct Out >2 kilohms 1 kilohm +18 dBV
Send/Return >2 kilohms 1 kilohm +18 dBV
Total Harmonic Distortion
<0.1% at +18 dBV output level, 50 Hz to 20 kHz (through 20 Hz-20 kHz filter; Input 1 and Master at 5, all other controls full counterclockwise)
Hum and Noise
Equivalent Input Noise: -125 dBV (150 ohm source; through 400 Hz-20 kHz filter)
Equivalent Input Hum and Noise: -123 dBV (150 ohm source; through 20 Hz - 20 kHz filter)
Output Hum and Noise (through 20 Hz to 20 kHz filter; channel controls full counterclockwise):
Master full counterclockwise: -90 dBV
Master full clockwise: -62 dBV 8
Common Mode Rejection
>70 dB at 1 kHz
Polarity
Mic/Line, Send inputs to all outputs are non-inverting; Aux input to all outputs is inverting
Overload and Shorting Protection
Shorting outputs, even for prolonged periods, causes no damage. Microphone inputs are not damaged by signals up to 3 V; Line and Monitor inputs by signals up to 20 V
Equalization
Low-frequency: 6 dB/octave cut, adjustable corner from 25 to 320 Hz
High-frequency: +/- 6 dB at 5 kHz, +/- 8 dB at 10 kHz, shelving
Limiter
Type: Peak
Threshold: Switchable: off, +4, +8, +16 (dBm at output)
Attack Time: 2 ms
Recovery Time: 300 ms
Indicator: Lights red when limiting occurs
Input LEDs
Light at 6 dB below clipping
Phantom Power
46 Vdc open-circuit through 6.8 kilohm series resistance per DIN 45 596
Operating Voltage
SCM800: 120 Vac rated nominal (see Voltage Selection for 230 Vac operation in User Guide), 50/60 Hz, 200 mA
SCM800E: 230 Vac rated nominal (see Voltage Selection for 120 Vac operation in User Guide), 50/60 Hz, 100 mA
Temperature Range
Operating: 0 degrees to 60 degrees C (32 degrees to 140 degrees F )
Storage: -30 degrees to 70 degrees C (-22 degrees to 158 degrees F)
Overall Dimensions
44.5 mm H x 483 mm W x 317 mm D (13/4 x 19 x 121/2 in.)
Net Weight
4.3 kg (9 lb 9 oz)
