A selection of ART portable and rackmount mixing consoles designed for use on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.

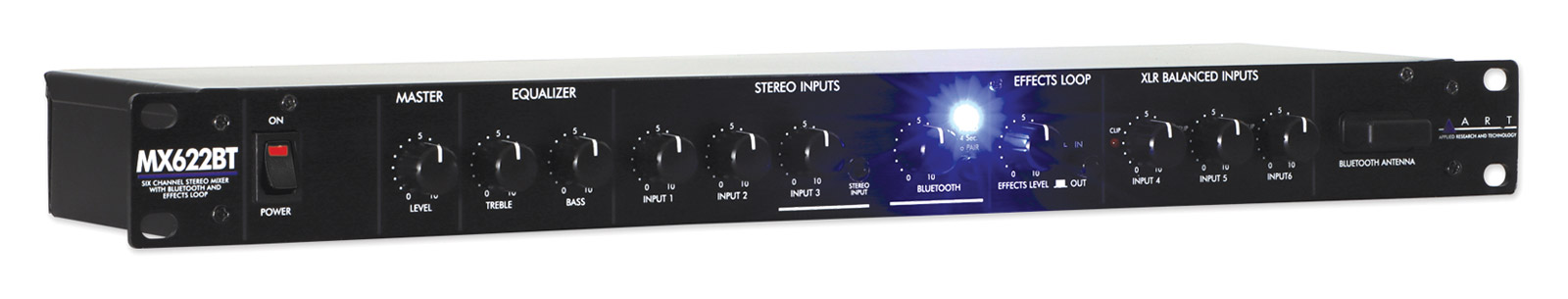

MX622BT - 6-channel, effects loop I/O, Bluetooth input
ART MX622BT is a 6-channel, rackmount mixer with Bluetooth input and an effects loop. The mixer combines three balanced microphone or line level inputs with three stereo line inputs plus a stereo Bluetooth input into a single stereo line level mix. Each mono balanced, 3-pin XLR input includes fully variable input gain, mic/line switch, clip indicator, and selectable 15V phantom power. Three stereo line level inputs are also provided via RCA (phono) connectors with separate level controls for each stereo pair.
The front facing panel also has a 3.5mm jack input for use with a portable audio device. The Bluetooth input supports Bluetooth 5.0 and has its own level control and pairing/on/off switch. An external effects loop section provides a mono send from the three mic/line channels to external equipment and stereo returns with effects level and in/out switch. Stereo record output RCA (phono) connections provide signal of the entire mix at all times. Main outputs are stereo balanced 6.35mm TRS jack with master level and full range bass/treble equalization. The built-in power supply and 1U, 19-inch rack mount format allows for easy installation and reliable operation.

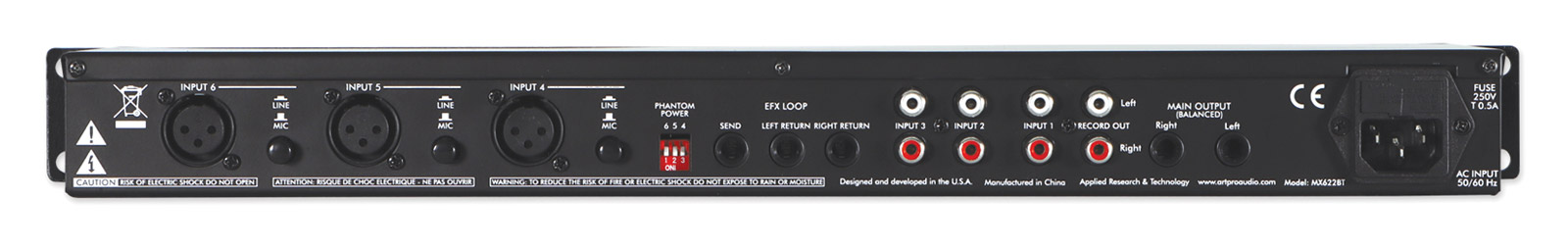

Input connections: 3x female 3-pin XLR, balanced; 2x 6.35mm jack, unbalanced; 6x RCA (phono), 1x 3.5mm jack, balanced. Output connections: 2x 6.35mm TRS jack, balanced, 1x 6.35mm jack, unbalanced, 2x RCA (phono). Input impedance: 600/22K Ohms Mic/Line 3-pin XLR inputs, 10K Ohms RCA inputs, 22K Ohms, 6.35mm jack EFX returns. Output impedance: 50 Ohms 6.35mm jack main outputs, 1K Ohms RCA (phono) record outputs, 100 Ohms EFX output. Maximum input level: -10dBu/+20dBu Mic/Line 3-pin XLR inputs, +20dBu RCA line inputs, +20dBu EFX inputs. Maximum output level: +24dBu balanced main outputs, +20dBu RCA record outputs, +20dBu EFX output. Phantom power: +15 Volts DC, regulated low noise. Maximum gain: 56dB/26dB Mic/Line, 26dB RCA inputs. Signal to noise ratio: Greater than 90dB typical. THD: Less than 1% typical. Equalizer range: +/-12dB at 100Hz and 10KHz. Bluetooth: v5.0, up to 30M range, Class 2 device. Dimensions (HxWxD): 44.45 x 483 x 152mm. Weight: 2.8kg.

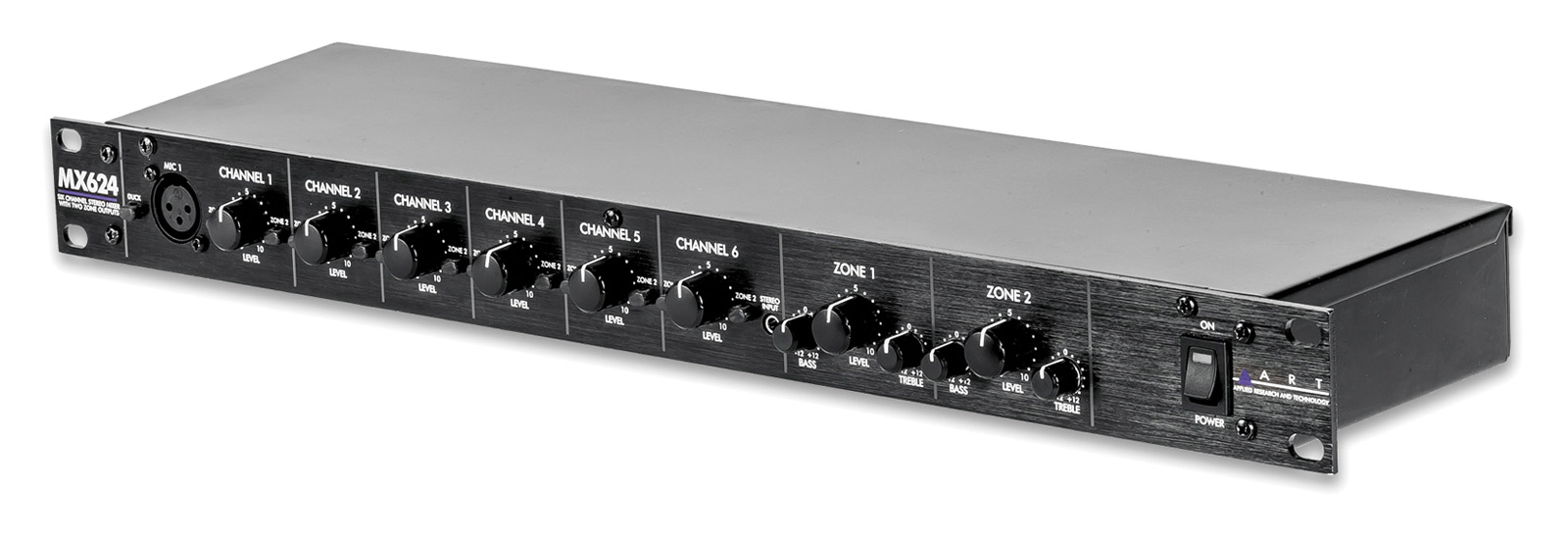

MX624 - 6-channel, 2-zone output
ART MX624 is a 1U rackmount mixer that combines six independent input channels and routes them to two stereo zone outputs. ART MX624 has been designed for use on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.
The first channel can be used to control, via a front-panel switch, a ducking feature for all other channels making it a functional solution for paging systems. All six channels can accept unbalanced stereo line-level signals. 48V phantom power can be independently assigned for each mic channel whilst each channel has independent level controls and can be independently routed to either zone output, both or neither. Separate level, bass and treble controls adjust the sound of each zone output. Two bus inputs allow patching of multiple units when more input channels are needed. A built-in power supply ensures ‘reliable long-term operation’.

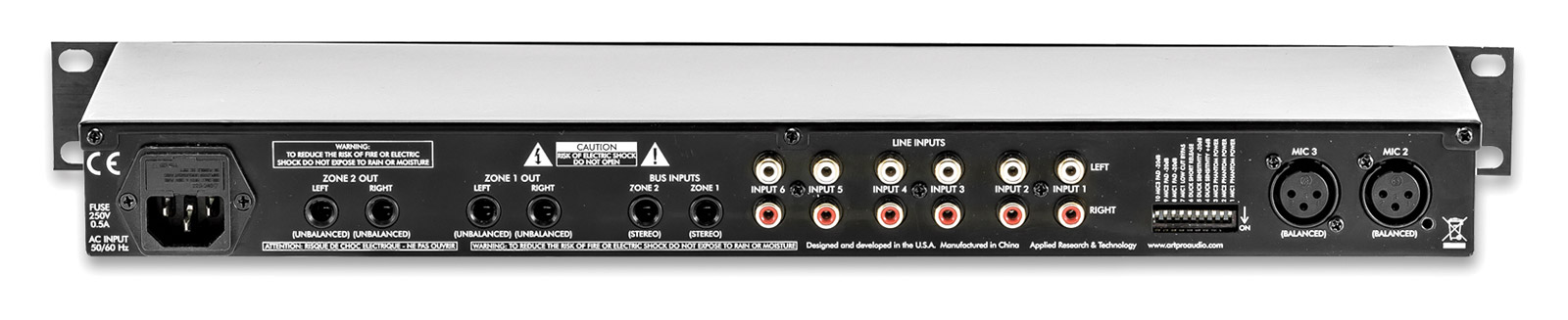

Input connections: 3-pin female XLR, balanced, mic channels 1-3; RCA (phono), unbalanced, line inputs 1-6, left and right; 6.35mm TRS jack, unbalanced stereo, bus inputs, zone 1 and 2. Output connections: 6.35mm TS jack, unbalanced, zone 1 and 2 out, left and right. Input impedance: 4k ohm, mic; 10k ohm, line; 10k ohm, bus. Output impedance: 200 ohm, zone 1 and 2. Frequency response: 20 Hz – 20 kHz, +0, -1 dB, channels 1-6 in, zone out. THD: Less than 0.01% at 1 kHz, typical. Phase response: All connections are phase coherent. Signal to noise ratio: Greater than 90 dB typical, ref 0dBu. CMRR: Greater than 43 dB typical. Maximum input level: -4dBu, +16dBu with 20 dB pad, Mic; greater than 25dBu, line. Maximum output level: +20dBu, unbalanced. Maximum gain: 57 dB, mic; 31 dB, line. Ducking threshold: -49.5dBv, adjustable via rear-panel dipswitches. Ducking depth: 15dB. Tone controls: +/-12 dB at 100 Hz and 10 kHz. Phantom power: Switch selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg. Dimensions (HxWxD): 44.5 x 483 x 152mm. Weight: 2.2 kg.
ART MX821S is a 1U, 19-inch rackmount mixer that combines eight input channels and mixes into a stereo line-level output. Each independent input channel accepts a balanced, 3-pin XLR microphone input or unbalanced 6.35mm TS jack with line-level signal, and provides independent level and pan controls. The ART mixer has been designed for use on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.
MX821S offers +48V phantom power, which may be applied on each independent microphone input. A master level control adjusts the signal output to the low-impedance balanced 6.35mm TRS jacks. A pre-fade output and an aux bus input by way of RCAs (phonos) allow patching of multiple units when more channels are required.
Input connections: 3-pin female XLR, balanced, mic, channels 1-8; 6.35mm jack TS, unbalanced, line, channels 1-8; RCA (phono), unbalanced, aux bus in, left and right. Output connections: 6.35mm jack TRS balanced, main outputs, left and right; RCA (phono) unbalanced, pre-fade out, left and right. Input impedance: 2k ohm, mic; 20k ohm, line; 51k ohm, aux bus in. Output impedance: 200 ohm, main outputs, balanced; 100 ohm, pre-fade out. Frequency response: 20 Hz – 20 kHz, +0, -1 dB, CH 1-8 in. THD: Less than 0.01% at 1 kHz, typical. Phase response: All connections are phase coherent. Signal to noise ratio: Greater than 99dB typical, ref 0dBu. CMRR: Greater than 43 dB typical. Maximum input level: -4dBu, mic, +22dBu, line. Maximum output level: +24dBu, balanced; +18dBu unbalanced. Maximum gain: 54 dB, mic, 29 dB, line. Phantom power: Switch selectable, +48V DC, regulated and filtered; 7 mA current limiting per leg. Dimensions (HxWxD): 4.5 x 48.3 x 15.2cm. Weight: 2.9 kg.

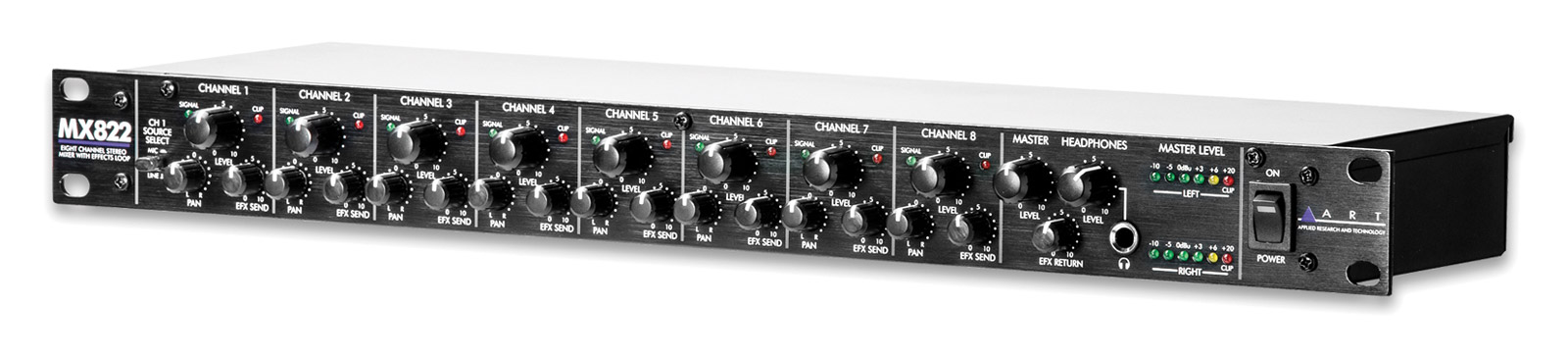

MX822 - 8-channel, effects loop I/O
ART MX822, 8-channel, stereo mixer has been designed for studio, live sound or installation applications. Multiple MX822s may be chained for additional inputs using 6.35mm TRS jack cables. External effects processors can be linked in and mixed with independent level controls, whilst a front panel headphone jack with separate level control allows independent monitoring.
Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. The first channel includes a switchable mic/line source select and the 3-pin XLR microphone connector provides switchable Phantom power.
Other features include eight stereo/mono input channels with individual level, pan and effects send controls; an external effects loop with independent send and return controls; a 6.35mm TRS headphone jack with amplifier and independent level control for output monitoring. Separate green and red LED signal and clip indicators are included for each input channel whilst a six level, left and right main output meter including clip indicators helps prevent overdriven outputs.
Input connections: 3-pin female XLR, balanced, mic; 6.35mm TRS jack, unbalanced, Ch1-Ch8, Effects Return; 6.35mm TRS jack, stereo, unbalanced, EFX Buss, Main Expand. Output connections: 3-pin male XLR, balanced, Main; 6.35mm TRS jack, unbalanced, Effects Send; 6.35mm TRS jack, stereo, unbalanced, Monitor, Main Expand, Headphone. Input impedance: 1k ohm, Mic; 5k ohm, Ch1-Ch8. Output impedance: Less than 1k ohm, Main, balanced; less than 25 ohm, Headphone. THD: Less than 0.01% at 1kHz. Signal to noise ratio: Greater than 90dB typical, Ref 0dBu. Maximum input level: -19dBu, Mic; +24dBu, Ch1-8. Maximum output level: +24dBu, Main; +18dBu, Monitor, Effects Send. Maximum gain: +60dB, Mic, +14dB Ch1-8. Phantom power: Switch selectable, +48V DC, filtered, current limited. Dimensions (HxWxD): 44.5 x 483 x 152mm. Weight: 2.95 kg.
