DELTRON RCA (PHONO) CONNECTORS - Cable and panel types

6 items
DELTRON 413 RCA (PHONO) PLUG Black plastic shell, nickel cont
DELTRON 413 RCA (PHONO) PLUG Black plastic shell, nickel contDELTRON 330 RCA (PHONO) PLUG Nickel shell, silver contactsDELTRON 331 RCA (PHONO) PLUG Gold shell, gold contactsDELTRON 346 RCA (PHONO) PLUG Black shell, gold contactsDELTRON 346 RCA (PHONO) PLUG Red shell, gold contactsDELTRON 431 RCA (PHONO) PANEL SOCKET Nickel contacts, black ring

Deltron are the largest and most well known manufacturer of phono connectors in the UK. All plugs (except economy type 425) feature a patented T-slot spring action on the ring/shell contact, ensuring positive contact with any make of phono socket. Note that in many countries this connector type is known as the RCA connector.

Plugs


Type 413

Plastic cover connector with nickel plated hollow pin. Cable entry diameter 4.0mm.

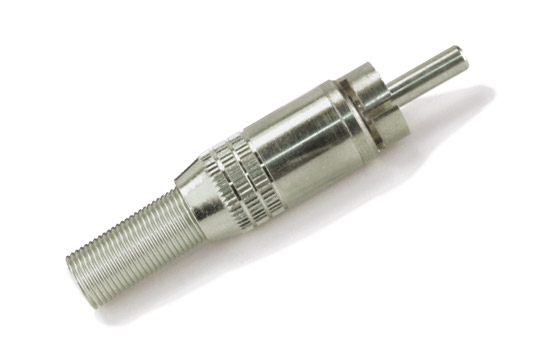

Type 330

The most popular plug in the range. Hollow silver plated brass tip, nickel plated brass cover, noryl insulation, wrap-over type cable clamp. Supplied with nickel plated spring style strain relief cable maximum entry diameter 5.5mm, strain relief can be omitted to increase cable entry diameter to 7.2mm.


Type 331

As type 330, but hollow flash gold plated tip, flash gold plated body and strain relief.


Type 346

Solid flash gold plated brass tip, anodised aluminium cover (8mm longer than 330 series), PTFE insulation, larger wrap-over type cable clamp. Supplied with black chrome plated spring style strain relief, cable entry diameter 5.5mm, strain relief can be omitted to increase cable entry diameter to 7.2mm.

Panel sockets


Type 431

Panel mounting turned brass socket, nickel plated, nut fixing, black plastic inserts. Panel hole 7.2mm, supplied singly.

Description Price $
ex. VAT
Add to basket
Delivery
DELTRON 413 RCA (PHONO) PLUG Black plastic shell, nickel cont BlackNickel Stock code: 43-035
1 in stock Need more?
$2.76
DELTRON 330 RCA (PHONO) PLUG Nickel shell, silver contacts NickelSilver Stock code: 43-001
1 in stock Need more?
$2.51
DELTRON 331 RCA (PHONO) PLUG Gold shell, gold contacts GoldGold Stock code: 43-002
30 in stock Discontinued, available only while stocks last.
$2.20
DELTRON 346 RCA (PHONO) PLUG Black shell, gold contacts BlackGold Stock code: 43-073
13 in stock Need more?
$4.37
DELTRON 346 RCA (PHONO) PLUG Red shell, gold contacts RedGold Stock code: 43-074
4 in stock Need more?
$5.31
DELTRON 431 RCA (PHONO) PANEL SOCKET Nickel contacts, black ring NickelBlack Stock code: 43-060
49 in stock Need more?
$4.37
