MUXLAB AUDIO DSP

MUXLAB 500556 SIGNAL PROCESSOR Dante audio, 4-channel I/O
MUXLAB 500556 SIGNAL PROCESSOR Dante audio, 4-channel I/OMUXLAB 500556 SIGNAL PROCESSOR Dante audio, 4-channel I/O

A range of Muxlab digital signal processors that have been designed for use in conference room, education, retail, hotels, restaurants, and hospitals to clean or make best possible the sound quality from source.

500556 4-channel Dante DSP

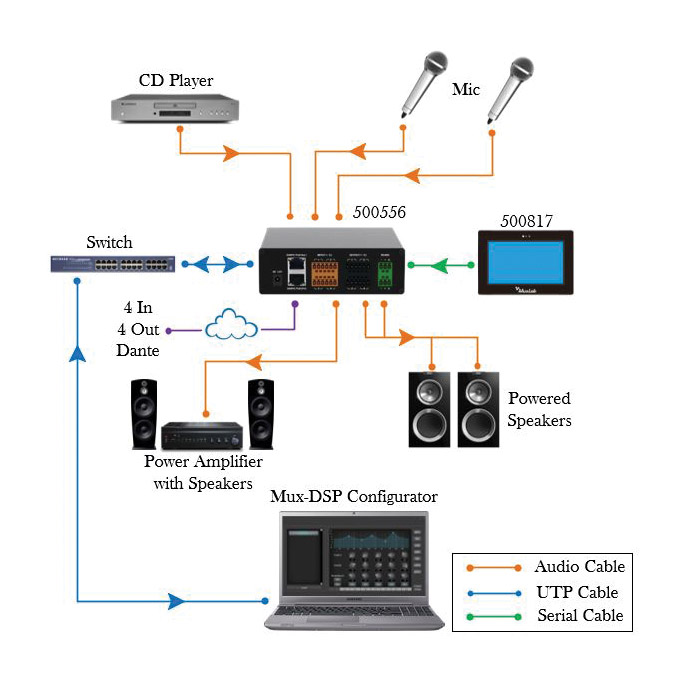

500556 is a 4-channel Dante audio digital signal processor that has been developed for the transmission, routing, and processing of audio signals in Dante networks. The compact hardware can perform low-delay audio transmission, support 4-way input and output balanced analogue audio channels, and can be powered via PoE or via a 12V DC power supply.

The processor includes features including audio echo cancellation (AEC), automatic frequency control (AFC), automatic noise cancelling (ANC), compression, limiting, mixer and graphic equalization. The product provides PC version control software to monitor and operate all the functions on the DSP. I/O connectivity includes 4x balanced inputs and 4x balanced outputs by way of 3-pin terminal connection, RS485 and TCP/IP control connections, and dual Dante ports. The analogue inputs support 48V phantom power.

Dimensions (WxDxH): 142 x 157 x 46mm. Weight: 1.3kg

  Description Price £
ex. VAT
Add to basket
Delivery
MUXLAB 500556 SIGNAL PROCESSOR Dante audio, 4-channel I/O Stock code: 93-0890
Ordered on demand, available in 3‑4 weeks. Need it sooner? Call us
£677.00
