MUXLAB VIDEO EXTENDERS - Over Cat5e/6/7

MuxLab HDMI point to point video extenders have been designed to facilitate the transfer of data from compatible 3G, 6G, or HDMI equipment over Cat5e/6 to distances up to 150m. Typically used for digital signage, commercial AV solutions, classroom projectors and medical information systems. These active extenders carry digital video over standard UTP networking cable in point to point applications.

VGA Extenders

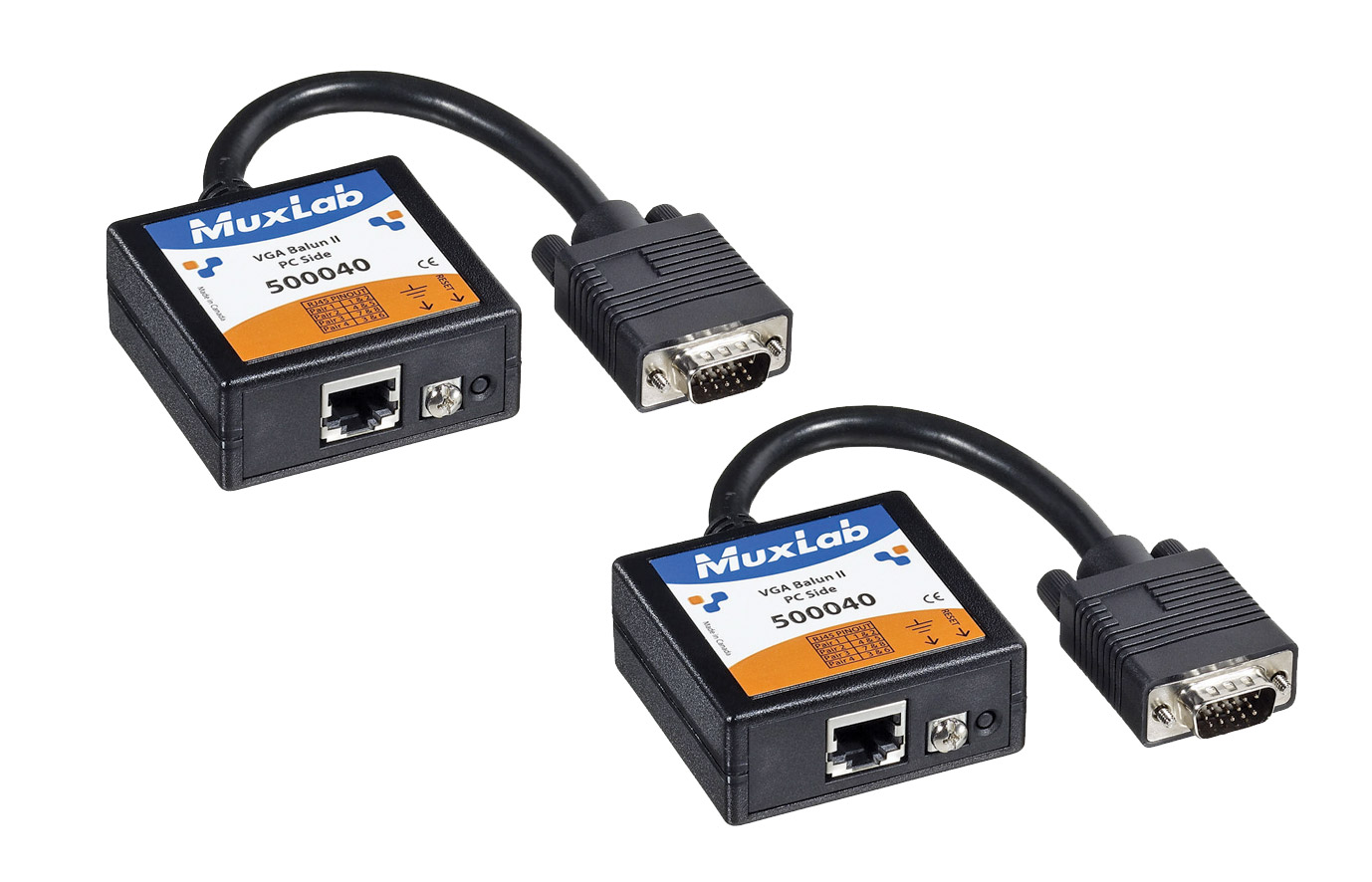

500040-42PK VGA BALUN II KIT

This unit allows the user to connect a VGA source with a VGA destination and link via a single 4-pair Cat5e/6 UTP cable up to distances of 107m at 800x600 resolution. Designed to be used with laptops, PCs, digital signage, projectors, and plasma TVs in locations including the classroom, boardroom, or digital signage in retail.

3G Extenders

500700 SDI over Cat5E/6, 100/120m reach

This will transmit 3G-SDI signals over 100 or 120 metres of a single Cat5e or Cat6 cable in a point-to-point configuration. Transmission of up to 2.97/3.0 Gb/s uncompressed, un-encrypted digital video is supported, optionally including up to 32 channels of embedded Audio and/or embedded time code, for use in such environments as 'within television facilities and between professional video equipment'.

The two cast-aluminium enclosures, encoder and decoder, each have an RJ45 connector for the Cat5/6 cable and a female BNC for the video connection. Power from the included AC adapters connects by a co-axial connector. LEDs indicate 'SDI Sync', 'RJ45 Sync' and 'Pwr' on each unit.

Standards supported: SDI-SMPTE 259M-C (270Mbps), HDSDI-SMPTE 292M (1. 485, 1.485/1.001 Gb/s), HD-SDI-SMPTE 424M/425M (2.97/3.0 Gb/s. Bit rates: 270Mb/s, 1.485Gb/s and 2.97Gb/s, automatically selected. For a detailed listing of the formats supported, please see the datasheet.

Maximum reach: Up to 100 metres using Cat5E UTP, up to 120 metres using Cat6 UTP.

Dimensions: 114 x 76 x 32mm each enclosure. Weight: 1.1kg. Operating temperature: 0-40 degrees C. Power source: 12V DC from the two AC adapters supplied.

500702 SDI over Cat5E/6, 150/150m reach

This 'Longreach' version is similar to the 500700 model, see above, differing in it's capability to transmit 3G-SDI signals over 150 metres of a single Cat5e or Cat6 cable in a point-to-point configuration.

500715 SDI to HDMI over Cat5E/6, 100/122m reach

The 500715 converts 3G-SDI to HDMI and then transmits it over a single Cat5e or Cat6 cable over a distance of up 100m or 150m, at all resolutions, in a point-to-point configuration. It supports transmission of up to 2.97/3.0 Gb/s uncompressed, un-encrypted digital video, optionally including embedded audio and/or time code.

The two cast-aluminium enclosures, encoder and decoder, each have an RJ45 connector for the Cat5/6 cable. Power from the two included AC adapters connects by a co-axial connector in each case. The encoder has a female BNC for the video connection and LEDs which indicate 'SDI Sync', 'RJ45 Sync', 'Pwr', 'Video' and 'Sound'. The decoder has an HDMI output socket and LEDs which indicate 'HDMI Sync', 'RJ45 Sync' and 'Pwr'.

Standards supported: SDI-SMPTE 259M-C (270Mbps), HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gb/s) and HD-SDI-SMPTE 424M/425M (2.97/3.0 Gb/s). Sound format support: 48kHz, 24, 20, 16 bits. Bit rates: 270Mb/s, 1.485Gb/s and 2.97Gb/s, automatically selected. For a detailed listing of the formats supported, please see the datasheet. Maximum reach: Up to 100 metres using Cat5E UTP, up to 122 metres using Cat6 UTP. 'Maximum distance applies for all format and speed between boxes'. Dimensions: 114 x 76 x 32mm each enclosure. Weight: 1.1kg. Operating temperature: 0-40 degrees C. Power source: 12V DC from the two AC adapters supplied.

500716 SDI to HDMI over Cat5E/6, 150m reach

This 'Longreach' version is similar to the 500715 model, see above, differing in it's capability to transmit 3G-SDI signals, converted to HDMI, over 150 metres of a single Cat5e or Cat6 cable in a point-to-point configuration.

6G Extenders

500730 SDI, 100m reach

This 6G-SDI Extender over UTP will carry a 6G SDI video signal over up to 100 metres of cable between the transmitter and receiver with 4K resolution. A 3G-SDI or HD-SDI signal can be extended up to a maximum of 150m in 'long-reach' mode.

Power is required by the receiver, which remotely powers the transmitter over the Cat5E/Cat6 cable. The input source for the transmitter is 'HD-SDI using single, two or four coax cables, 3G-SDI using single or two coax cables, and 6G-SDI using a single coax cable'. The kit 'supports all 6G channel configurations (1/2/4)', with a maximum supported resolution of 4096x2160 at 24/25 frames per second, 3840x2160 at 30 frames per second. SDI link recognition and configuration is automatic as is 'long-reach' mode, 150 metres, when a 3g-SDI or HD-SDI signal is detected.

The transmitter has, on the front panel, five BNC connectors, for four SDI inputs and one sync connection. The rear has an Ethercon RJ45 socket for the UTP cable, while the top has a mini USB connection for firmware updates and control, as well as status LEDs for each of the four SDI connections plus 'Sync', 'Act' and 'Pwr'. It has multiple 1/4 inch threads 'for camera mounting or equipment attachment'.

The receiver has four BNC connectors for the SDI outputs, plus one for a sync input connection, an RJ45 socket for the UTP cable and a co-axial power inlet, all on the back panel. The front panel has a mini-USB socket, for firmware updates, and status LEDs, one for each SDI channel plus '6G', 'Act', 'Pwr' and 'RJ45 Sync'.

Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M. Control: Serial console emulation with USB interface. Power source: 48V DC, 0.7A from included AC adapter. Dimensions: Approximately 110 x 110 x 32 mm, transmitter; 146 x 105 x 26 mm, receiver.

500733 SDI, 150m reach

Like the 500730, this is a 6G-SDI extender that works over UTP for distances of up to 100m between transmitter and receiver at 4K resolution. In 'long-reach' mode, a 3G-SDI or HD-SDI signal can be extended up to a maximum distance of 150m. Supporting up to 6Gbps the 500733 can transmit and receive combinations of source including one 6G-SDI source, two 3G-SDI sources or four HD-SDI sources. In addition, two Ethernet signals can be transmitted, which may be used as return channels, as well as a bi-directional RS232 signal pass-through for camera control unit (CCU) or tally light.

The transmitter has one 6G/3G/HD-SDI compatible BNC input, one 3G/HD-SDI compatible BNC input, and two HD-SDI compatible BNC inputs. Each input has an LED indicator that illuminates when a connected SDI link is established. An RS232 and 2.1mm DC power supply connection are located on the side of the unit with mini-USB port, for firmware update, and power status LED positioned on the top panel. The rear of the unit has a single Ethercon connector for UTP link and two RJ45 Ethernet ports. LEDs for 'sync' and 'ACT'. which illuminate to signify HDBase-T link and link traffic are detected.

The receiver has the same connectivity and LED indicators as the transmitter. Although the receiver requires power from the included 48V DC power supply, the transmitter can be powered via POE from the receiver. An additional POE transmitter/receiver can in turn be powered by POE via the Ethernet 'port1' connection.

Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M. Serial console emulation with USB interface. Power source: 48V DC, 0.7A from included AC adapter. Transmitter and receiver dimensions: 109 x 109 x 25.4mm.

HDMI Extenders

500450 Cat5e/6, 100m reach

This kit comprises of transmitter and receiver units and can offer point to point HDMI 1.3 and HDBaseT data transfer up to 100m with video resolutions up to 4K. the 500450 supports the 3D features of HDMI 1.4 as well as remote control via the included 500998 IR emitter and 500999 IR sensor.

Both transmitter and receiver have three LEDs on the front panel to indicate power, HDMI sync and RJ45 sync status. Rear panels have 12V DC power supply connections, RJ45 link connection (output on transmitter, input on receiver), HDMI connection (input on transmitter, output on receiver), and 3.5mm jack socket for infra red hardware.

Dimensions: 114 x 76 x 32 (HxWxD) mm. Weight: 1.2kg.

500409 Cat6a/7, 30m reach

A HDMI extender that allows uncompressed video up to 4K/60 (4:4:4) to be transmitted over Cat6a/7 UTP cable to a distance of 30m. 500409 can extend to 30m point-to-point for 4K/60, 40m at 4K/30, and 45m at 1080p. Supporting HDCP 2.2 the extender also allows the pass-through of audio up to Dolby Atmos and DTS:X in format.

A single LED illuminates to signify power/link, whilst single HDMI in/out allows connection of video signal. A single RJ45 per unit allows Cat6a connection, and a DC power input allows connection of the included 110-240VDC, 2A power supply.

500409 includes 1x transmitter and 1x receiver, along with an infrared emitter and infrared sensor for remote control.

Dimensions: 90 x 44 x 23 (H x W x D)mm. Weight: 0.45kg.

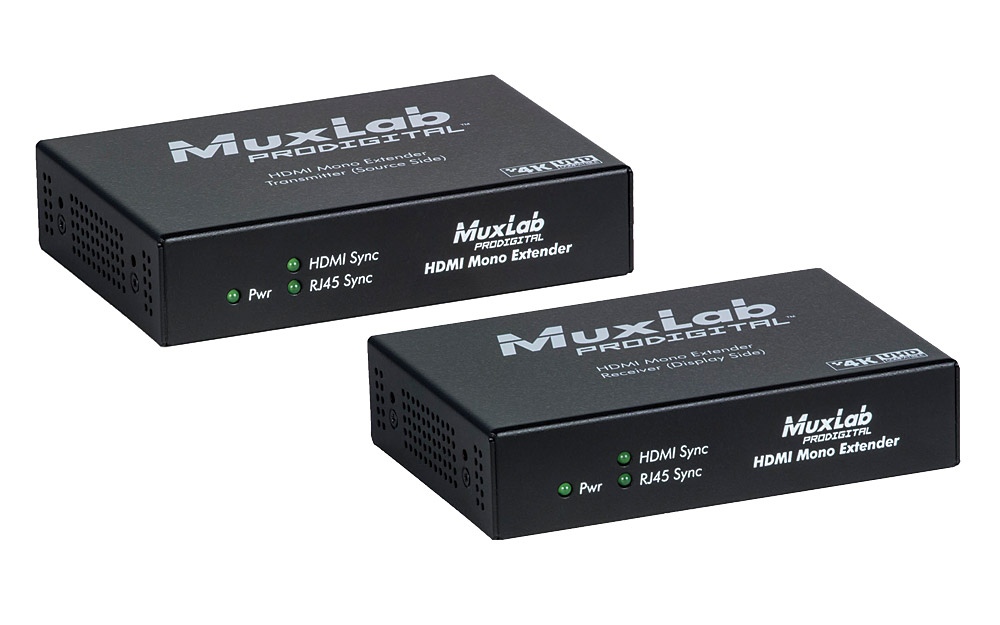

500451 Cat5e/6, 40/70m reach

This HDMI 1.4a kit includes transmitter and receiver units and offers the transmission and reception of 4K at 24/35/30Hz and 4K, 60Hz over Cat5E/6 unshielded, twisted-pair cable. 4K, 30Hz or 4K, 60Hz HDMI video sources can be transferred up to 40m, and 1080p HDMI video sources up to a distance of 70m in a point to point configuration. One 'carrier-wave' IR sensor and one IR emitter are included in the kit and bi-directional IR pass through is supported.

Both transmitter and receiver have three LEDs on the front panel to indicate power, HDMI sync, and RJ45 sync status. Rear panels have locking 5V DC power supply connections, RJ45 link, HDMI connection (input on transmitter, output on receiver), and two 3.5mm jack sockets for infra red hardware.

Additional receivers can be purchased in the form of 500451-RX

Dimensions: 112 x 76 x 25 (HxWxD) mm. Weight: 0.6kg.

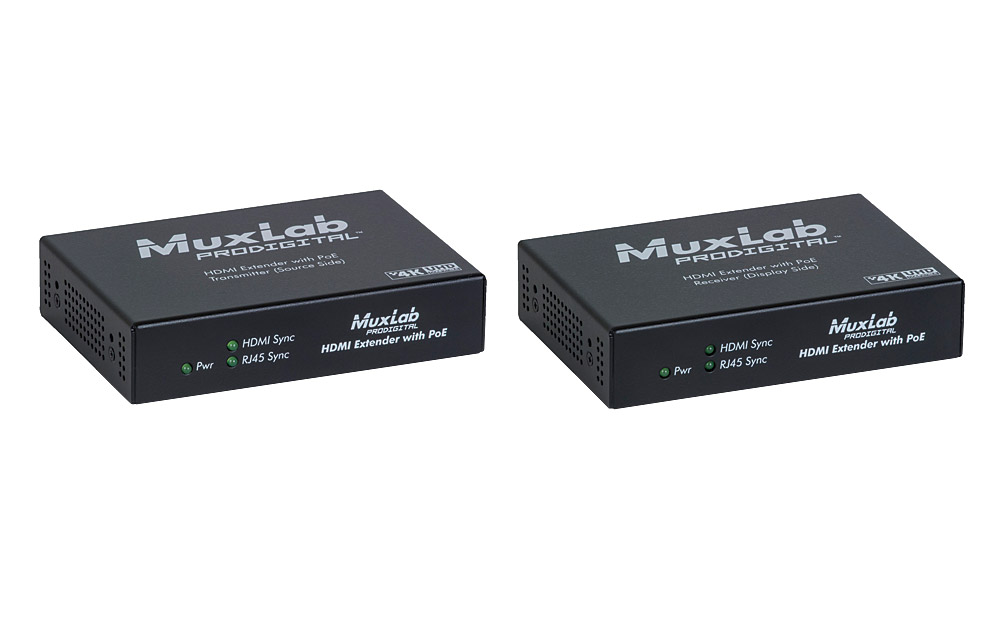

500451-POE Cat5e/6, 40/70m reach

This has the same properties as the 500451 kit however in addition both transmitter and receiver support POE and POC power. The transmitter and receiver in this kit are compatible with 500451 hardware.

Additional receivers in the form of 500451-POE-RX are available as an option.

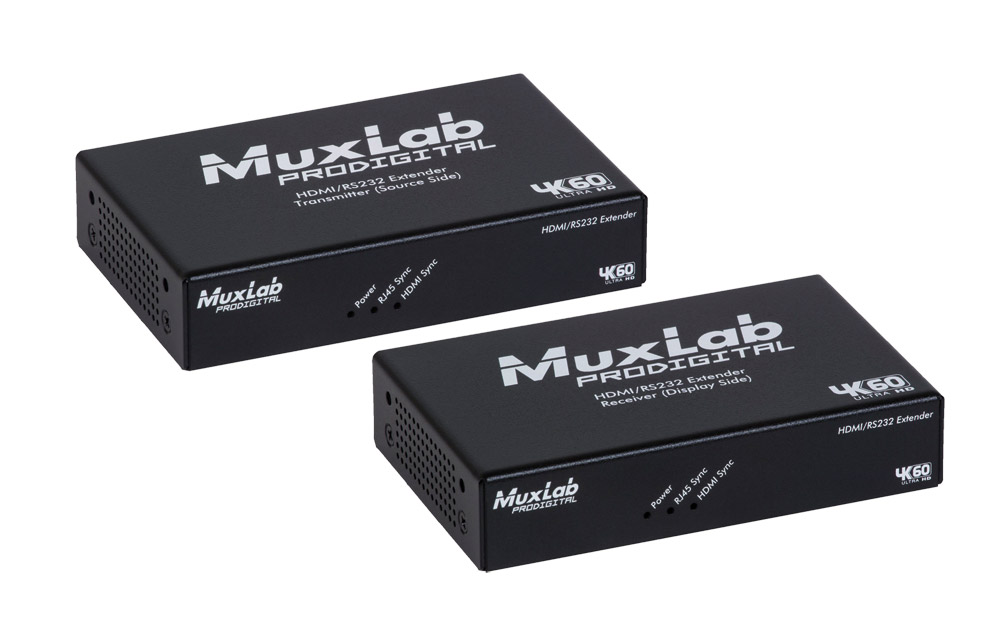

500459 HDMI/RS232, Cat5e/6, 40/70m reach

This HDMI/RS232 extender kit allows the transfer of 4K, 60Hz up to a distance of 40m, or 70m for 1080p resolution via a single unshielded twisted pair Cat5e/6 cable. 4K signals are supported with resolutions of 24/25/30/60Hz, as well as full 3D support. The kit consists of one transmitter, one receiver, one IR emitter, one IR sensor, and a single power supply - both receiver and transmitter support POC therefore the TX can power the RX or vice versa. HDCP 2.2 compliancy with RS232 and bi-directional infrared pass-through.

The front panel hosts a blue power status LED, RJ45 sync status LED, and HDMI sync status LED. The rear panel hosts all I/O connectivity including 2.1mm locking 12V DC power supply input, RJ45 link connection, 3.5mm jack sockets for IR sensor and IR emitter, 3-pin terminal connector for RS232 remote, and HDMI connection. A single DIP switch allows the user to switch between 'Service' (for firmware update mode) and 'On' (for normal operation) states. Both transmitter and receiver have the same connections with the exception of the HDMI connection which is an output on the receiver and input on the transmitter.

Dimensions: 120 x 73 x 25 (WxDxH) mm. Weight: 0.79kg.

500458-ARC HDMI/RS232, Cat5e/6, 70/100m reach

This HDMI/RS232 extender kit with ARC, HDBT and UHD-4K has been designed to transfer HDMI signals to a maximum of 100m, at 4K, 24/25/30Hz (4:4:4) or 4K, 60Hz (4:2:0), or 1080p resolution to a maximum of 100m via single UTP Cat5e/6 cable.

The benefit of this kit, which includes one receiver, one transmitter, one IR sensor, one IR emitter and two 5V DC power supplies, is the inclusion of audio return channel (ARC) which allows the receiver to return an audio signal from a device such as smart TV back to the transmitter and in turn output to an external audio system. This ARC signal can be sourced via the HDMI or TosLink input of the receiver.

The 500458 supports HDR and is HDCP 2.2 compliant as well as offering RS232 remote control and bi-directional infrared pass through.

The front panel hosts green LEDs to signify power status, RJ45 sync status, and HDMI sync status, along with a TosLink connection for ARC audio out (transmitter) or audio in (receiver). The rear panel hosts all other I/O connectivity including 2.1mm locking 5V DC power supply input, RJ45 link connection, 3.5mm jack sockets for IR sensor and IR emitter, serial connection for RS232 remote and HDMI connection. Both transmitter and receiver have the same connections with the exception of the HDMI connection which is an output on the receiver and input on the transmitter.

Dimensions: 112 x 76 x 25 (WxDxH) mm. Weight: 0.6kg.

  Description Price £
ex. VAT
Add to basket
Show carriage
MUXLAB 500040-42PK VIDEO EXTENDER KIT VGA balun, over Cat5E/6, 107m reach   Stock code: 28-7047
Please login for stock availability and lead times.
£110.40
MUXLAB 500700 VIDEO EXTENDER KIT 3G-SDI over Cat5E/6, 100/120m reach   Stock code: 89-0921
Please login for stock availability and lead times.
£741.00
MUXLAB 500702 VIDEO EXTENDER KIT 3G-SDI over Cat5E/6, Longreach, 150m reach   Stock code: 89-0922
Please login for stock availability and lead times.
£885.00
MUXLAB 500715 VIDEO EXTENDER KIT 3G-SDI over Cat5E/6, to HDMI, 100/122m reach   Stock code: 89-0923
Please login for stock availability and lead times.
£591.00
MUXLAB 500716 VIDEO EXTENDER KIT 3G-SDI over Cat5E/6, to HDMI, Longreach, 150m reach   Stock code: 89-0924
Please login for stock availability and lead times.
£709.00
MUXLAB 500730 VIDEO EXTENDER 6G-SDI over Cat5e/6, with power to transmitter, 100m reach   Stock code: 89-0929
Please login for stock availability and lead times.
£1,720.00
MUXLAB 500733 VIDEO EXTENDER 6G-SDI over Cat5e/6, PoE, 150m reach   Stock code: 89-0930
Please login for stock availability and lead times.
£1,810.00
MUXLAB 500450 HDMI EXTENDER KIT PLUS Over Cat5e/6, 100m reach point to point, 4K   Stock code: 89-0961
Please login for stock availability and lead times.
£377.70
MUXLAB 500409 HDMI EXTENDER KIT Over Cat6a/7, 30m reach point to point, 4K/60   Stock code: 89-0973
Please login for stock availability and lead times.
£135.00
MUXLAB 500451 HDMI EXTENDER KIT Over Cat5e/6, 40/70m reach point to point, 4K/1080p   Stock code: 89-0962
Please login for stock availability and lead times.
£204.50
MUXLAB 500451-RX HDMI EXTENDER Receiver only   Stock code: 89-0963
Please login for stock availability and lead times.
£102.20
MUXLAB 500451-POE HDMI EXTENDER KIT Over Cat5e/6, 40/70m reach point to point, 4K/1080p, PoE   Stock code: 89-0964
Please login for stock availability and lead times.
£225.00
MUXLAB 500451-POE-RX HDMI EXTENDER Receiver only, PoE   Stock code: 89-0965
Please login for stock availability and lead times.
£113.10
MUXLAB 500459 HDMI/RS232 EXTENDER KIT Over Cat5e/6, 40/70m reach point to point, 4K/1080p   Stock code: 89-0966
Please login for stock availability and lead times.
£320.40
MUXLAB 500458-ARC HDMI/RS232 EXTENDER KIT Over Cat5e/6, 70/100m reach point to point, 4K/1080p   Stock code: 89-0967
Please login for stock availability and lead times.
£395.40
