NEAL DIGITAL INTERVIEW RECORDERS - Portable

6 items

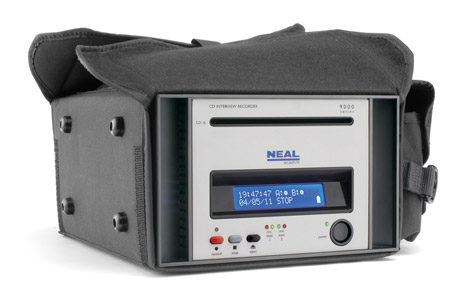

NEAL 9121P PORTABLE SINGLE CD INTERVIEW RECORDER With microphones
NEAL 9121P PORTABLE SINGLE CD INTERVIEW RECORDER With microphonesNEAL 9221P PORTABLE DUAL CD INTERVIEW RECORDER With microphonesNEAL 9321P PORTABLE TRIPLE CD INTERVIEW RECORDER With microphonesNEAL Boundary layer microphone for use with portable 9000 series recorders (5 metre cable)Flight case for NEAL 9321P/9221P

A range of portable digital audio interview recorders, manufactured in accordance with the requirements of recording interviews conducted under the Police and Criminal Evidence (PACE) Act code of practice “E”. For applications where interviews are to be conducted in diverse locations.

Fully portable design available in 1, 2 and 3 Disc models providing simultaneous and identical CD recordings to international standard format.

Each model comes with an internal rechargeable battery, providing power for recording when no mains is available, also avoiding the loss of data in the event of a mains power failure during recording, allowing the discs to be finalised and ejected.

Two microphones can be connected on the rear panel via 9-Pin D-SUB connectors, with control being provided by one touch buttons on the front panel for the record, stop and eject functions. Each recording channel can be monitored by dual LED level indicators, with other functions such as date, time, elapsed time, recorder mode and battery charge level shown via a high visibility LCD screen.

Recorders are supplied complete with an integral heavy duty carry case, universal power supply, two NEAL boundary layer microphones and NEAL CD-R's (quantity dependent on the number of CD drives on the model).

Technical Specification

Recording Formats: Simultaneous CD audio, 2 channels, 16 bit PCM, 44.1kHz to Red Book Standard. (Blue Book Standard with Metadata)
Compatible Media: CD-R (700MB)
Maximum Recording Time: 77 Minutes per disk
Internal battery: Minimum recording time of approx. 2 hours on battery power. Allows discs to be finalised and ejected in the event of mains power failure
Drive Type: CD ‘slot’ drives
Controls: Record, Stop, Eject, Power On/Off
Frequency Response: 300 Hz to 12KHz ± 3dB. (Optimised for speech recording)
S/N Ratio: 60dB
THD + N: Less than 0.1%
Disc Finalisation / Eject Time: 2 minutes maximum
Microphones: Dual microphones, amplified at the capsule to ensure maximum quality and minimise interference. Each microphone is provided with record indicator
Display: 20 x 2 LCD status display
Display Information: Current time and date, Recorder mode (Stop, Recording, Finalising), Individual disc status (“W” for recording; “F” for finalising, “E” for ejecting). Battery status, elapsed time
Alarm: Audible and Visual alarms
Eject/Power Interlock: Eject and power do not operate during record thus preventing inadvertent use
Alarm Conditions: No audio channel 1 or channel 2, faulty disc A or B or C, prerecorded disc A or B or C, incorrect disc format A or B or C, low disc A or B or C, end of disc A or B or C. Low battery
Recording Status Checks: CD drives feature individual Status checks for - disc writing (A, B and C) - increasing file size to verify successful recording
Low Media Alarm: Two minutes remaining on disc (A or B or C)
Data Security: No audio is retained to prevent unauthorised access once discs are finalised and unit is powered down. Audio is buffered in RAM and the operating system is held in flash memory. Hard disc drives are not used
Metadata: XML files store details of each recording on CD (time, date and recorder serial number)
Integral Carrying Case: Provision for recording media, power supply and microphones. Carrying handle and shoulder strap
Power Supply: Universal power supply 100V-240V 50 - 60Hz. and can be operated world wide
Mains Current Consumption: 0.5A maximum
Dimensions: 220mm (W) x 285mm (D) x 134mm (H)
Weight: 4.4kg including carrying case, mains power supply, internal battery and two microphones
Accessories
29-928 NEAL Boundary layer microphone for use with portable 9000 series recorders (5 metre cable)
29-929 NEAL Boundary layer microphone for use with portable 9000 series recorders (1 metre cable)
29-970 PELI hard shell case in black, custom foam ensures security of NEAL recorder, CD's and accessories. Case is fitted with roll wheels, retractable handle and pressure purge valve.
Description Price $
ex. VAT
Add to basket
Delivery
NEAL 9121P PORTABLE SINGLE CD INTERVIEW RECORDER With microphones Stock code: 29-9121P
Price on application, please call us.
POA
NEAL 9221P PORTABLE DUAL CD INTERVIEW RECORDER With microphones Stock code: 29-9221P
9 in stock
Price on application, please call us.
POA

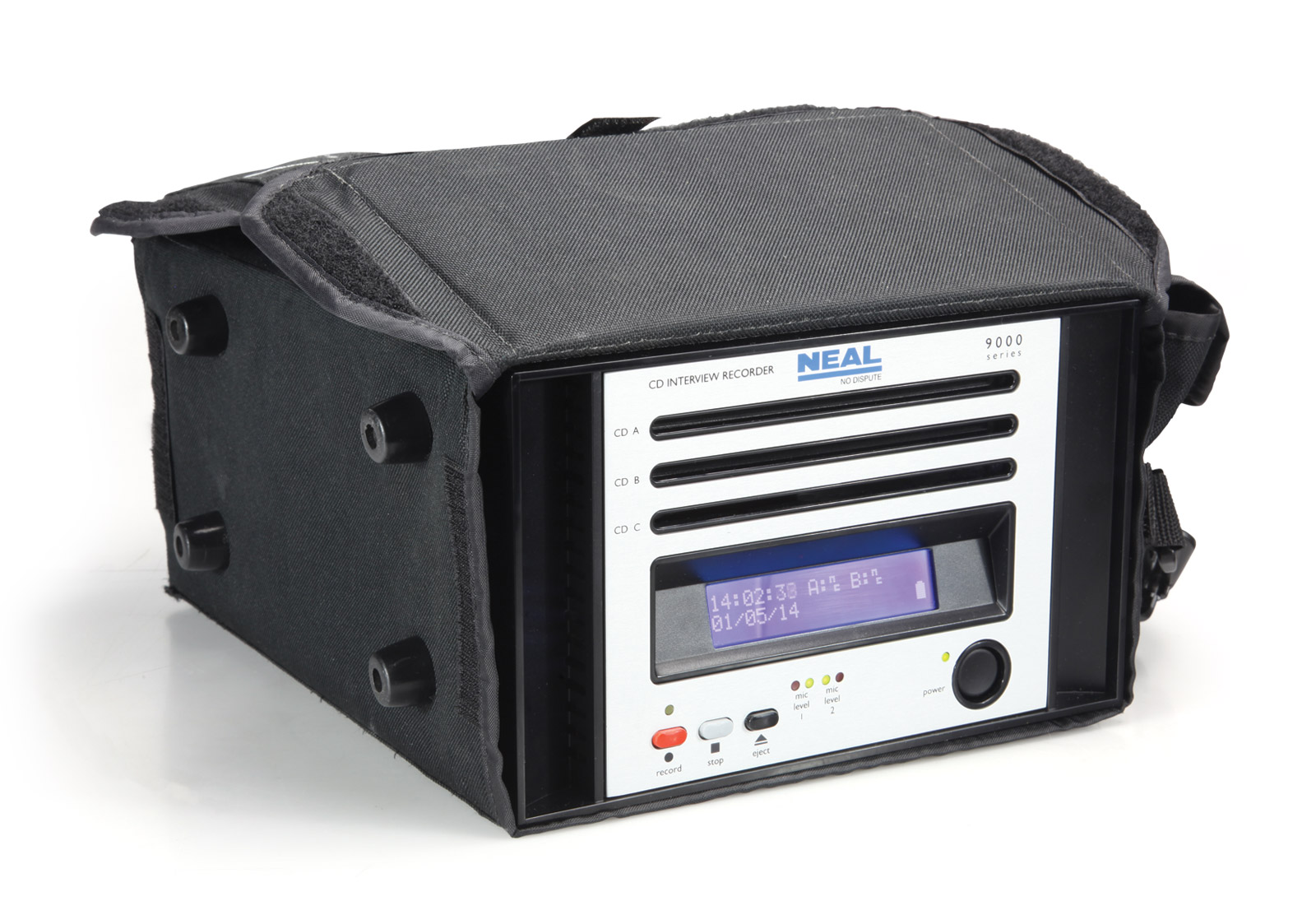

NEAL 9321P PORTABLE TRIPLE CD INTERVIEW RECORDER With microphones Stock code: 29-9321P
9 in stock
Price on application, please call us.
POA
NEAL Boundary layer microphone for use with portable 9000 series recorders (5 metre cable) Stock code: 29-928
1 in stock
Price on application, please call us.
POA
NEAL Boundary layer microphone for use with portable 9000 series recorders (1 metre cable) Stock code: 29-929
Price on application, please call us.
POA
Flight case for NEAL 9321P/9221P Stock code: 29-970
Price on application, please call us.
POA
