NEUTRIK ETHERCON CAT5E CONNECTORS Panel types

40 items
NEUTRIK NE8FAH ETHERCON Panel mounting, horizontal PCB
NEUTRIK NE8FAH ETHERCON Panel mounting, horizontal PCBNEUTRIK NE8FAV ETHERCON Panel mounting, vertical PCBNEUTRIK NE8FAV-SD ETHERCON Panel mounting, vertical PCBNEUTRIK NE8FAV-YK ETHERCON Panel mounting, Krone IDC terminationNEUTRIK NE8FBH ETHERCON Panel mounting, horizontal PCBNEUTRIK NE8FBH-S ETHERCON Panel mounting, horizontal PCB, shieldedNEUTRIK NE8FBH-LED ETHERCON Panel mounting, horizontal PCB, LEDsNEUTRIK NE8FBV ETHERCON Panel mounting, vertical PCB+8NEUTRIK NE8FDH-C5E ETHERCON Panel mounting, horizontal PCB, Cat5E receptacleNEUTRIK NE8FDV ETHERCON Panel mounting, vertical PCBNEUTRIK NE8FDV-YK ETHERCON Panel mounting, Krone IDC terminationNEUTRIK NE8FDV-YK-B ETHERCON Panel mnt, black, Krone IDC terminationNEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthroughNEUTRIK NE8FDP-B ETHERCON Panel mounting, black, back-to-back feedthroughNEUTRIK SE8FD ETHERCON Sealing kit for D-series typesNEUTRIK ACRF-6 XLR Escutcheon for A- and BA-series, blue

A range of ruggedized Cat5E connectors, using proven Neutrik style body-shells, cable clamping, and positive latching mechanisms. The panel connectors are integrated into the main Neutrik ranges, permitting easy mounting in Universal Series panels and other pre-punched metalwork.

The Ethercon was designed for data transfer interconnections where a more robust connector is required than the basic RJ45, and are especially suitable for location and outdoor applications, stage, studio and other commercial and industrial environments. It utilises the robust Neutrik latch rather than the delicate plastic latch on the RJ45 (which is disabled in the Ethercon application).

Panel connectors are available in Neutrik’s A, B and D series formats. The A series are plastic bodied, with optional coloured plastic escutcheons. B series are metal bodied with nickel plated finish. D series are also metal bodied with nickel plated finish, and suit Canford’s “Universal” series panels and stageboxes. Connections are for horizontal or vertical PCB mounting, or with an integrated Krone IDC block for direct wire termination. An additional screening pin is provided on PCB mounting types, which connects with metal side screens in the RJ45 mating recess. The IDC version has the same side screens, but in this case screen continuity is provided by a special metal plate that contacts securely with and over the cable screen. A “back-to-back” version is available in the D-series format, this has an RJ45 socket at the rear.

All panel-mounting connectors are supplied singly complete with mounting screws, or in bulk packs without mounting screws. Panel fastening of the A series connectors is by self-tapping screws, type PT, with thread 2.9 x 1.06 (DIN7990), stock codes 40-927 (pan head) and 40-932 (countersunk), and for B series is by M2.5 self-tapping screws with tri-rondular threads; available with countersunk (40-928, 40-929) or pan (40-931) heads. D-series format Ethercon connectors are secured via self-tapping screws much like the A series but require a longer 12mm length, stock codes 40-933 (pan head) and 40-934 (countersunk).

Ethercon comply with IEC1801 Category 5 (IDC and vertical PCB version panel connectors), shielded or unshielded, and are suitable for use with 10 Base-T and 100 Base-TX systems.

Types available:

NE8FAH A-series panel mounting, plastic shell, horizontal PCB mounting

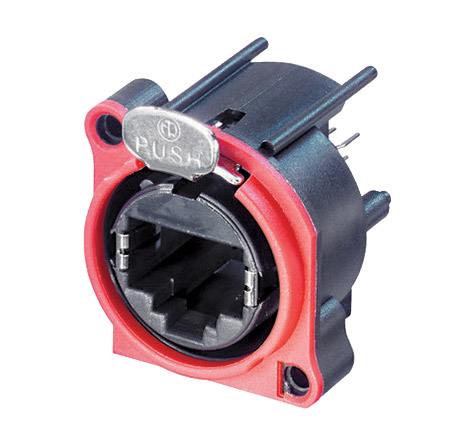

NE8FAV A-series panel mounting, plastic shell, vertical PCB mounting (18.3mm distance from PCB to front panel)
NE8FAV-C5 A-series panel mounting, plastic shell, vertical PCB mounting (24mm distance from PCB to front panel)
NE8FAV-SD A-series panel mounting, plastic shell, vertical PCB mounting, with two additional rear screw domes for fixing the connector on the PCB

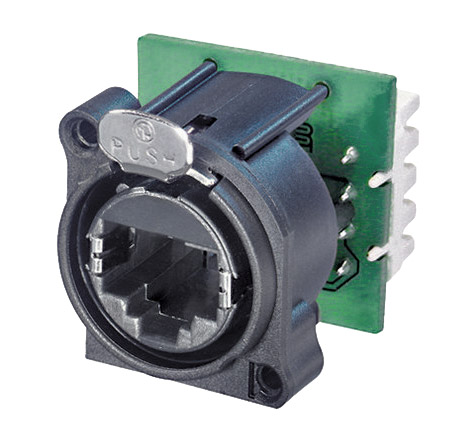

NE8FAV-YK A-series panel mounting, plastic shell, Krone IDC termination

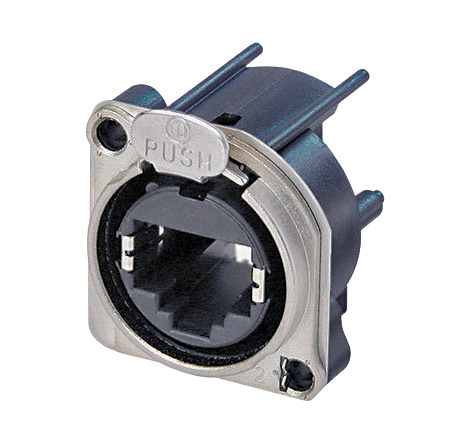

NE8FBH B-series panel mounting, metal shell, horizontal PCB mounting (18.3mm distance from PCB to front panel)
NE8FBV B-series panel mounting, metal shell, vertical PCB mounting

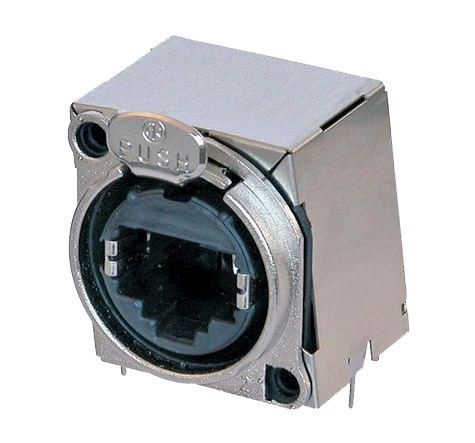

NE8FBH-S B-series panel mounting, metal shell, horizontal mounting, fully enclosed with metal shielding can

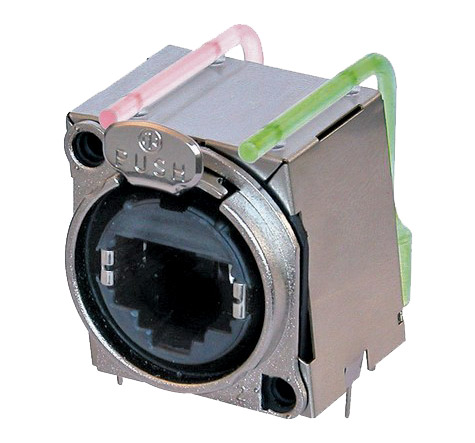

NE8FBH-LED B-series panel mounting, metal shell, horizontal mounting, fully enclosed with metal shielding can, and with light pipes around can to front panel. These are illuminated by standard 3mm LEDs mounted on the PCB (not supplied).
NE8FBH-C5-LED1-S B-series panel mounting, metal shell, horizontal mounting, with light pipes to front panel, fully enclosed with metal shielding can. These are illuminated by LEDs mounted on the PCB, mounted at a height of 0.75mm (not supplied).

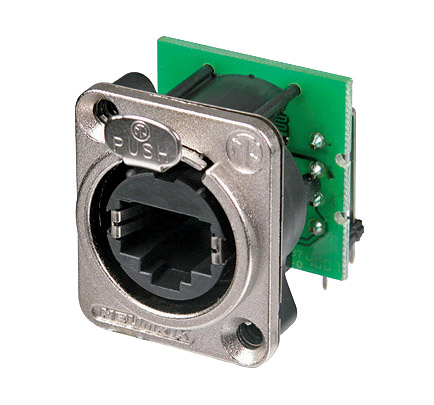

NE8FDH-C5E D-series panel mounting, metal shell, horizontal PCB. Cat5E component level compliant RJ45 receptacle
NE8FDV D-series panel mounting, metal shell, vertical PCB mounting (18.2mm distance from PCB to front panel)
NE8FDV-B D-series panel mounting, black metal shell, vertical PCB (18.2mm distance from PCB to front panel)

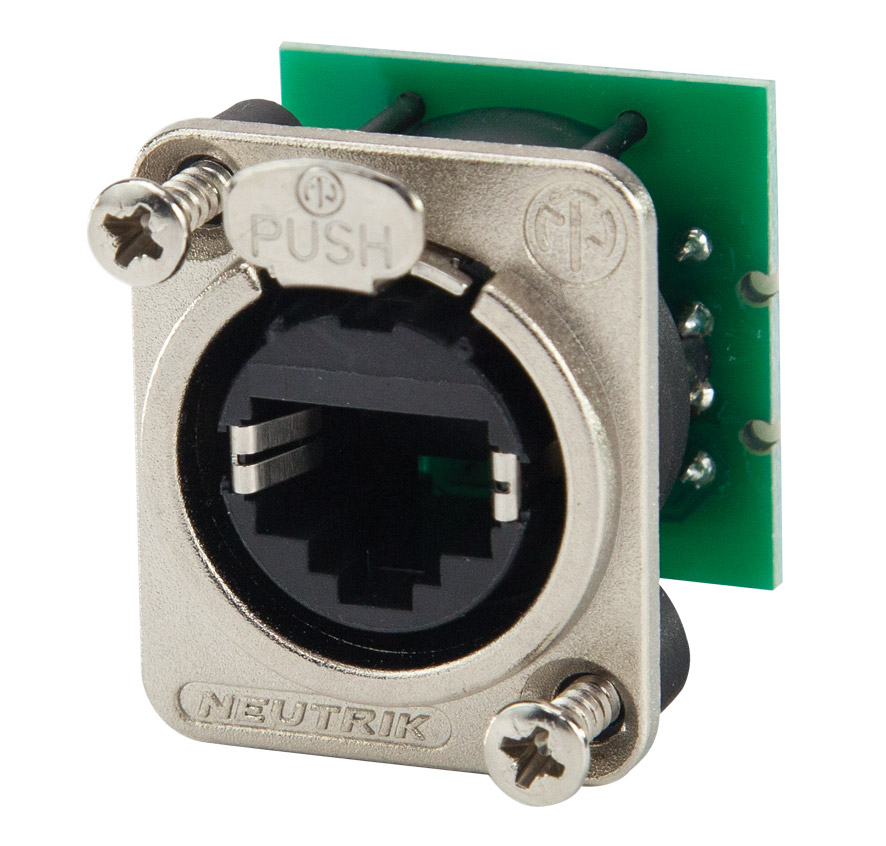

NE8FDV-YK D-series panel mounting, metal shell, Krone IDC termination
NE8FDV-YK-B D-series panel mounting, black metal shell, Krone IDC termination
NE8FDP D-series panel mounting, metal shell, back-to-back feedthrough
NE8FDP-B D-series panel mounting, black metal shell, back-to-back feedthrough
SE8FD Sealing kit for D-series Ethercon, to achieve a waterproof (to IP54) connection when mated with NE8MX-1. Comprises replacement front plate and latch plus sealing gasket
  Description Price £
ex. VAT 		Add to basket
Delivery
NEUTRIK NE8FAH ETHERCON Panel mounting, horizontal PCB Stock code: 46-511
Available in Call Ordered on demand, available in Call.
1+ £4.74
10+ £4.31
50+ £4.08
100+ £3.60
NEUTRIK NE8FAV ETHERCON Panel mounting, vertical PCB Stock code: 46-512
64 in stock Need more?
1+ £4.74
10+ £4.31
50+ £4.08
100+ £3.60
NEUTRIK NE8FAV-C5 ETHERCON Panel mounting, vertical PCB Stock code: 46-507
Available in Call Ordered on demand, available in Call.
1+ £7.52
10+ £6.84
50+ £6.47
100+ £5.72
NEUTRIK NE8FAV-YK ETHERCON Panel mounting, Krone IDC termination Stock code: 46-513
73 in stock Need more?
1+ £9.28
10+ £8.44
50+ £7.98
100+ £7.05
NEUTRIK NE8FBH ETHERCON Panel mounting, horizontal PCB Stock code: 46-514
Available in Call Ordered on demand, available in Call.
1+ £5.32
10+ £4.84
50+ £4.58
100+ £4.04
NEUTRIK NE8FBH-S ETHERCON Panel mounting, horizontal PCB, shielded Stock code: 46-516
Available in Call Ordered on demand, available in Call.
1+ £6.14
10+ £5.59
50+ £5.28
100+ £4.67
NEUTRIK NE8FBH-LED ETHERCON Panel mounting, horizontal PCB, LEDs Stock code: 46-517
15 in stock Need more?
1+ £7.44
10+ £6.77
50+ £6.40
100+ £5.65
NEUTRIK NE8FBH-C5-LED1-S ETHERCON Panel mounting, horizontal PCB, LEDs Stock code: 46-508
Available in Call Ordered on demand, available in Call.
1+ £10.00
10+ £9.10
50+ £8.60
100+ £7.60
NEUTRIK NE8FBV ETHERCON Panel mounting, vertical PCB Stock code: 46-515
Available in Call Ordered on demand, available in Call.
1+ £5.32
10+ £4.84
50+ £4.58
100+ £4.04
NEUTRIK NE8FDH-C5E ETHERCON Panel mounting, horizontal PCB, Cat5E receptacle Stock code: 46-535
4 in stock Need more?
1+ £12.04
10+ £10.96
50+ £10.35
100+ £9.15
NEUTRIK NE8FDV ETHERCON Panel mounting, vertical PCB Stock code: 46-518
70 in stock Need more?
1+ £5.54
10+ £5.04
50+ £4.76
100+ £4.21
NEUTRIK NE8FDV-B ETHERCON Panel mouning, black, vertical PCB Black Stock code: 46-536
Available in Call Ordered on demand, available in Call.
1+ £6.06
10+ £5.51
50+ £5.21
100+ £4.61
NEUTRIK NE8FDV-YK ETHERCON Panel mounting, Krone IDC termination Stock code: 46-519
111 in stock Need more?
1+ £10.16
10+ £9.25
50+ £8.74
100+ £7.72
NEUTRIK NE8FDV-YK-B ETHERCON Panel mnt, black, Krone IDC termination Black Stock code: 46-537
Expected on: 05/04/2024 Temporarily out of stock, expected on: 05/04/2024.
1+ £10.62
10+ £9.66
50+ £9.13
100+ £8.07
NEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthrough Stock code: 46-531
240 in stock Need more?
1+ £10.92
10+ £9.94
50+ £9.39
100+ £8.30
NEUTRIK NE8FDP-B ETHERCON Panel mounting, black, back-to-back feedthrough Black Stock code: 46-532
317 in stock Need more?
1+ £10.90
10+ £9.92
50+ £9.37
100+ £8.28
NEUTRIK NE8FAV-YK ETHERCON Panel mounting, Krone IDC termination (pack of 20) Stock code: 46-510
Available in Call Ordered on demand, cancellations may incur charges, available in Call.
1+ £197.40
5+ £185.50
per pack
NEUTRIK NE8FDV-YK-B-D ETHERCON Panel mnt, black, Krone IDC termination (pack of 20) Black Stock code: 46-538
Available in Call Ordered on demand, cancellations may incur charges, available in Call.
1+ £153.40
5+ £144.20
per pack
NEUTRIK NE8FDP ETHERCON Panel mounting, back-to-back feedthrough (pack of 20) Stock code: 46-533
Available in Call Ordered on demand, cancellations may incur charges, available in Call.
1+ £194.30
5+ £182.70
per pack
NEUTRIK NE8FDP-B-D ETHERCON Panel mount, blk, back-to-back feedthrough (pack of 20) Stock code: 46-534
Available in Call Ordered on demand, cancellations may incur charges, available in Call.
1+ £175.70
5+ £165.10
per pack
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, pan, black (pack of 100) Black Stock code: 40-927
32 in stock Need more?
1+ £4.44
5+ £4.17
per pack
NEUTRIK XLR FIXING SCREWS For A, AA and BA series, csk, black (pack of 100) Black Stock code: 40-932
3 in stock Need more?
1+ £4.92
5+ £4.62
per pack
NEUTRIK XLR FIXING SCREWS For B series, countersunk, nickel (pack of 100) Nickel Stock code: 40-928
Available in 4‑6 weeks Assembled to order, available in 4‑6 weeks.Need it sooner? Call us
1+ £6.32
5+ £5.94
per pack
NEUTRIK XLR FIXING SCREWS For B series, countersunk, black (pack of 100) Black Stock code: 40-929
5 in stock Need more?
1+ £4.64
5+ £4.36
per pack
NEUTRIK XLR FIXING SCREWS For B series, pan, black (pack of 100) Black Stock code: 40-931
8 in stock Need more?
1+ £9.60
5+ £9.02
per pack
NEUTRIK FIXING SCREWS For D-series Ethercon, pan, (pack of 100) Stock code: 40-933
Available in 1‑2 working days Assembled to order, available in 1‑2 working days.Need it sooner? Call us
1+ £2.48
5+ £2.33
per pack
NEUTRIK FIXING SCREWS For D-series Ethercon, csk, (pack of 100) Stock code: 40-934
8 in stock Need more?
1+ £3.28
5+ £3.08
per pack

Discontinued products
NEUTRIK NE8FAV-SD ETHERCON Panel mounting, vertical PCB Stock code: 46-540
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK SE8FD ETHERCON Sealing kit for D-series types Stock code: 46-530
No longer manufactured. See the product page for suggested alternatives.
NEUTRIK ACRF-0 XLR Escutcheon for A- and BA-series, black Black Stock code: 40-890
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-1 XLR Escutcheon for A- and BA-series, brown Brown Stock code: 40-891
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-2 XLR Escutcheon for A- and BA-series, red Red Stock code: 40-892
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-3 XLR Escutcheon for A- and BA-series, orange Orange Stock code: 40-893
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-4 XLR Escutcheon for A- and BA-series, yellow Yellow Stock code: 40-894
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-5 XLR Escutcheon for A- and BA-series, green Green Stock code: 40-895
Discontinued. Please contact Technical Support for alternatives.

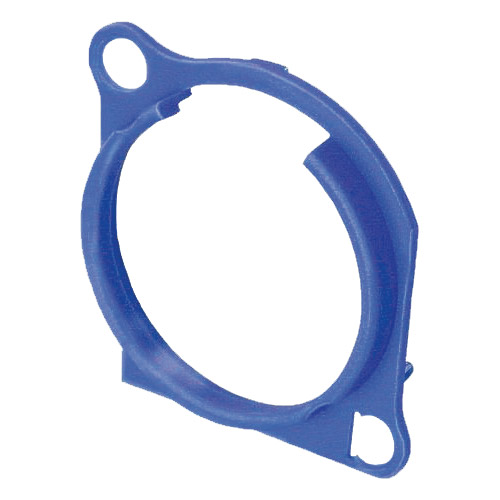

NEUTRIK ACRF-6 XLR Escutcheon for A- and BA-series, blue Blue Stock code: 40-896
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-7 XLR Escutcheon for A- and BA-series, violet Violet Stock code: 40-897
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-8 XLR Escutcheon for A- and BA-series, grey Grey Stock code: 40-898
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ACRF-9 XLR Escutcheon for A- and BA-series, white White Stock code: 40-899
Discontinued. Please contact Technical Support for alternatives.
NEUTRIK ETHERCON NE8FDV-YK Panel mounting, Krone termination (pack of 20) Stock code: 46-520
Discontinued. See the product page for suggested alternatives.
