These are based on two Canford custom moulded plastic components, and provide connectors which use the same (24mm diameter) panel mountings as the Neutrik ‘D’series XLR connectors, jack sockets and loudspeaker connectors.
Available in two mounting versions, Plain 3.2mm diameter mounting holes or, on flush mounting black types only, M3 metal threaded inserts, permitting a faster assembly as shake-proofs and nuts are not required.
Available in black or white, with BNC (solder connection), and BNC double-sided (“back-to-back”) in 50 ohm, 75 ohm, 75ohm 3G HDTV and 75ohm 12G 4K UHDTV versions.

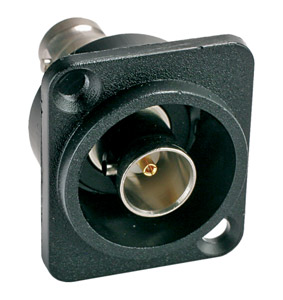

Available in black, these provide a BNC double-sided connector mounted in a recessed position, so that the front of the BNC is level with the front surface of the moulding. There is enough space for BNC plugs to be latched and unlatched by hand without need for special tools. Available in 50 ohm, 75 ohm, 75ohm 3G HDTV and 75ohm 12G 4K UHDTV versions. The 12G 4K UHDTV type is also available with tapped mounting holes. The solder version (49-199) accepts a centre conductor with diameter of no larger than 0.8mm.
