These converters convert VGA or DisplayPort to HDMI and HDMI to VGA, depending on model, useful in such environments as corporate boardrooms, classrooms, AV rooms, videoconferencing.
The products below are fixed in I/O compatibility.
This is a VGA to HDMI converter that also scales 'many PC resolutions' to HD output. Video resolutions supported include VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA, 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p, with an audio bandwidth of 20Hz - 20kHz. The analogue audio signal is converted to digital and output via the HDMI output as 2-channel LPCM. This product is both HDMI 1.3 and DVI 1.0 compliant.
The front of the 500149 converter has a mini-USB service port for firmware updates, HDMI output, and two push buttons for auto adjust and resolution settings. The rear of the unit houses a locking 2.1mm power supply input for use with the included 5V DC power supply, one HD-15 type VGA input and one 3.5mm female jack audio input. There is also a green LED that indicates power on status.
Dimensions: 25 x 102 x 102 (HxWxD) mm. Weight: 0.65kg. Power consumption: 4.6W.
500501 Display port to HDMI
This active inline converter converts a DisplayPort source signal to an HDMI output. It supports 4K (3840 x 2160) at 24/25/30Hz. The converter has a single male DisplayPort connector to connect to a source device such as a laptop and one female HDMI type A connector to connect to a destination such as a TV. No external power supply is required.
Dimensions: 12 x 45 x 45 (HxWxD) mm. Weight: 60g.
This inline converter converts an HDMI 1.3 source signal to an analogue VGA/RGB output. Supports 1080p, 1920 x 1200 deep colour. The converter has one male HDMI type A connector to connect to a source such as a laptop, and a single HD15F female D-sub connector to connect to a destination device such as a VGA monitor. No external power supply is required.
Dimensions: 15 x 45 x 190 (HxWxD) mm. Weight: 91g.
500717 3G-SDI to HDMI
500717 has been designed for video production, broadcast and medical imaging display, and allows the user to convert 3G-SDI input signals to HDMI output. SDI inputs supported include SD-SDI, HD-SDI, and 3G-SDI. The required 5V DC power supply is included. The metal manufactured casing is wall mountable via pre-drilled holes in the extrusion.
Dimensions: 79 x 84 x 27 (DxWxH) mm. Weight: 0.78kg

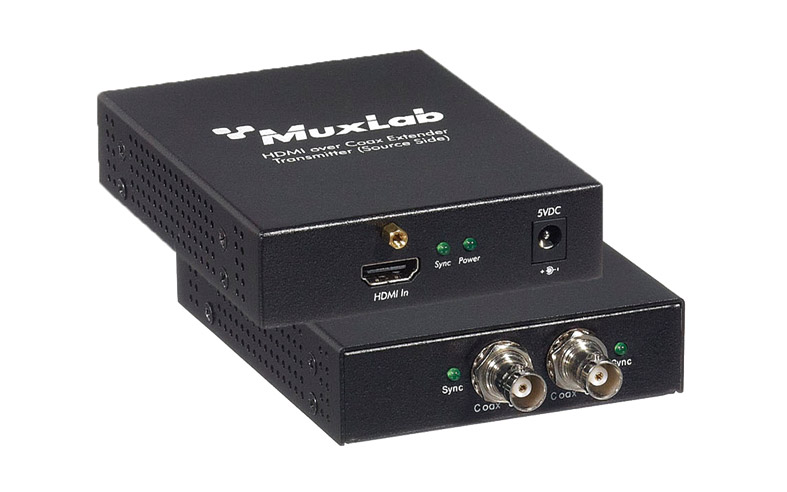

500465-TX HDMI to SDI

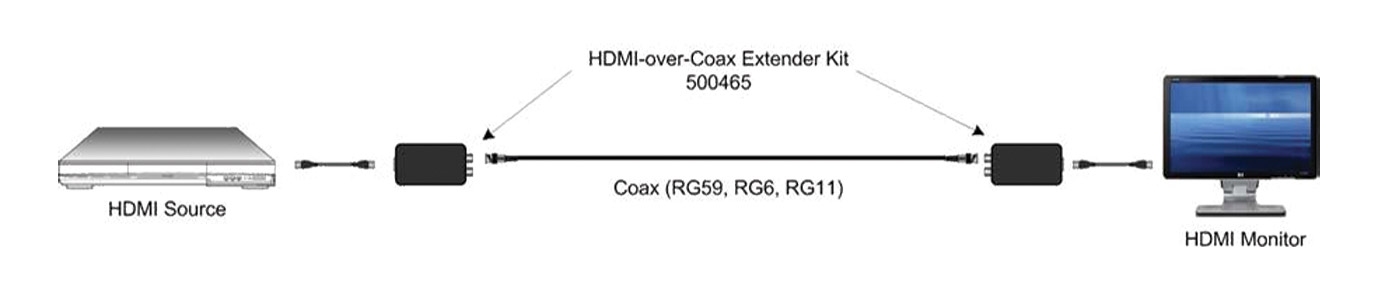

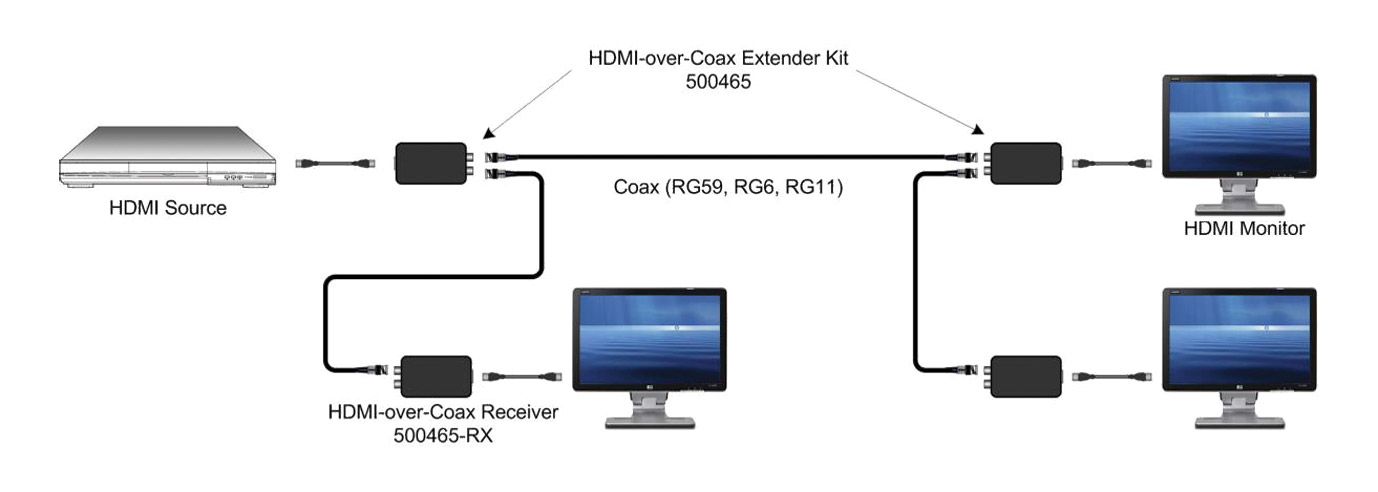

Although designed to work with 500465-RX as a HDMI over Coax extension kit, 500465-TX can be used alone to conver HDMI to SDI. Used in this way the unit simply offers a HDMI input and two Coax connections, one for output and one to cascade. Supported resolutions include 480i, 576i, 720p, 1080i, 1080p/23.98/24/25/29.9/30/50/59.94/60, and HDMI 1.3a protocol.
Dimensions: 12 x 9 x 3 (DxWxH) mm. Weight: 0.59kg
