AUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silver

Stock code
93-2189
Brand
AudioPressBox
Model number
  • APB-P008 IW-EX
Colour
  • SilverSilver
AUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silver
AUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silverAUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silverAUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silverAUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silverAUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silverAUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silverAUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silver

AUDIOPRESSBOX CONFERENCE SPLITTERS - Expanders

Press splitters are used to avoid the unsightly clutter that results at events such as press conferences, when every broadcasting organisation present tries to erect a microphone directly in front of the speaker, precisely where the cameramen would rather they did not. The splitter takes a small number of inputs from microphones or the local mixer and distributes the signal to a large number of outputs for use by the media. AudioPressBox offer a comprehensive range of active and passive types in stage box, floor-box, desktop, rack and wall mounting formats as well as portable, cased, splitters and kits.

For a very limited number of broadcasters and journalists it may be possible to provide a set of outputs using multiple microphone splitters. However, this technique quickly increases the load on a microphone to the point where the signal quality is affected. A dedicated conference splitter will reduce clutter, be more reliable and prevent inter-action between the connections made by the different members of the media. Alternative terms for press splitter include 'conference splitter', 'presidential bridge', 'press box', 'multi box' and 'press distribution amplifier'.

Stagebox Expanders

The stagebox types are built in steel boxes, designed to be placed on the floor. On the upper surface there are a number of XLR outputs with adjacent microphone-line level switches where applicable. Two XLR connectors provide input and loop out.

In-Wall Expanders

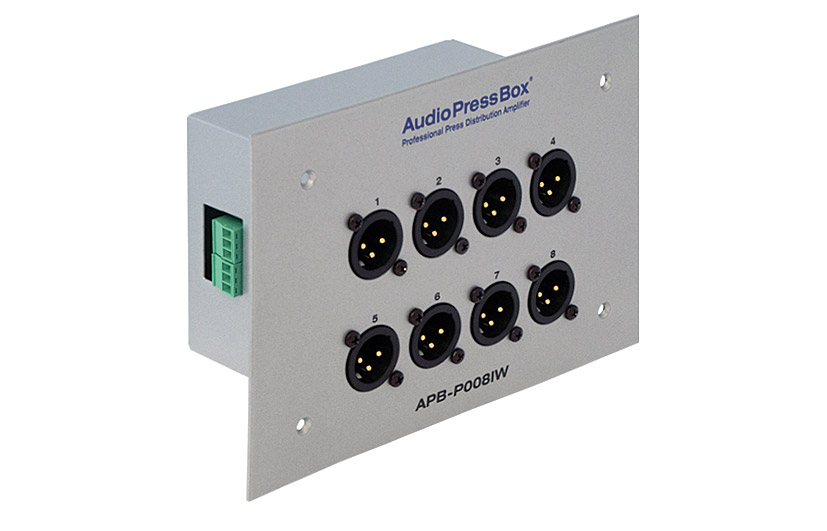

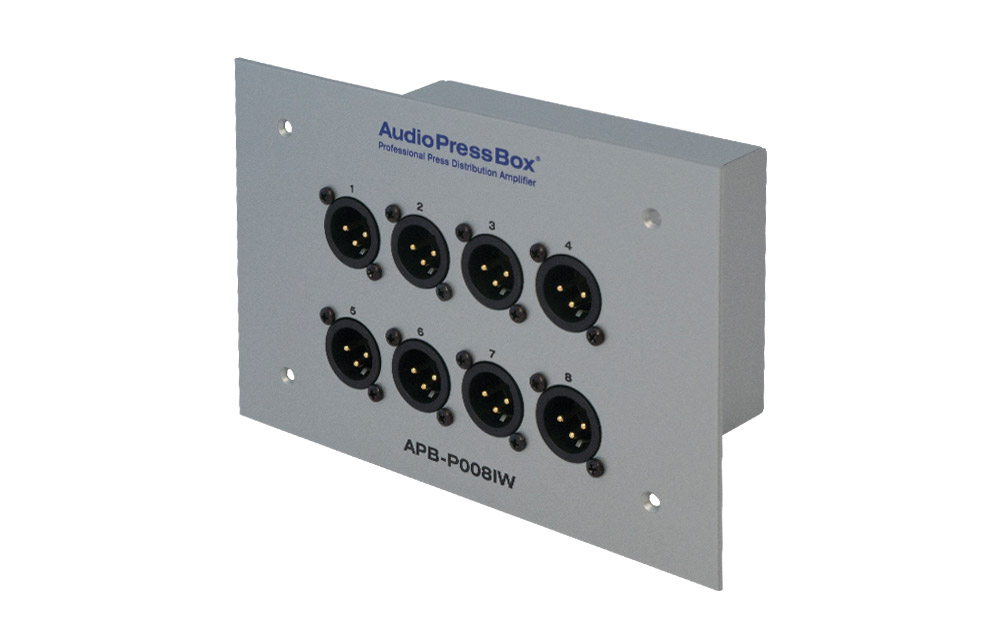

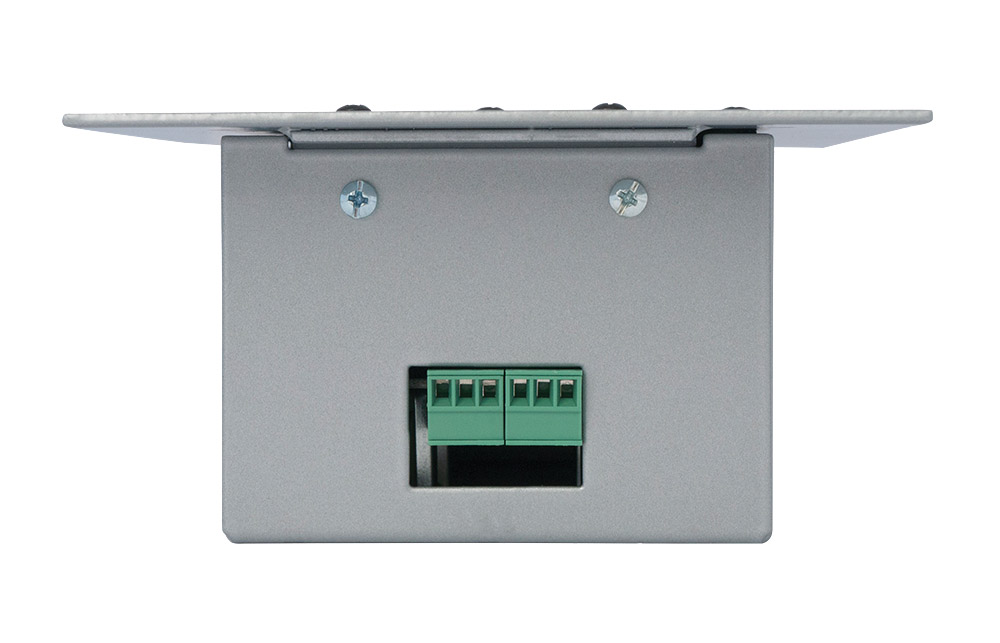

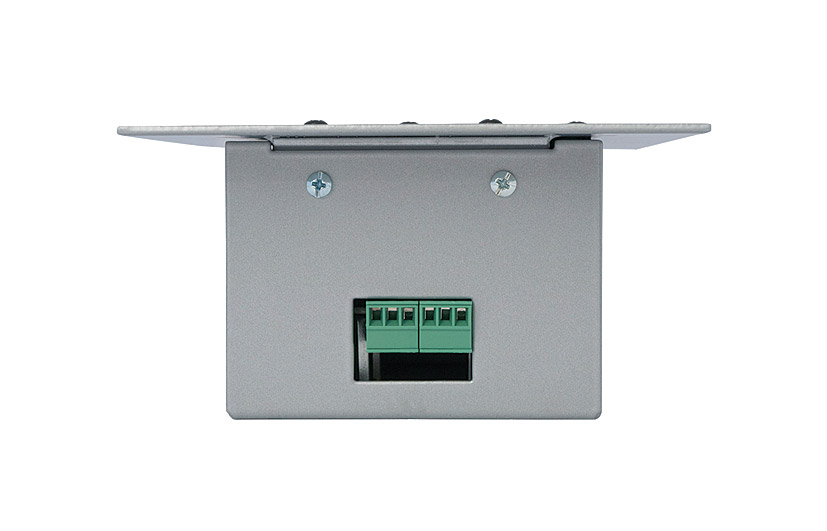

These are supplied with a flush-mounting box, dimensions 153x98x70mm, to fit into the wall. Individual XLR outputs, with mic/line switches where included, are on the outer plate. Two 3-pin Phoenix style connectors on the side provide either input and input-link or inputs A and B.

On-Wall Expanders

On-wall types are built in a surface-fixing, metal box. Individual XLR outputs, with mic/line switches where included, are on the outer plate. Two 3-pin Phoenix style connectors provide either input and input-link or inputs A and B.

Floor-Box Expanders

The floor-box type is a metal tray, designed to be let into the floor. Individual XLR outputs with mic/line switches are on a sloping panel. Two 3-pin Phoenix style connectors provide inputs A and B.

Rack-mounting Expanders

The APB-024 R-EX is a 2U high, rack mounting case with individual XLR outputs and mic/line switches on the front. The rear has two pairs of XLR connectors providing input and loop-out for A and B inputs.

Features:
APB-008 SB-EX APB-P008 OW-EX APB-008 OW-EX APB-P008 IW-EX APB-008 IW-EX APB-008 FB-EX APB-024 R-EX
Type: Stage box On-wall On-wall In wall In wall Floor box 2U rack
Inputs: 1 1 A/B 1 A/B A/B A/B
Input type: Drive unit 1 Mixer 2 Drive unit 1 Mixer 2 Drive unit 1 Drive unit 1 Drive unit 1
Mic/line outputs: 8 8 8 8 24
Microphone outputs: 8 8

[Note (1): These models may driven by a mixer with low output impedance. (2): These models must be fed by a drive unit, since a mixer is unlikely to have sufficient output.]

Accessory Cables

The RC 3.5 -1 cable is intended for use between the mic or mic/line outputs of the splitters and expander units and recording equipment with 3.5mm jack inputs, microphone or line level, regardless of the stereo or mono configuration. The 3-pin female XLR contains electronic circuitry to provide level and impedance matching and DC blocking. The cable is 1.5m long.

The RC 3.5 - 8 is an eight-way cable which provides eight channels of the same functionality and is 3 metres long. It consists of an eight pair multi-pair cable, broken out into eight tails at each end.

  Description Price (£) Add to basket
Show carriage
AUDIOPRESSBOX APB-024 R-EX SPLITTER EXPANDER 2U, 2x drive in, 2x 12x mic/line out   Stock code: 93-2197
Please login for stock availability and lead times.
£1,310.00
AUDIOPRESSBOX APB-008 SB-EX SPLITTER EXPANDER Passive, stagebox, 1x drive in, 8x mic/line out   Stock code: 93-2178
Please login for stock availability and lead times.
£525.00
AUDIOPRESSBOX APB-008 FB-EX SPLITTER EXPANDER Floorbox 2x drive in, 2x 4x mic/line out, white White Stock code: 93-2194
Please login for stock availability and lead times.
£613.00
AUDIOPRESSBOX APB-008 FB-EX SPLITTER EXPANDER Floorbox 2x drive in, 2x 4x mic/line out, silver Silver Stock code: 93-2196
Please login for stock availability and lead times.
£613.00
AUDIOPRESSBOX APB-008 IW-EX SPLITTER EXPANDER In-wall, 2x drive in, 2x 4x mic/line out, white White Stock code: 93-2191
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-008 IW-EX SPLITTER EXPANDER In-wall, 2x drive in, 2x 4x mic/line out, black Black Stock code: 93-2192
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-008 IW-EX SPLITTER EXPANDER In-wall, 2x drive in, 2x 4x mic/line out, silver Silver Stock code: 93-2193
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-008 OW-EX SPLITTER EXPANDER On-wall, 2x drive in, 2x 4x mic/line out, white White Stock code: 93-2184
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-008 OW-EX SPLITTER EXPANDER On-wall, 2x drive in, 2x 4x mic/line out, black Black Stock code: 93-2185
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-008 OW-EX SPLITTER EXPANDER On-wall, 2x drive in, 2x 4x mic/line out, silver Silver Stock code: 93-2186
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, white White Stock code: 93-2187
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, black Black Stock code: 93-2188
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-P008 IW-EX SPLITTER EXPANDER In-wall, 2x line in, 8x mic out, silver Silver Stock code: 93-2189
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-P008 OW-EX SPLITTER EXPANDER On-wall, 1x line in, 8x mic out, white White Stock code: 93-2181
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-P008 OW-EX SPLITTER EXPANDER On-wall, 1x line in, 8x mic out, black Black Stock code: 93-2182
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX APB-P008 OW-EX SPLITTER EXPANDER On-wall, 1x line in, 8x mic out, silver Silver Stock code: 93-2183
Please login for stock availability and lead times.
£481.60
AUDIOPRESSBOX RC 3.5-1 CABLE Female 3-pin XLR to 3.5 mm 3-pole jack with matching, 1.5 metres   Stock code: 93-2145
Please login for stock availability and lead times.
£58.38
AUDIOPRESSBOX RC 3.5-8 CABLE 8-way, 3-pin female XLR to 3.5 mm 3-pole jack, with matching, 3 metres   Stock code: 93-2146
Please login for stock availability and lead times.
£350.30

Order Show delivery

£481.60
each (ex. VAT)
Ordered on demand, cancellations may incur charges, available in 2‑3 weeks. Need it sooner? Call us
RoHS Status Compliant
